Bosch GIC5-27C

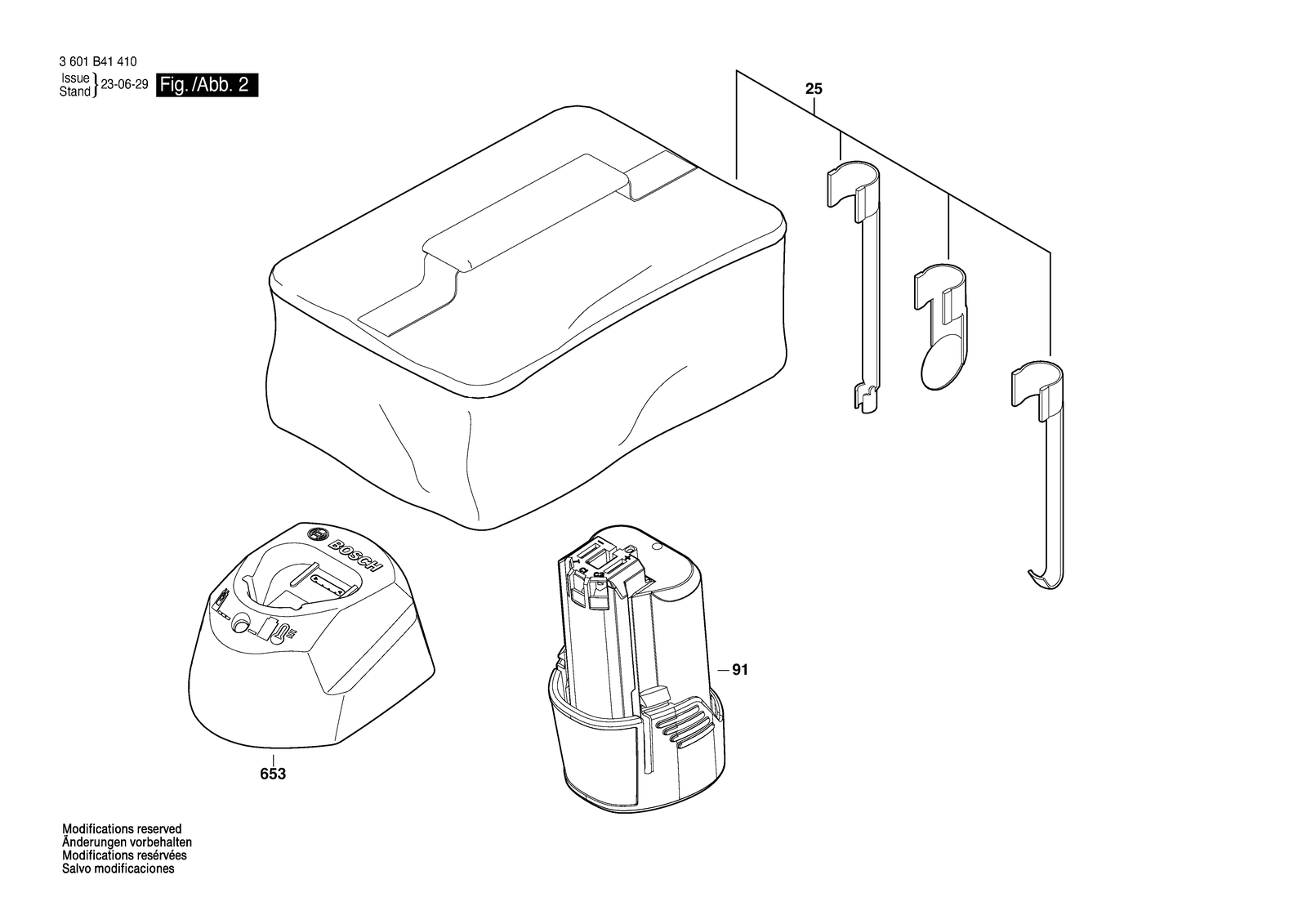

Bosch GIC5-27C endoscope: exploded parts diagram, 2 sheets, 25 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GIC5-27C: 25 positions on 2 sheets
Bosch GIC5-27C parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PC1272 | Cover |
| 10 | 1619PC0069 | Housing |
| 11 | 1619PC0070 | Screw |
| 12 | 1619PC0511 | Type Label |
| 14 | 1619PC0073 | Cover |
| 15 | 1619PC0074 | Printed-Board Assembly |
| 16 | 1600A015X5 | Cable Connector |
| 17 | 1619PC0076 | Gasket |
| 18 | 1619PC0077 | Gasket |
| 19 | 1619PC0078 | Rubber Plug |
| 2 | 1619PC0061 | Keypad |
| 20 | 1619PC0079 | Housing |
| 23 | 1619PC0508 | Cable |
| 24 | 1600A02R6R | Imager module Ø 8.3MM / 3.5M |
| 24 | 1600A02Z65 | Imager module Zweifachkamera 1.5M |
| 24 | 1600A02Z66 | Imager module Ø 3.9MM / 1.5M |
| 25 | 1619PC1560 | Accessories |
| 4 | 1619PC0063 | Display |
| 5 | 1619PC0064 | Holder |
| 6 | 1619PC0065 | Screw |
| 653 | 2607226193 | Charger Usa/can GAL 12V-20 |
| 7 | 1619PC0066 | Printed-Board Assembly |
| 8 | 1619PC0067 | Clip |
| 9 | 1619PC0068 | Rubber Plug |
| 91 | 1607A350C8 | Battery Pack BAT 414 10,8/12V 2,0AH |
