Bosch GIC 12V-5-27 C
Bosch GIC 12V-5-27 C endoscope: exploded parts diagram, 2 sheets, 30 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GIC 12V-5-27 C: 30 positions on 2 sheets

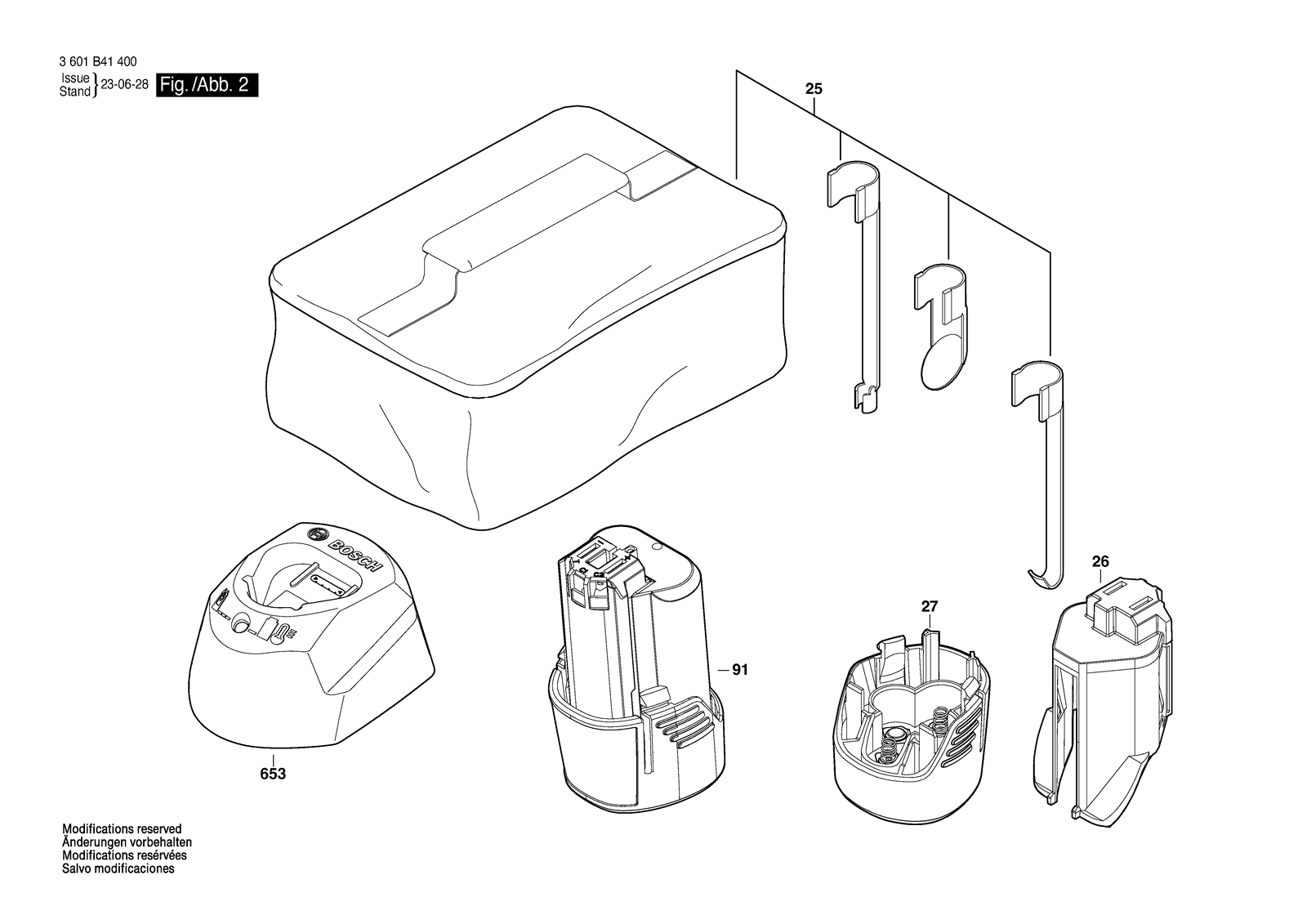

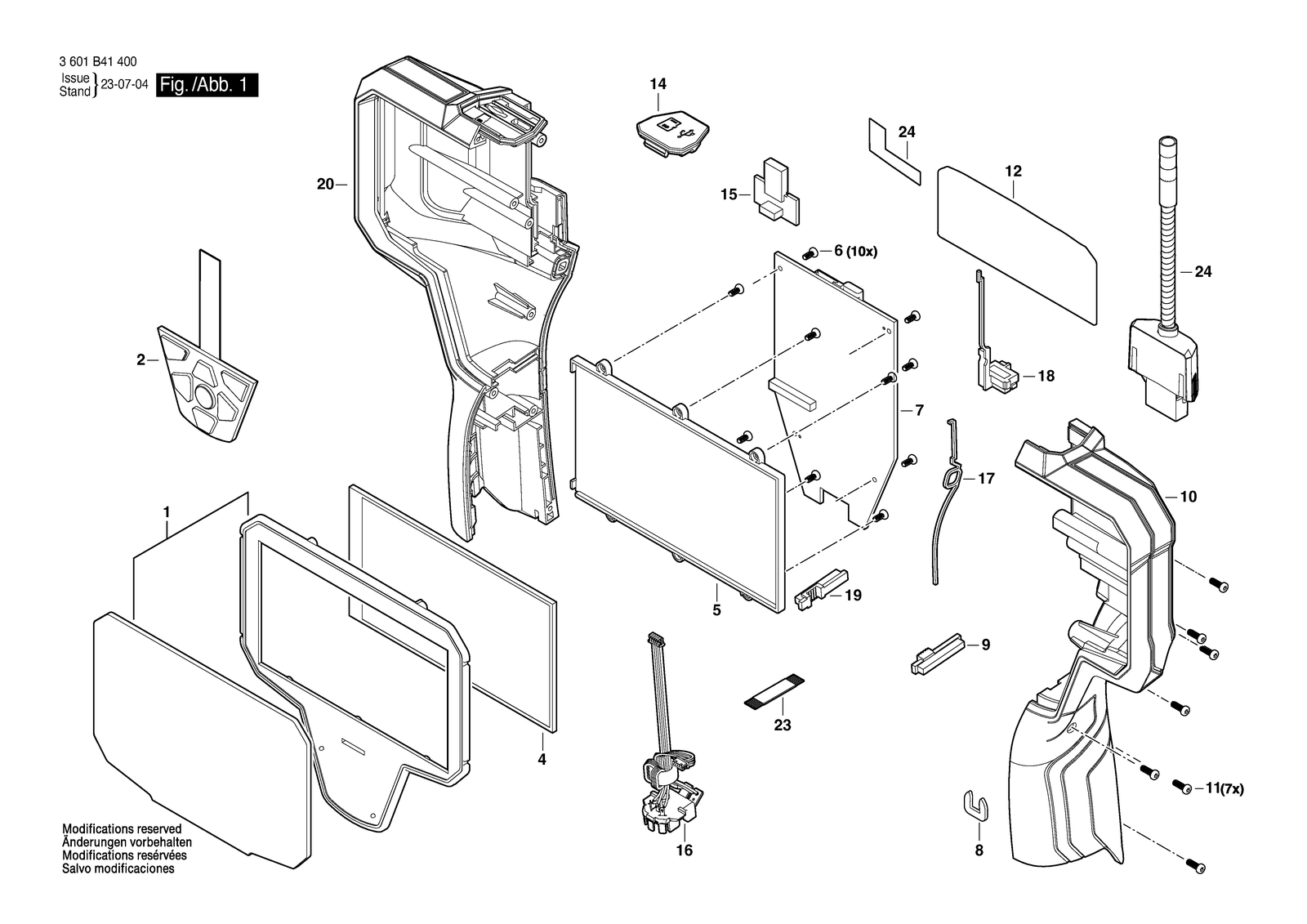

Bosch GIC 12V-5-27 C parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PC1272 | Cover |
| 10 | 1619PC0069 | Housing |
| 11 | 1619PC0070 | Screw |
| 12 | 1619PC0071 | Type Label |
| 12 | 1619PC0114 | Type Label |
| 14 | 1619PC0073 | Cover |
| 15 | 1619PC0074 | Printed-Board Assembly |
| 16 | 1600A015X5 | Cable Connector |
| 17 | 1619PC0076 | Gasket |
| 18 | 1619PC0077 | Gasket |
| 19 | 1619PC0078 | Rubber Plug |
| 2 | 1619PC0061 | Keypad |
| 20 | 1619PC0079 | Housing |
| 23 | 1619PC0508 | Cable |
| 24 | 1600A02R6N | Imager module |
| 24 | 1600A02R6R | Imager module Ø 8.3MM / 3.5M |
| 24 | 1600A02Z65 | Imager module Zweifachkamera 1.5M |
| 24 | 1600A02Z66 | Imager module Ø 3.9MM / 1.5M |
| 25 | 1619PC1560 | Accessories |
| 26 | 1600A017HF | Holder |
| 27 | 1600A017HH | Battery Cover |
| 4 | 1619PC0063 | Display |
| 5 | 1619PC0064 | Holder |
| 6 | 1619PC0065 | Screw |
| 653 | 2607226219 | Fast Charger EU GAL 12V-40 |
| 7 | 1619PC0066 | Printed-Board Assembly |
| 7 | 1619PC0504 | Printed-Board Assembly |
| 8 | 1619PC0067 | Clip |
| 9 | 1619PC0068 | Rubber Plug |
| 91 | 1607A350C5 | Battery Pack GBA 12V 2.0AH LI Scm |
