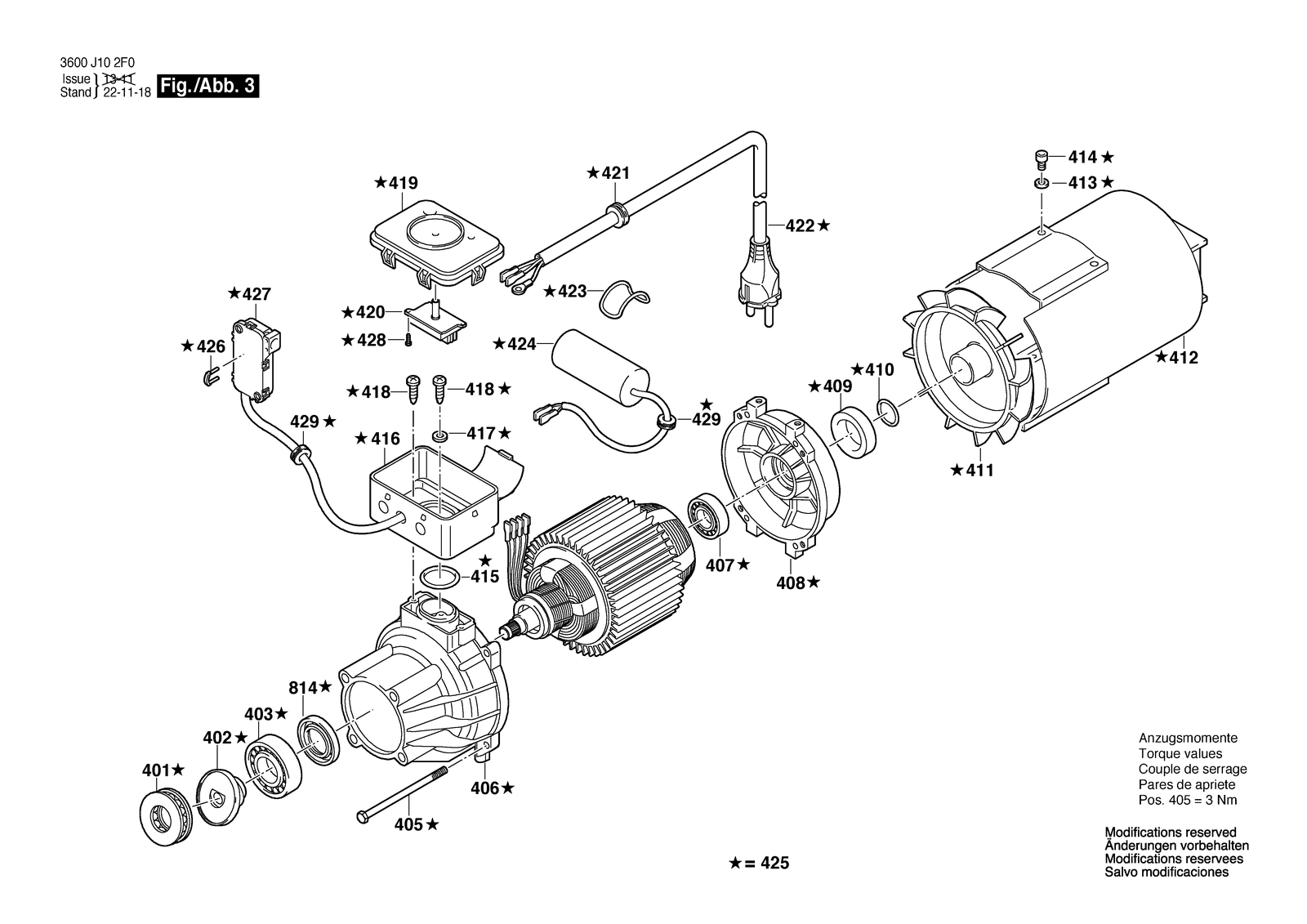

Bosch GHP 6-14 high pressure cleaner: exploded parts diagram, 4 sheets, 131 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GHP 6-14: 131 positions on 4 sheets
Bosch GHP 6-14 parts list (4 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | F016L72102 | Safety Cover |
| 10 | F016L72109 | Grommet |
| 101 | F016L72124 | Plug |
| 102 | F016L72170 | Pump head |
| 103 | F016L72126 | Screw |
| 104 | F016L72035 | O-Ring |
| 105 | F016F04381 | Adapter |
| 106 | F016L72014 | O-Ring |
| 107 | F016F04382 | Adapter |
| 108 | F016L72074 | O-Ring |
| 109 | F016L72129 | Valve |
| 11 | F016L72012 | Screw |
| 110 | F016L72130 | Seal |
| 111 | F016L72131 | O-Ring |
| 112 | F016L72132 | Bushing |
| 113 | F016L72133 | Bushing |
| 115 | F016L72134 | Screw |
| 116 | F016L72135 | Piston Guide |
| 117 | F016L72136 | Spring |
| 119 | F016L72137 | Wobble Plate |
| 12 | F016L72110 | Housing |
| 120 | F016L72172 | Plug |
| 121 | F016L72139 | Screw |
| 122 | F016L72138 | Plug |
| 123 | F016L72173 | Lengthening Piece |
| 124 | F016L72141 | O-Ring |
| 125 | F016L72045 | Pressure gauge |
| 126 | F016L72072 | Spring |
| 127 | F016L72073 | Ball |
| 128 | F016L72074 | O-Ring |
| 129 | F016L72143 | Nipple |
| 13 | F016L72111 | Axle |
| 130 | F016L72019 | O-Ring |
| 131 | F016L72018 | Valve Insert |
| 132 | F016L72017 | Spring |
| 133 | F016L72016 | O-Ring |
| 134 | F016L72015 | Injector |
| 135 | F016L72065 | O-Ring |
| 136 | F016L72030 | O-Ring |
| 137 | F016L72066 | Pin |
| 138 | F016L72067 | Spring |
| 139 | F016L72068 | Plain Washer |
| 14 | F016L72112 | Wheel |
| 140 | F016L72069 | O-Ring |
| 141 | F016L72070 | Adapter |
| 142 | F016L72071 | Adapter |
| 143 | F016L72174 | Threaded Bushing |
| 144 | F016L72030 | O-Ring |
| 145 | F016L72031 | Piston |
| 146 | F016L72032 | Piston |
| 147 | F016L72033 | O-Ring |
| 148 | F016L72030 | O-Ring |
| 149 | F016L72034 | Spacer Ring |
| 15 | F016L72113 | Plain Washer |
| 150 | F016L72035 | O-Ring |
| 151 | F016L72014 | O-Ring |
| 152 | F016L72036 | Piston Guide |
| 153 | F016L72037 | Wobble Plate |
| 154 | F016L72038 | Spring |
| 155 | F016L72039 | Wobble Plate |
| 156 | F016L72040 | Pin |
| 157 | F016L72041 | Insert |
| 158 | F016L72042 | Plug |
| 159 | F016L72043 | Nut |
| 16 | F016L72114 | Safety Cover |
| 160 | F016L72175 | Rotary Knob |
| 161 | F016F04355 | Valve |
| 17 | F016L72115 | Tank |
| 18 | F016L72006 | Filter |
| 19 | F016L72116 | Hose |
| 2 | F016L72168 | Housing |
| 20 | F016L72117 | Plug |
| 21 | F016L72118 | Hose |
| 22 | F016L72119 | Rubber Base |
| 23 | F016L72000 | Screw |
| 24 | F016L72120 | Plain Washer |
| 25 | F016L72121 | Handle |
| 26 | F016L72122 | Safety Cover |
| 27 | F016L72123 | Holder |
| 29 | F016L72010 | Hose Coupling |
| 3 | F016L72008 | Knob |
| 30 | F016L72169 | Rotary Knob |
| 4 | F016L72269 | Housing |
| 401 | F016L72144 | Ball Bearing |
| 402 | F016L72176 | Wobble Plate |
| 403 | F016L72146 | Ball Bearing |
| 405 | F016L72177 | Screw |
| 406 | F016L72149 | Pump |
| 407 | F016L72150 | Ball Bearing |
| 408 | F016L72151 | Cover |
| 409 | F016L72152 | Seal |
| 410 | F016L72153 | O-Ring |
| 411 | F016L72154 | Fan |
| 412 | F016L72155 | Motor Housing |
| 413 | F016L72156 | Plain Washer |
| 414 | F016L72157 | Screw |
| 415 | F016L72158 | O-Ring |
| 416 | F016L72159 | Housing |
| 417 | F016L72160 | Plain Washer |
| 418 | F016L72161 | Screw |
| 419 | F016L73339 | Cover |
| 420 | F016L72087 | Switch |
| 421 | F016L72092 | Grommet |
| 422 | F016F04353 | Power supply cord MAL 5,5M H05 Vv-F |
| 422 | F016L72302 | Power supply cord |
| 423 | F016L72163 | O-Ring |
| 424 | F016F05927 | Condenser |
| 424 | F016F05944 | Condenser |
| 425 | F016F04336 | Motor |
| 425 | F016F04499 | Motor |
| 425 | F016F05936 | Motor |
| 426 | F016L72094 | Clamp |
| 427 | F016L72093 | Electronic Module |
| 428 | F016L72086 | Screw |
| 429 | F016L72096 | Grommet |
| 5 | F016L72105 | Bracket |
| 501 | F016L72097 | Trigger |
| 502 | F016L72179 | Wide Angle Nozzle |
| 503 | F016L72099 | O-Ring |
| 504 | F016L72180 | Hose |
| 505 | F016L72101 | O-Ring |
| 511 | F016L73068 | Trigger |
| 512 | F016F05939 | Wide Angle Nozzle |
| 512/815 | 1619PB2119 | O-Ring 9,5X1,5 |
| 6 | F016L72106 | Plain Washer |
| 7 | F016L72107 | Bracket |
| 8 | F016L72108 | Screw |
| 808 | F016F05905 | Nameplate |
| 814 | F016F04324 | Seal |
| 818 | F016F04323 | Piston 3 Stück |
| 9 | F016L73591 | Filter |
