Bosch GHP 5-65 X
Bosch GHP 5-65 X high pressure cleaner: exploded parts diagram, 5 sheets, 143 positions. Spare parts with part numbers, availability and prices.
—

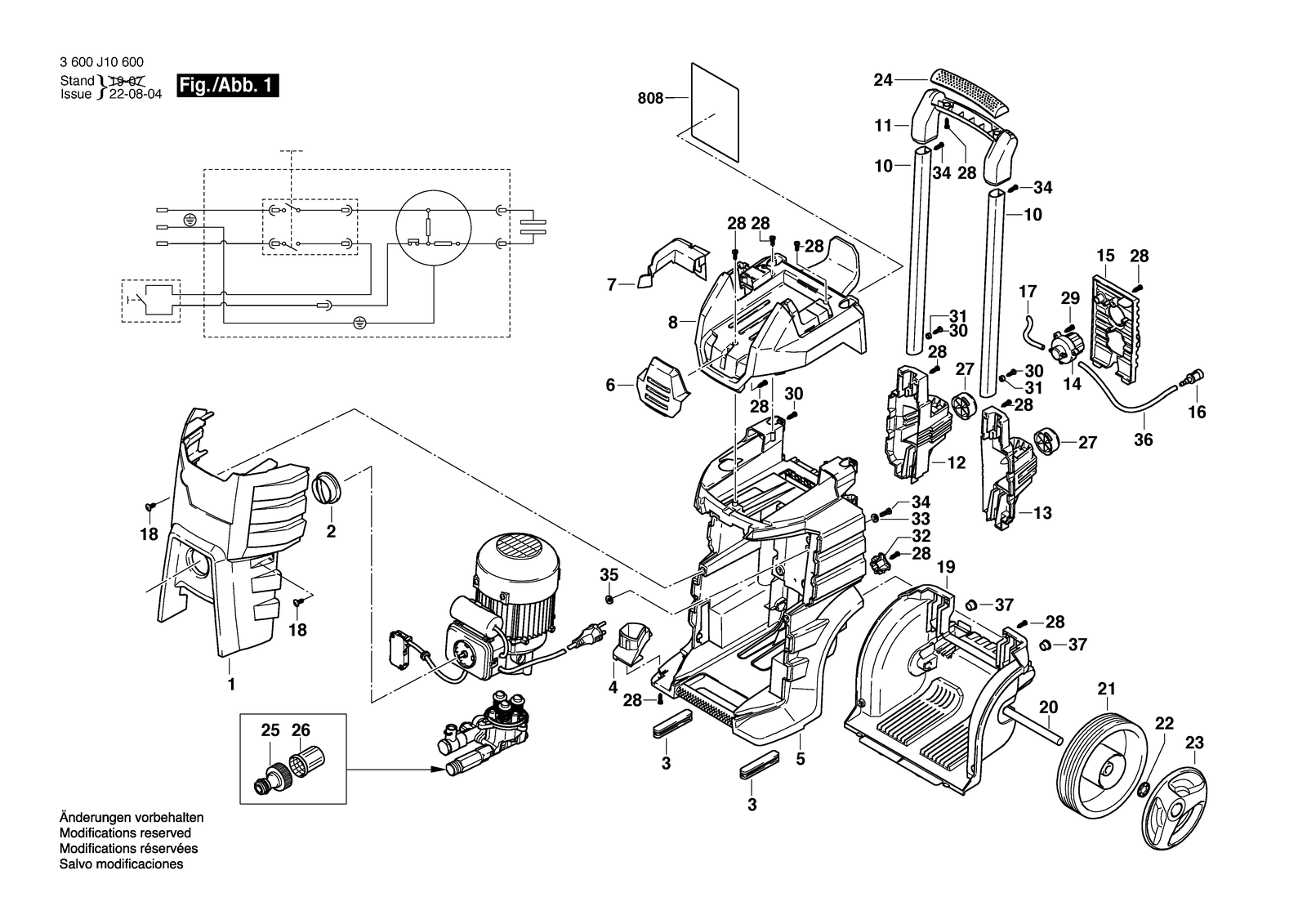

Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GHP 5-65 X: 143 positions on 5 sheets
Bosch GHP 5-65 X parts list (5 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | F016L73355 | Housing |
| 10 | F016L73356 | Rod |
| 101 | F016L72124 | Plug |
| 102 | F016L73054 | Pump head |
| 103 | F016L72126 | Screw |
| 104 | F016L72035 | O-Ring |
| 105 | F016F04381 | Adapter |
| 106 | F016L72014 | O-Ring |
| 107 | F016L73357 | Adapter |
| 108 | F016L73055 | O-Ring |
| 109 | F016L72129 | Valve |
| 11 | F016L73036 | Handle |
| 110 | F016L72130 | Seal |
| 111 | F016L72131 | O-Ring |
| 112 | F016L72132 | Bushing |
| 113 | F016L72133 | Bushing |
| 115 | F016L72134 | Screw |
| 116 | F016L73057 | Piston Guide |
| 117 | F016L72136 | Spring |
| 118 | F016F04323 | Piston 3 Stück |
| 119 | F016L72137 | Wobble Plate |
| 12 | F016L73037 | Accessory Deposit |
| 120 | F016L72138 | Plug |
| 121 | F016L73058 | Screw |
| 122 | F016L72140 | Spring |
| 123 | F016L72065 | O-Ring |
| 124 | F016L72141 | O-Ring |
| 125 | F016L72142 | Adapter |
| 126 | F016L72072 | Spring |
| 127 | F016L72073 | Ball |
| 128 | F016L72074 | O-Ring |
| 129 | F016L72143 | Nipple |
| 13 | F016L73038 | Accessory Deposit |
| 130 | F016L73059 | O-Ring |
| 131 | F016L72018 | Valve Insert |
| 132 | F016L72017 | Spring |
| 133 | F016L72016 | O-Ring |
| 134 | F016L73358 | Injector |
| 14 | F016L73039 | Adjustment Knob |
| 15 | F016L73040 | Cover Plate |
| 16 | F016L73041 | Water filter |
| 162 | F016L73359 | Pump head |
| 163 | F016L73361 | Plug |
| 164 | F016L73360 | Clamp |
| 165 | F016L72219 | O-Ring |
| 166 | F016L73709 | O-Ring |
| 17 | F016L73239 | Suction Pipe |
| 18 | F016L73053 | Screw |
| 19 | F016L73044 | Housing |
| 2 | F016L72008 | Knob |
| 20 | F016F06339 | Wheel Shaft |
| 21 | F016F06297 | Wheel |
| 22 | F016L73047 | Plain Washer |
| 23 | F016F06298 | Cover |
| 24 | F016L72122 | Safety Cover |
| 25 | F016L72010 | Hose Coupling |
| 26 | F016L73591 | Filter |
| 27 | F016L72119 | Rubber Base |
| 28 | F016L72012 | Screw |
| 29 | F016L72187 | Screw |
| 3 | F016L73028 | Rubber Base |
| 30 | F016L73337 | Retaining Screw |
| 31 | F016L73051 | Plain Washer |
| 32 | F016L72109 | Grommet |
| 33 | F016L72120 | Plain Washer |
| 34 | F016L73711 | Screw |
| 35 | F016L73100 | Vibration Damper |
| 36 | F016L73338 | Suction Pipe |
| 37 | F016L73278 | Plug |
| 39 | F016L73710 | Screw |
| 4 | F016L73029 | Accessory Deposit |
| 401 | F016L72144 | Ball Bearing |
| 402 | F016L72145 | Wobble Plate |
| 403 | F016L72146 | Ball Bearing |
| 404 | F016L73063 | Rotary shaft lip seal |
| 405 | F016L72148 | Screw |
| 406 | F016L73064 | Pump Housing |
| 407 | F016L72150 | Ball Bearing |
| 408 | F016L72151 | Cover |
| 409 | F016L72152 | Seal |
| 410 | F016L72153 | O-Ring |
| 411 | F016L72154 | Fan |
| 412 | F016L73065 | Air Duct |
| 413 | F016L72156 | Plain Washer |
| 414 | F016L72157 | Screw |
| 415 | F016L72158 | O-Ring |
| 416 | F016L72159 | Housing |
| 417 | F016L72160 | Plain Washer |
| 418 | F016L72161 | Screw |
| 419 | F016L73339 | Cover |
| 420 | F016L72087 | Switch |
| 421 | F016L72092 | Grommet |
| 422 | F016L73340 | Power supply cord |
| 422 | F016L73341 | Power supply cord |
| 423 | F016L72163 | O-Ring |
| 424 | F016F05928 | Condenser |
| 425 | F016F05934 | Motor |
| 425 | F016L73363 | Motor |
| 426 | F016L72094 | Clamp |
| 427 | F016L73067 | Switch |
| 428 | F016L72086 | Screw |
| 429 | F016L72092 | Grommet |
| 430 | F016L72260 | O-Ring |
| 431 | F016L73343 | O-Ring |
| 5 | F016L73030 | Housing |

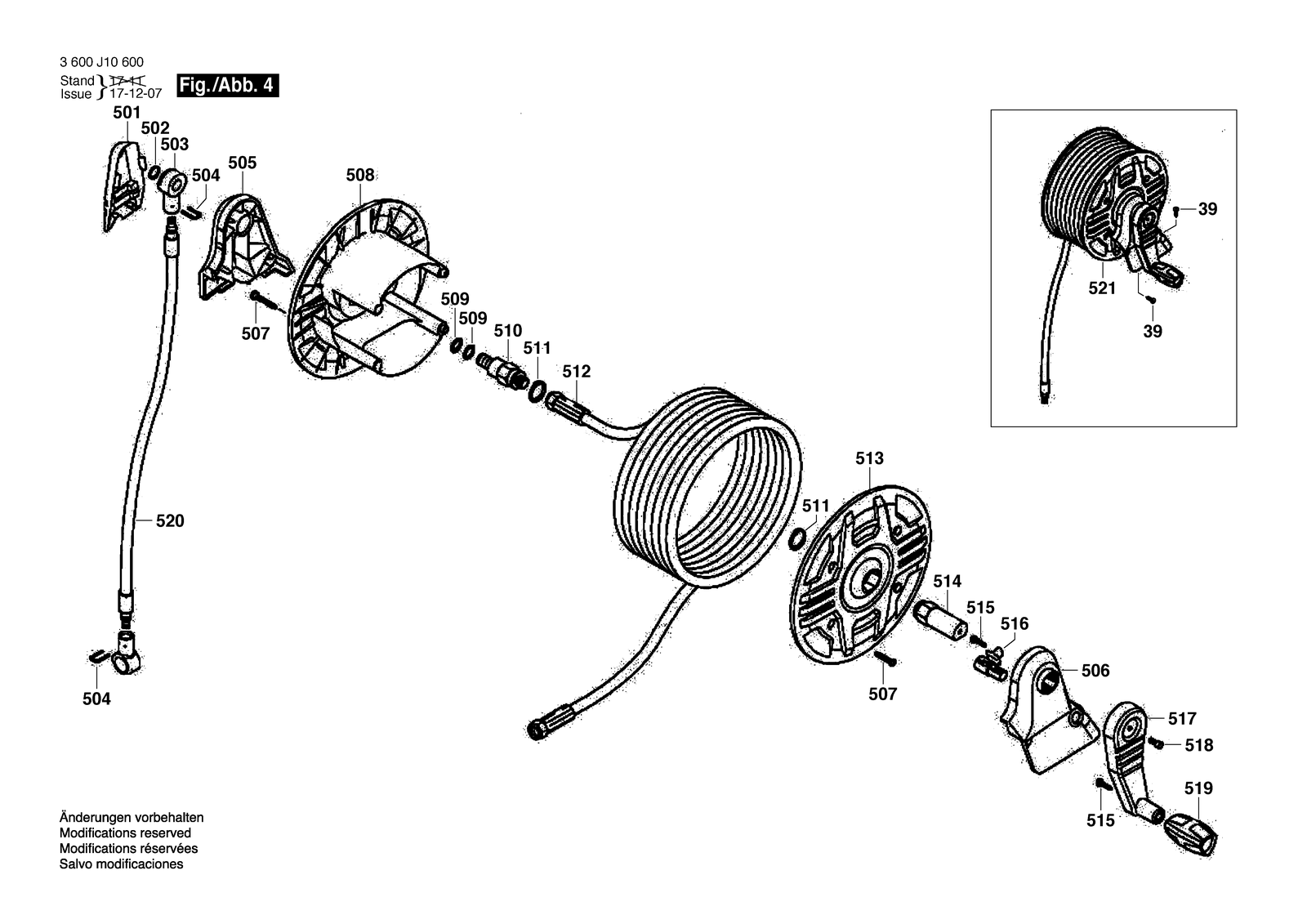

| 501 | F016L73367 | Cover |
| 502 | F016L73368 | Ring |
| 503 | F016L73369 | Adapter |
| 504 | F016L73370 | Clamp |
| 505 | F016L73371 | Cover |
| 506 | F016L73372 | Cover |
| 507 | F016L73373 | Screw |
| 508 | F016L73374 | Cover |
| 509 | F016L72101 | O-Ring |
| 510 | F016L73375 | Adapter |
| 511 | F016L72286 | Ring |
| 512 | F016L73376 | High-Pressure Hose |
| 513 | F016L73377 | Cover |
| 514 | F016L73378 | Hub |
| 515 | F016L73053 | Screw |
| 516 | F016L72282 | Hook |
| 517 | F016L73379 | Lever |
| 518 | F016L72203 | Screw |
| 519 | F016L73380 | Knob |
| 520 | F016L73381 | High-Pressure Hose |
| 521 | F016L73382 | Hose Reel Carrier |
| 6 | F016L73031 | Cover |

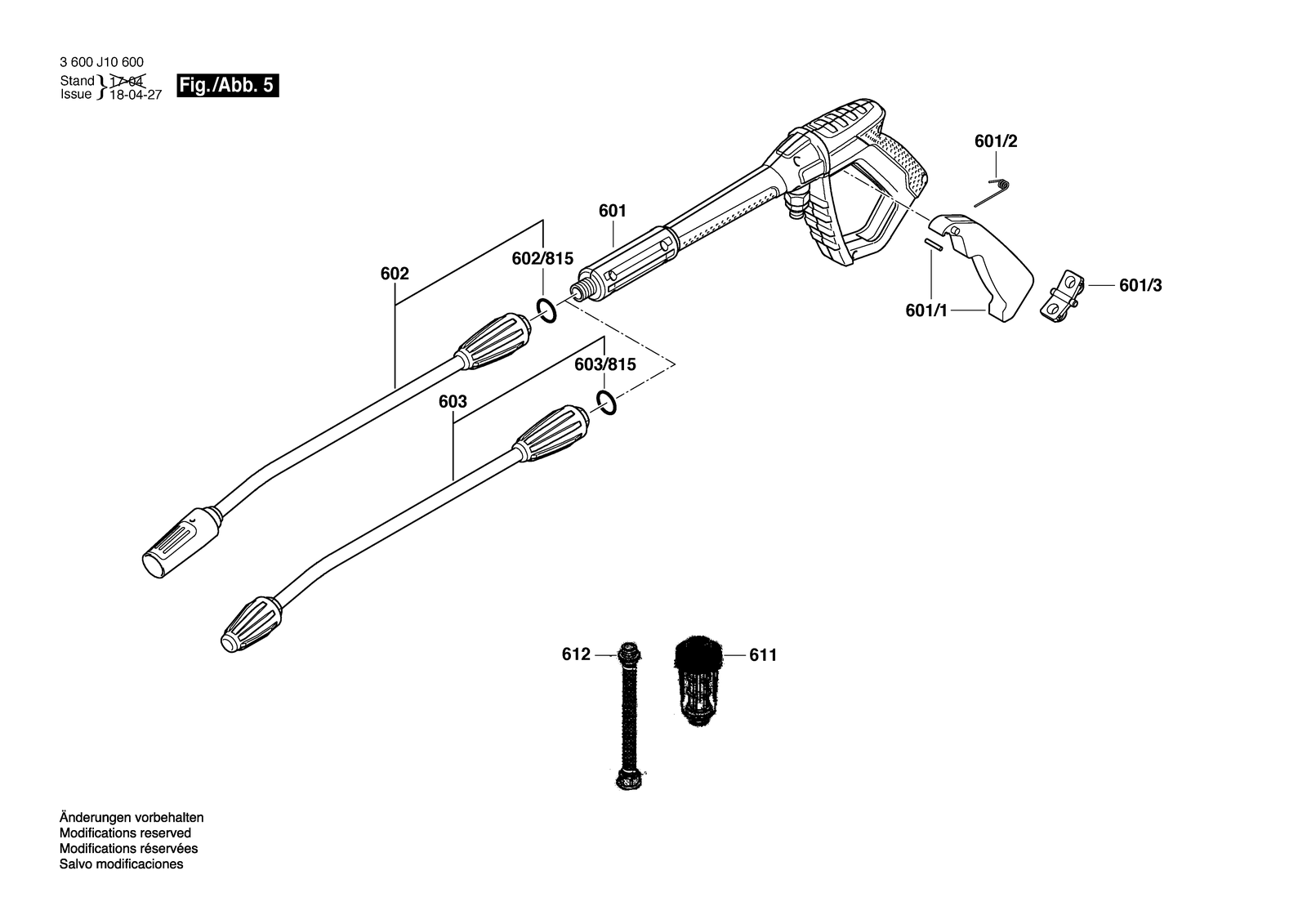

| 601 | F016L73068 | Trigger |
| 601/1 | 1619PA9742 | Trigger |
| 601/2 | 1619PA9743 | Spring |
| 601/3 | 1619PA9744 | Lock |
| 602 | F016L73281 | Wide Angle Nozzle |
| 602/815 | 1619PB2119 | O-Ring 9,5X1,5 |
| 603 | F016L73282 | Roto Jet Fan Lance |
| 603/815 | 1619PB2119 | O-Ring 9,5X1,5 |
| 611 | F016L73351 | Filter |
| 612 | F016L73352 | Hose |
| 7 | F016L73032 | Hook |
| 8 | F016L73033 | Housing part |
| 808 | F016F05912 | Nameplate |
| 808 | F016F05913 | Nameplate |
| 814 | F016F04324 | Seal |
| 880 | F016L73387 | Wear and Tear Part Set |
