Bosch GHP 5-13 C
Bosch GHP 5-13 C high pressure cleaner: exploded parts diagram, 2 sheets, 128 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

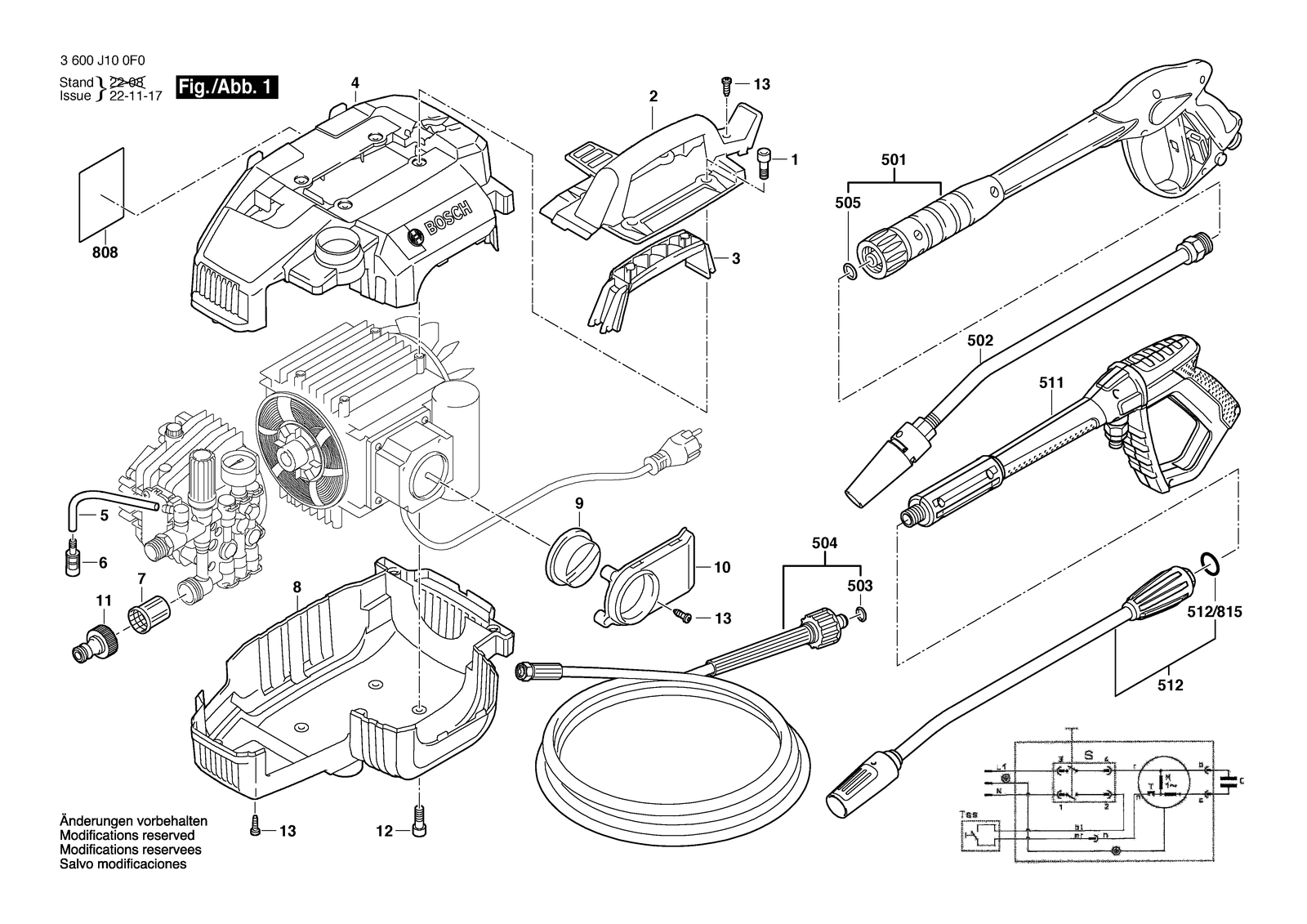

All parts of Bosch GHP 5-13 C: 128 positions on 2 sheets
Bosch GHP 5-13 C parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | F016L72000 | Screw |
| 10 | F016L72009 | Safety Cover |
| 101 | F016F04380 | Adapter |
| 102 | F016L72014 | O-Ring |
| 103 | F016L72015 | Injector |
| 104 | F016L72016 | O-Ring |
| 105 | F016L72017 | Spring |
| 106 | F016L72018 | Valve Insert |
| 107 | F016L72019 | O-Ring |
| 108 | F016L72020 | Pump head |
| 109 | F016L72021 | Valve |
| 11 | F016L72010 | Hose Coupling |
| 110 | F016L72022 | O-Ring |
| 111 | F016L72023 | O-Ring |
| 112 | F016L72024 | Plug |
| 113 | F016L72025 | Retaining clip |
| 114 | F016L72026 | Screw |
| 115 | F016L72027 | Plug |
| 116 | F016L72028 | Nipple |
| 117 | F016L72029 | Plug |
| 118 | F016L72030 | O-Ring |
| 119 | F016L72031 | Piston |
| 12 | F016L72011 | Screw |
| 120 | F016L72032 | Piston |
| 121 | F016L72033 | O-Ring |
| 122 | F016L72030 | O-Ring |
| 123 | F016L72034 | Spacer Ring |
| 124 | F016L72035 | O-Ring |
| 125 | F016L72014 | O-Ring |
| 126 | F016L72036 | Piston Guide |
| 127 | F016L72037 | Wobble Plate |
| 128 | F016L72038 | Spring |
| 129 | F016L72039 | Wobble Plate |
| 13 | F016L72012 | Screw |
| 130 | F016L72040 | Pin |
| 131 | F016L72041 | Insert |
| 132 | F016L72042 | Plug |
| 133 | F016L72043 | Nut |
| 134 | F016L72044 | Plug |
| 135 | F016L72045 | Pressure gauge |
| 136 | F016L72046 | Plug |
| 137 | F016L72047 | O-Ring |
| 140 | F016L72048 | Piston Guide |
| 143 | F016L72049 | Pump unit |
| 144 | F016L72050 | Bushing |
| 146 | F016L72051 | Cover |
| 147 | F016L72052 | Screw |
| 148 | F016L72053 | Plug |
| 149 | F016L72054 | Plug |
| 150 | F016L72055 | Key |
| 151 | F016L72056 | Ball Bearing |
| 152 | F016L72057 | Retaining ring |
| 153 | F016L72058 | Retaining ring |
| 155 | F016L72059 | Connecting Rod |
| 156 | F016L72060 | Pin |
| 157 | F016L72061 | Pin |
| 160 | F016F04356 | Washer |
| 162 | F016L72062 | Plain Washer |
| 163 | F016L72063 | Screw |
| 164 | F016L72064 | Crankshaft |
| 164 | F016L72691 | Crankshaft |
| 165 | F016L72065 | O-Ring |
| 166 | F016L72030 | O-Ring |
| 167 | F016L72066 | Pin |
| 168 | F016L72067 | Spring |
| 169 | F016L72068 | Plain Washer |
| 170 | F016L72069 | O-Ring |
| 171 | F016L72070 | Adapter |
| 172 | F016L72071 | Adapter |
| 173 | F016L72072 | Spring |
| 174 | F016L72073 | Ball |
| 175 | F016L72074 | O-Ring |
| 176 | F016L72075 | Adapter |
| 177 | F016F04328 | Pump |
| 178 | F016F04329 | Pump head |
| 179 | F016F04330 | Valve |
| 180 | F016L72076 | Plug |
| 181 | F016L72077 | Rotary Handle |
| 182 | F016L72078 | Screw |
| 190 | 1619PB2107 | Plug |
| 2 | F016L72001 | Handle |
| 3 | F016L72002 | Cover |
| 4 | F016L72003 | Housing |
| 401 | F016L72079 | Fan |
| 402 | F016L72080 | Seal |
| 403 | F016L72081 | Screw |
| 404 | F016L72082 | Cover |
| 405 | F016L72083 | Ball Bearing |
| 406 | F016L72084 | Clamp |
| 407 | F016L72085 | Seal |
| 408 | F016L72086 | Screw |
| 409 | F016L72087 | Switch |
| 410 | F016L72088 | Housing |
| 411 | F016L72089 | Screw |
| 412 | F016F06013 | Capacitor |
| 413 | F016F05930 | Clamp |
| 414 | F016L72092 | Grommet |
| 415 | F016L72093 | Electronic Module |
| 416 | F016L72094 | Clamp |
| 417 | F016F04353 | Power supply cord MAL 5,5M H05 Vv-F |
| 417 | F016F04428 | Power supply cord |
| 417 | F016L72302 | Power supply cord |
| 418 | F016F04331 | Motor |
| 418 | F016F04430 | Motor |
| 418 | F016F04495 | Motor |
| 418 | F016F04496 | Motor |
| 418 | F016F05931 | Motor |
| 419 | F016L72096 | Grommet |
| 5 | F016L72004 | Hose |
| 501 | F016L72097 | Trigger |
| 502 | F016L72098 | Wide Angle Nozzle |
| 502 | F016L72695 | Jet Pipe |
| 503 | F016L72099 | O-Ring |
| 504 | F016F04475 | Hose 8 M |
| 504 | F016F04523 | Hose |
| 505 | F016L72101 | O-Ring |
| 511 | F016L73068 | Trigger |
| 512 | F016F05939 | Wide Angle Nozzle |
| 512/815 | 1619PB2119 | O-Ring 9,5X1,5 |
| 6 | F016L72005 | Filter |
| 7 | F016L73591 | Filter |
| 8 | F016L72007 | Housing |
| 808 | F016F05901 | Nameplate |
| 808 | F016F05902 | Nameplate |
| 838 | F016F04320 | Seal |
| 845 | F016F04321 | Seal |
| 861 | F016F04322 | Piston 3 Stück |
| 9 | F016L72008 | Knob |
