Bosch GHP 4-50

Bosch GHP 4-50 high pressure cleaner: exploded parts diagram, 4 sheets, 55 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GHP 4-50: 55 positions on 4 sheets

Bosch GHP 4-50 parts list (4 sheets)

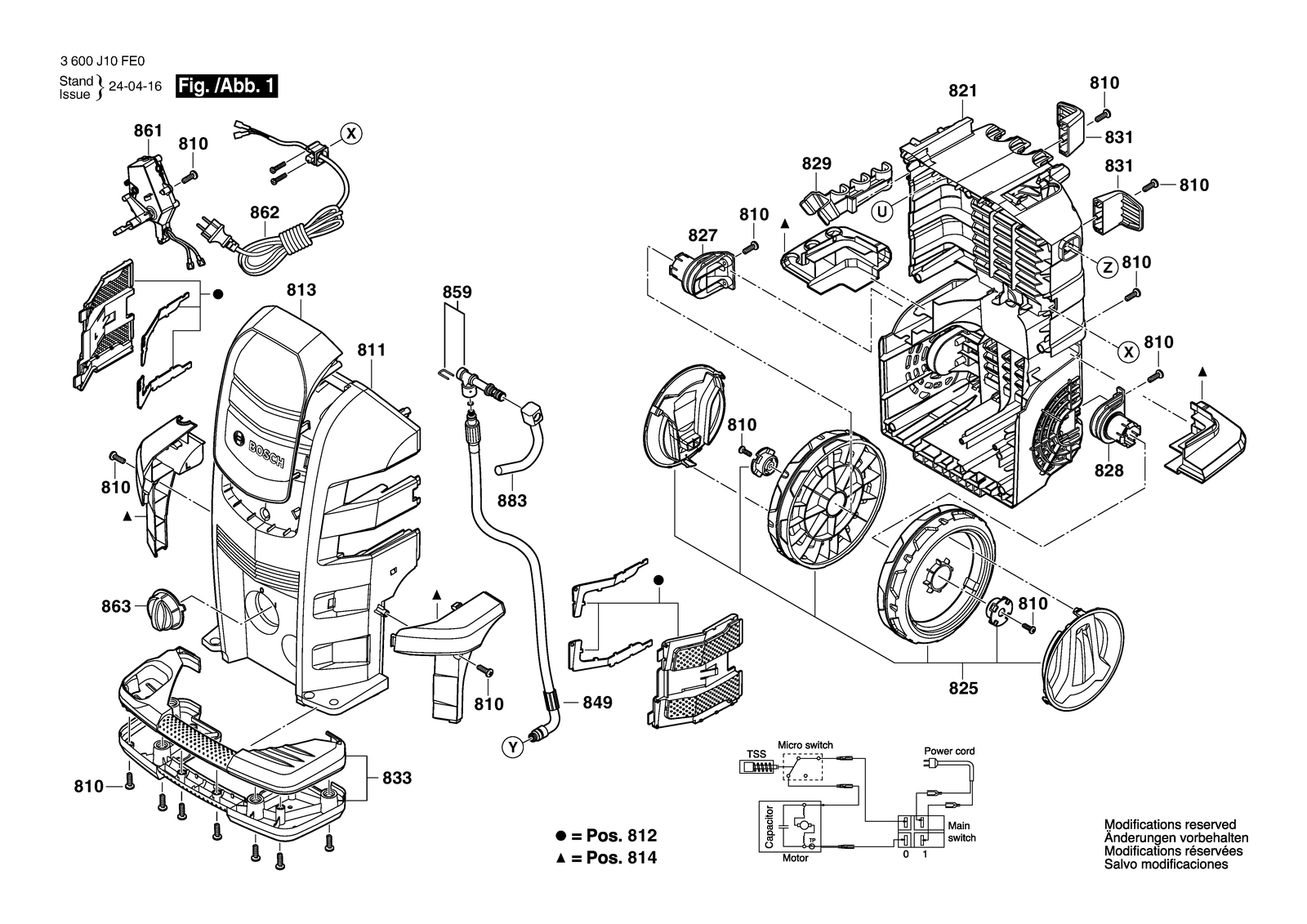

Bosch GHP 4-50 parts diagram, sheet 1Bosch GHP 4-50 parts diagram, sheet 2Bosch GHP 4-50 parts diagram, sheet 3Bosch GHP 4-50 parts diagram, sheet 4
No.Part numberPart name
801F016F05476Motor
801F016F06274Motor
808F016F06252Nameplate
808F016F06253Nameplate
808F016F06254Nameplate
808F016F06428Nameplate
809F016F06338Warning Label
810F016F04810Torx SH cap screw
811F016F06275Front cover
812F016F05483Front cover
813F016F06276Front cover
814F016F05457Front cover
820F016F06277Cover
821F016F05472Cover
822F016F05475Cover
825F016F05469Wheel
827F016F05470Axle
828F016F05473Axle
829F016F05458Hook
830F016F05471Hook
831F016F05474Hook
833F016F05456Handle
834F016F05467Handle
843F016F05402O-Ring
847F016F05462Wobble Plate
847F016F06278Wobble Plate
848F016F05477Washer
849F016F06279High-Pressure Hose
850F016F05454Seal Kit
851F016F06280Pump head
852F016F04947Piston Guide
853F016F05463Pump unit
856F016F05464Non-Return Valve
859F016F06281Connector
860F016F05451Motor cover
861F016F05460Switch Box
861F016F06421Switch Box
862F016F06282Power supply cord
862F016F06284Power supply cord
862F016F06285Power supply cord
862F016F06423Power supply cord
863F016F04805Switch Actuator
864F016F05501Clip
865F016F05184Capacitor
866F016F05478Bearing set
867F016F05479Fan
868F016F05459Cap
870F016F04458Seal Kit 2 X (5.3 X 1.6), 2 X (8X2), 2 X (7.X1.6)
871F016F06271Trigger
877F016F06273Vario Jet Fan Lance
878F016F06272Roto Jet Fan Lance
882F016F05855Water filter
883F016F06283High-Pressure Hose
888F016F05661Water filter
889F016F06182Water filter
