Bosch GHP 220 high pressure cleaner: exploded parts diagram, 4 sheets, 46 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GHP 220: 46 positions on 4 sheets

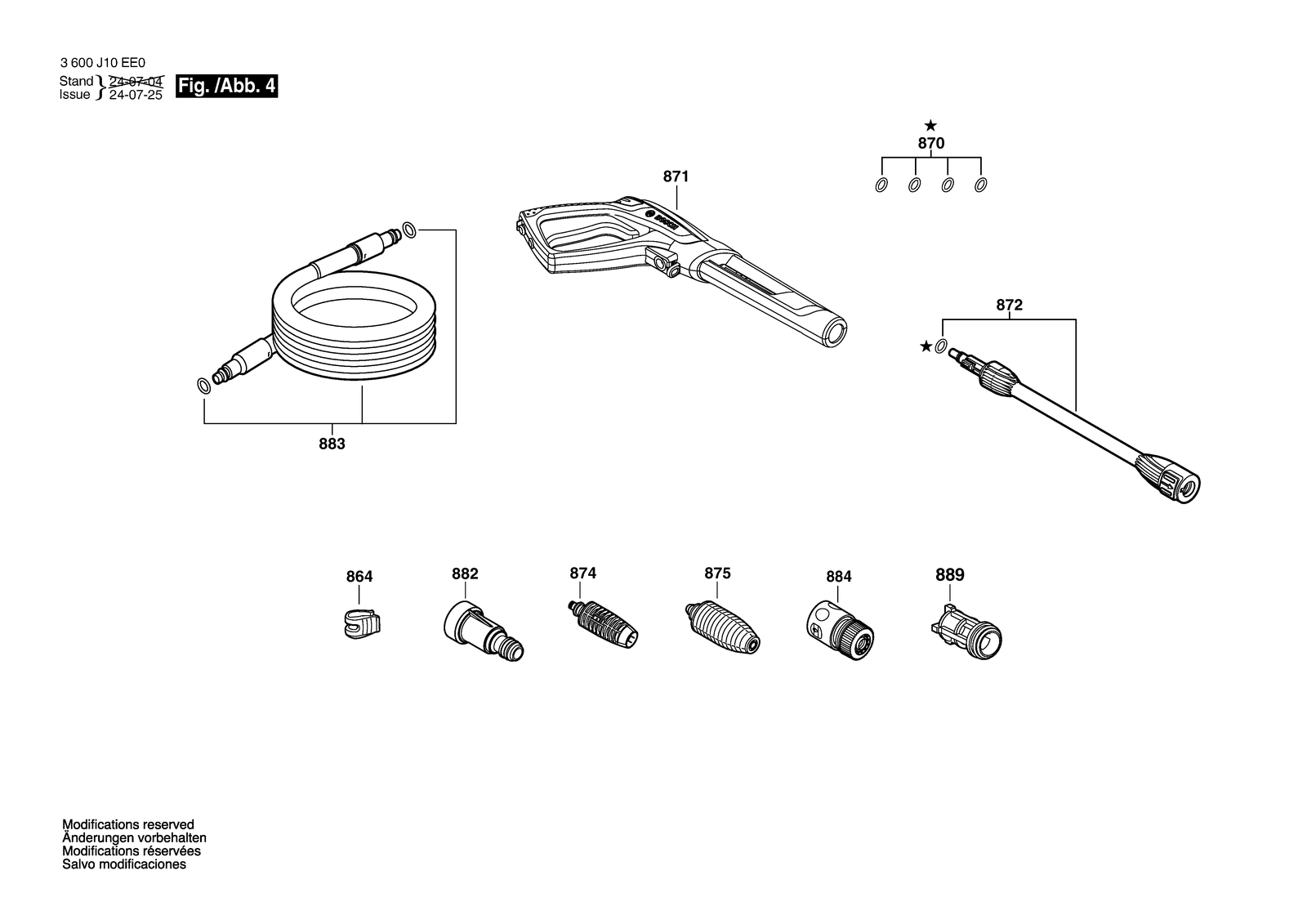

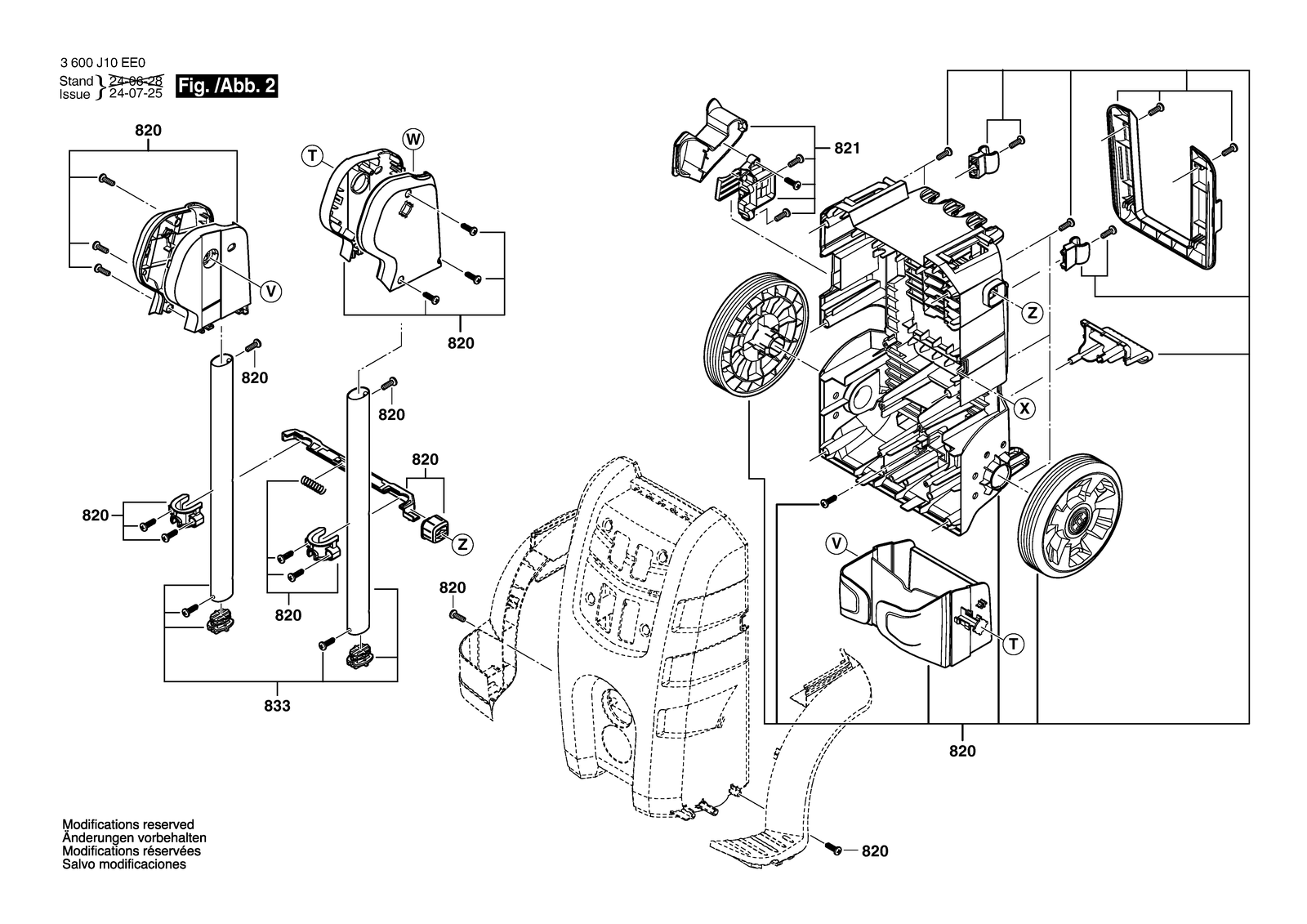

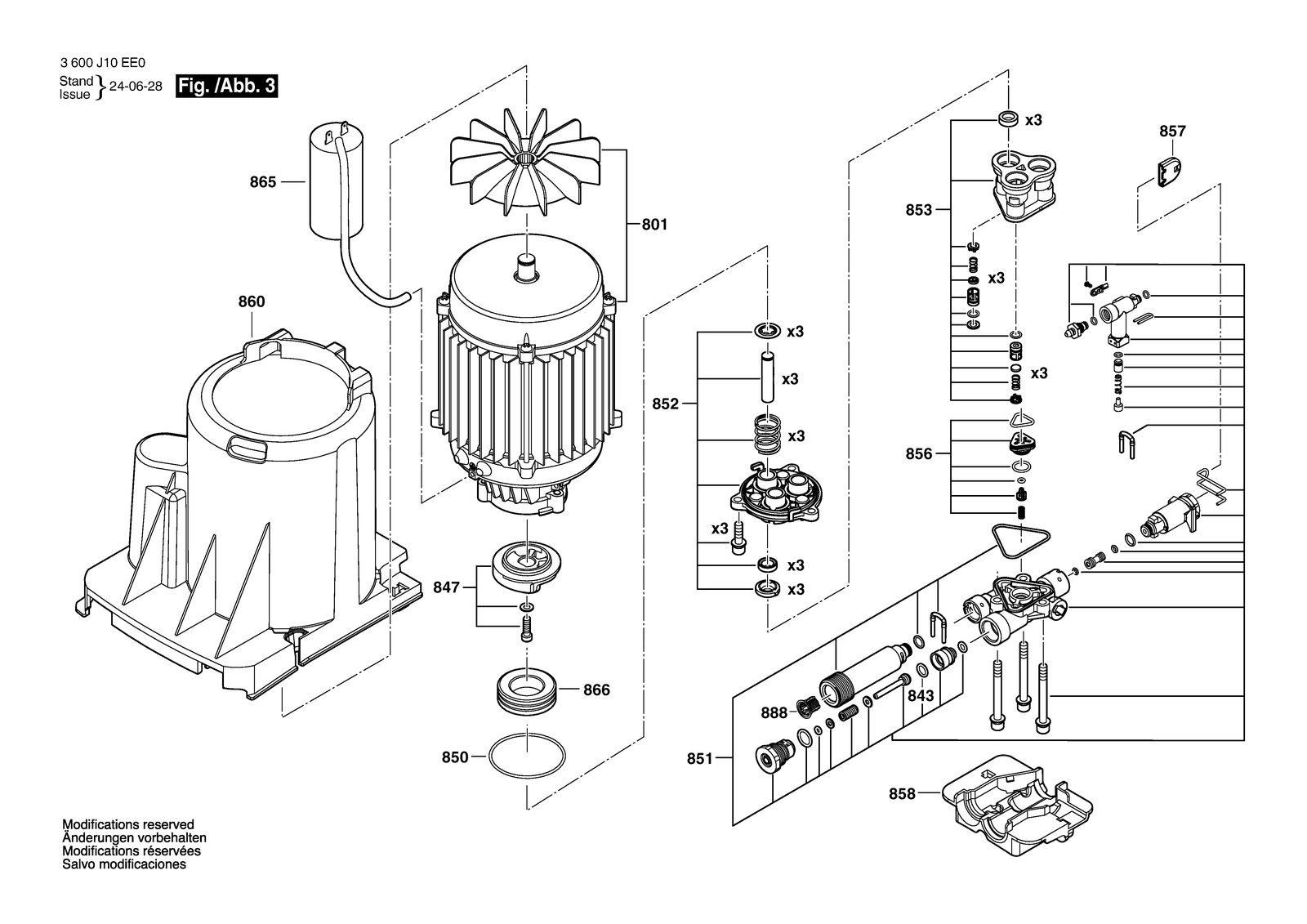

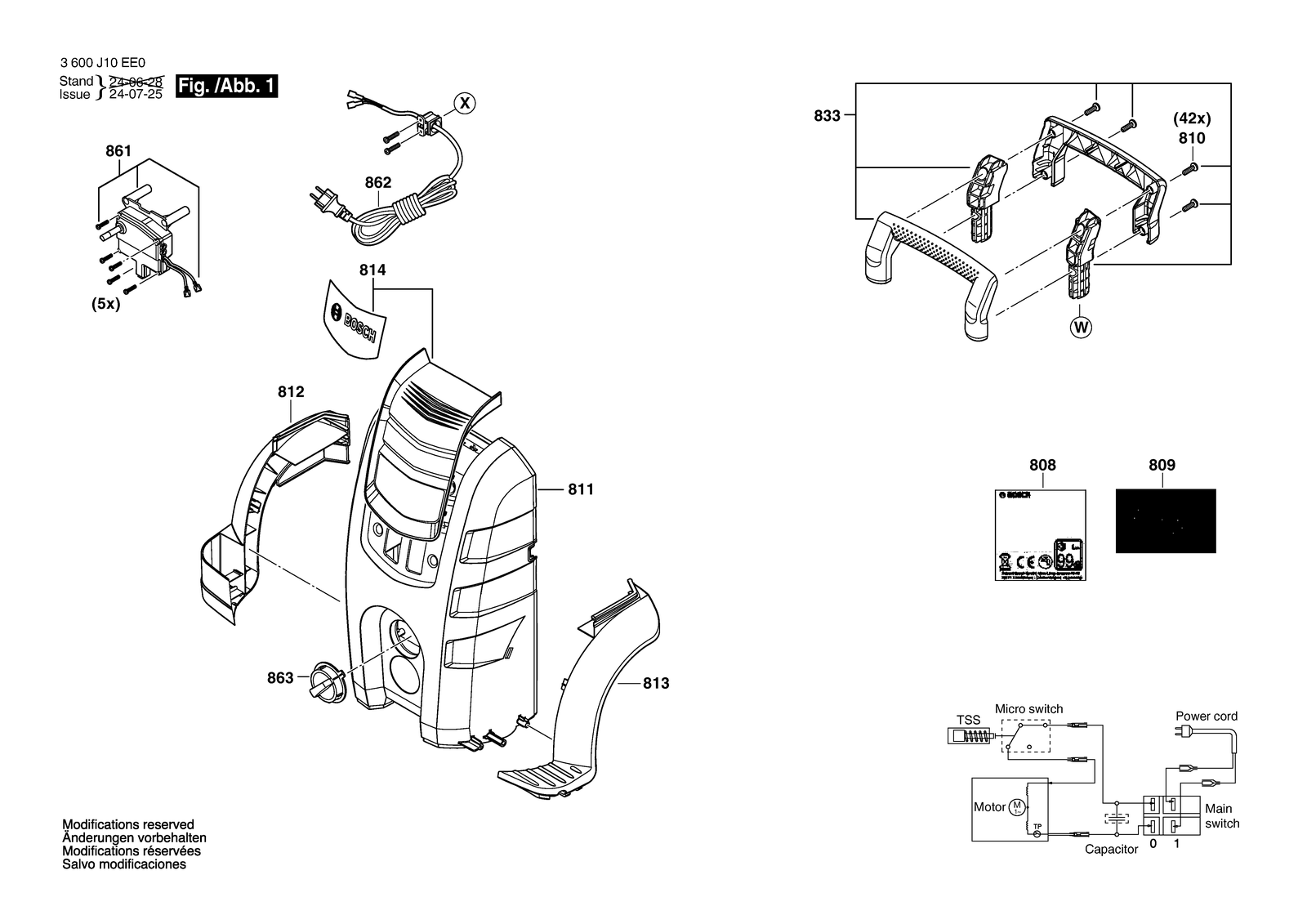

Bosch GHP 220 parts list (4 sheets)
| No. | Part number | Part name |
|---|---|---|
| 801 | F016F04644 | Motor |
| 801 | F016F06289 | Motor |
| 808 | F016F06249 | Nameplate |
| 808 | F016F06250 | Nameplate |
| 808 | F016F06251 | Nameplate |
| 808 | F016F06427 | Nameplate |
| 809 | F016F06338 | Warning Label |
| 810 | F016F04810 | Torx SH cap screw |
| 811 | F016F06290 | Front cover |
| 812 | F016F04616 | Front cover |
| 813 | F016F04617 | Front cover |
| 814 | F016F06302 | Front cover |
| 820 | F016F06303 | Cover |
| 821 | F016F05359 | Cover |
| 833 | F016F05104 | Handle |
| 843 | F016F05402 | O-Ring |
| 847 | F016F05046 | Wobble Plate |
| 847 | F016F06304 | Wobble Plate |
| 850 | F016F04459 | O-Ring |
| 851 | F016F06305 | Pump head |
| 852 | F016F04642 | Piston Guide |
| 853 | F016F04440 | Pump unit |
| 856 | F016F04460 | Non-Return Valve |
| 857 | F016F04681 | Clip |
| 858 | F016F04627 | Pump Mounting |
| 860 | F016F04652 | Motor cover |
| 861 | F016F04636 | Switch Box |
| 861 | F016F06420 | Switch Box |
| 862 | F016F06306 | Power supply cord |
| 862 | F016F06307 | Power supply cord |
| 862 | F016F06308 | Power supply cord |
| 862 | F016F06422 | Power supply cord |
| 863 | F016F04613 | Switch Actuator |
| 864 | F016F05501 | Clip |
| 865 | F016F05184 | Capacitor |
| 866 | F016F04646 | Bearing set |
| 870 | F016F04458 | Seal Kit 2 X (5.3 X 1.6), 2 X (8X2), 2 X (7.X1.6) |
| 871 | F016F05512 | Trigger |
| 872 | F016F05281 | Lance |
| 874 | F016F06287 | Wide Angle Nozzle |
| 875 | F016F05362 | Nozzle White |
| 882 | F016F05052 | Water filter |
| 883 | F016F06288 | High-Pressure Hose |
| 884 | F016F05492 | Hose Coupling |
| 888 | F016F05661 | Water filter |
| 889 | F016F06182 | Water filter |
