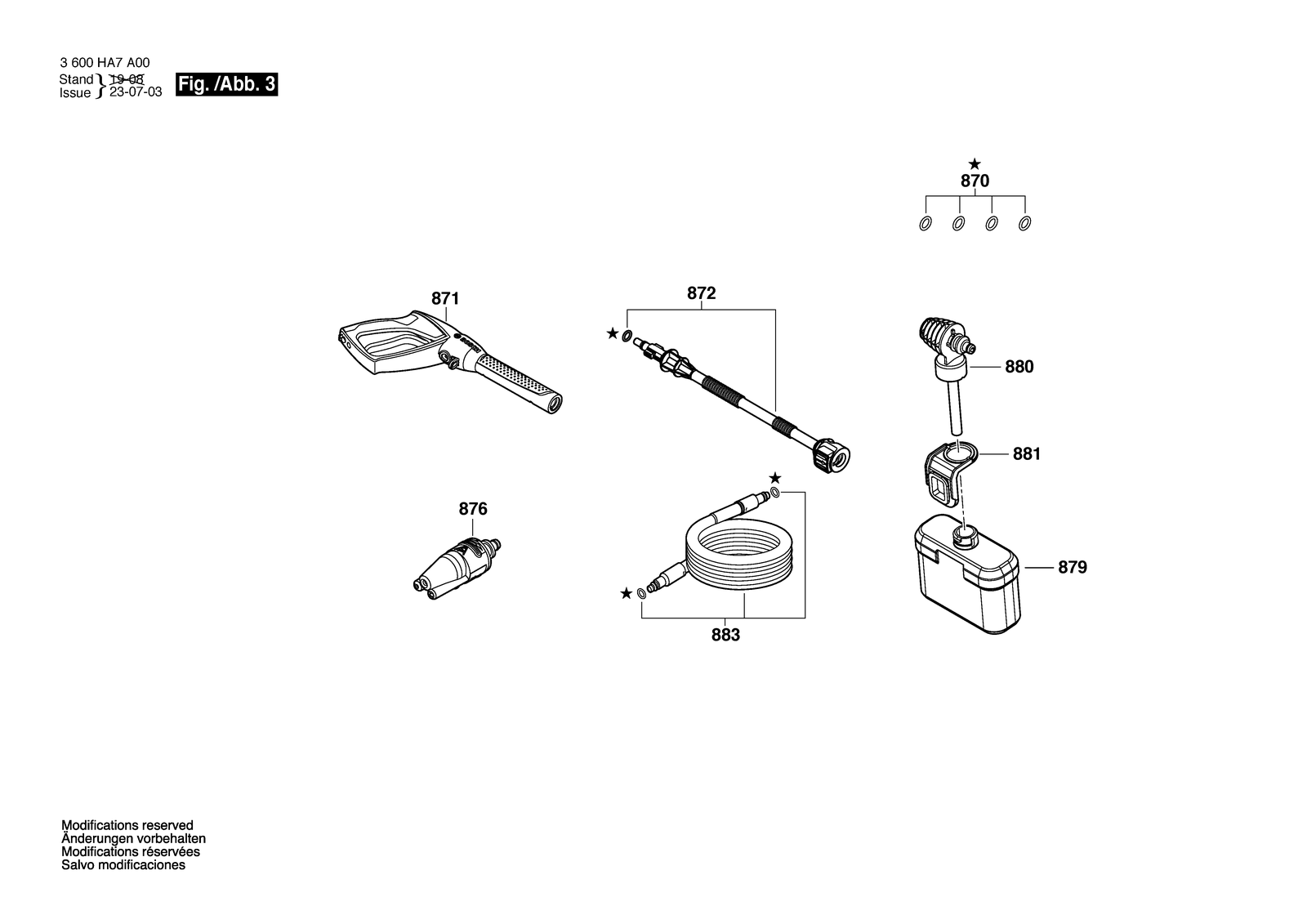

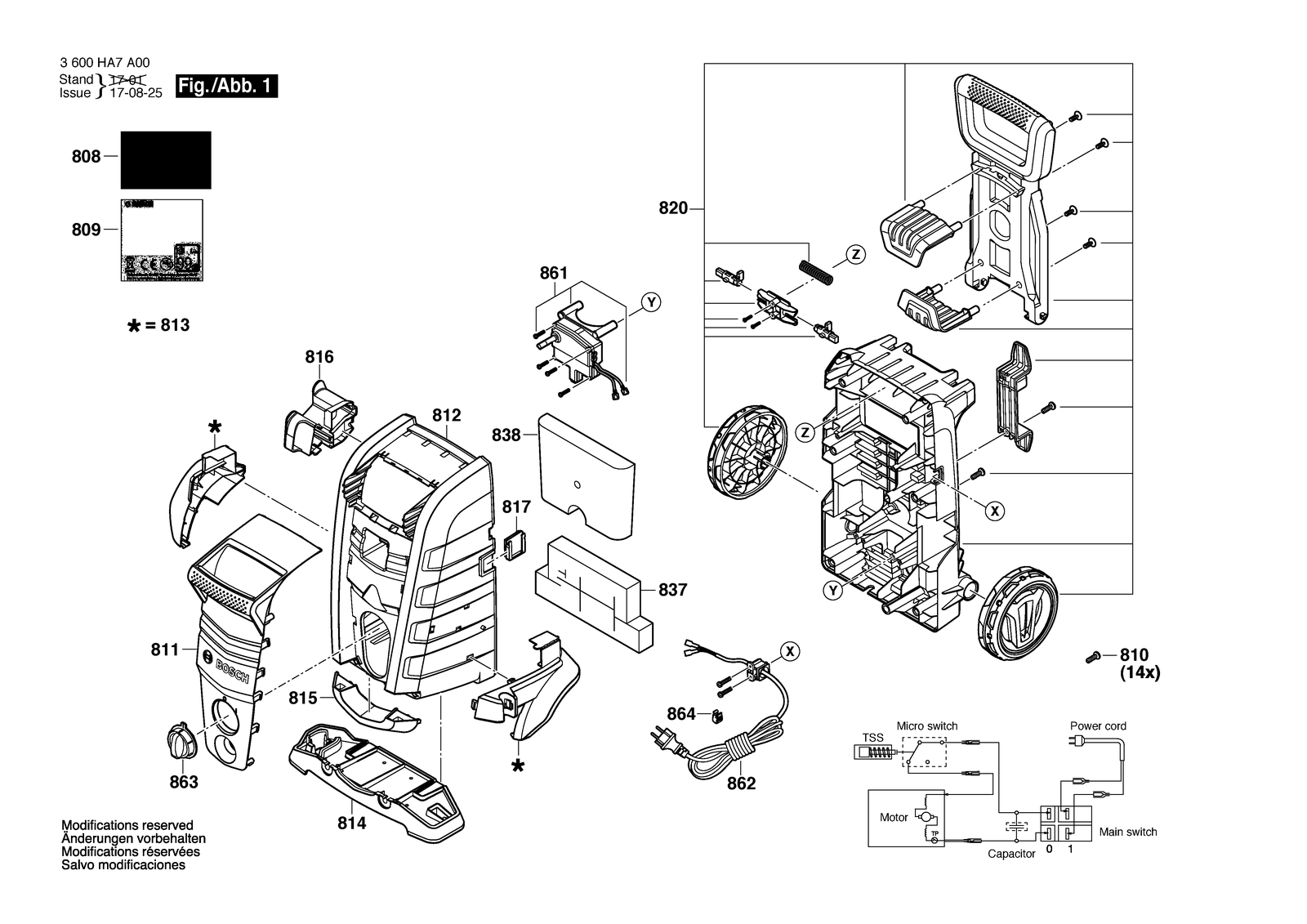

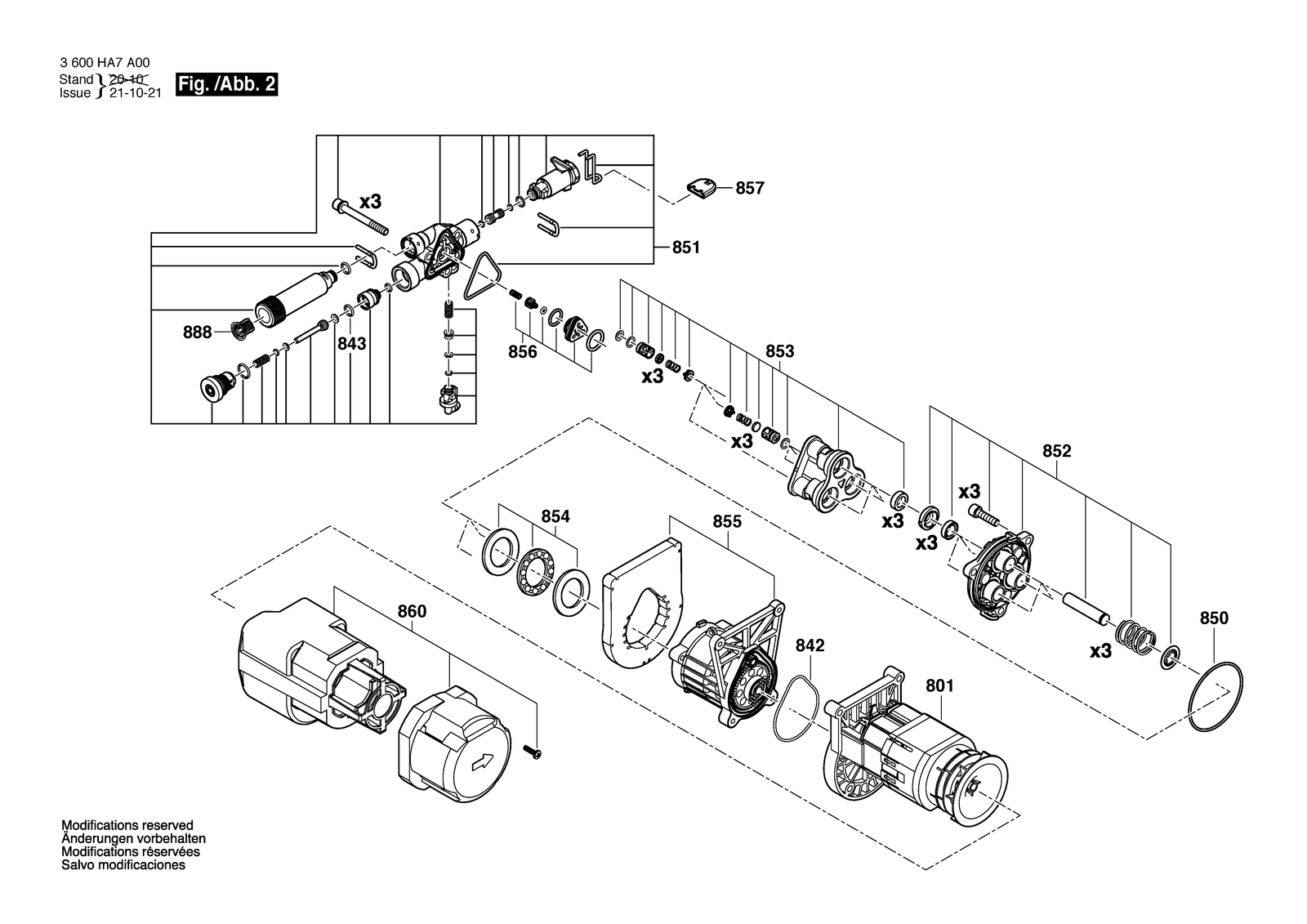

Bosch GHP 180 high pressure cleaner: exploded parts diagram, 3 sheets, 94 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GHP 180: 94 positions on 3 sheets
Bosch GHP 180 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 801 | F016F05016 | Motor |
| 801 | F016F06255 | Motor |
| 801 | F016F06267 | Motor |
| 808 | F016F05085 | Nameplate |
| 808 | F016F06241 | Nameplate |
| 808 | F016F06242 | Nameplate |
| 808 | F016F06243 | Nameplate |
| 808 | F016F06244 | Nameplate |
| 808 | F016F06425 | Nameplate |
| 809 | F016F05583 | Warning Label |
| 809 | F016F05583 | Warning Label |
| 810 | F016F04810 | Torx SH cap screw |
| 810 | F016F04810 | Torx SH cap screw |
| 811 | F016F05258 | Front cover |
| 811 | F016F06256 | Front cover |
| 812 | F016F05003 | Front cover |
| 812 | F016F06257 | Front cover |
| 813 | F016F05004 | Front cover |
| 813 | F016F05004 | Front cover |
| 814 | F016F05005 | Front cover |
| 814 | F016F05005 | Front cover |
| 815 | F016F05006 | Front cover |
| 815 | F016F06258 | Front cover |
| 816 | F016F04452 | Front cover |
| 816 | F016F04452 | Front cover |
| 817 | F016F05007 | Clip |
| 817 | F016F06259 | Clip |
| 820 | F016F05262 | Cover |
| 820 | F016F05262 | Cover |
| 837 | F016F05018 | Foam Panel |
| 837 | F016F05018 | Foam Panel |
| 838 | F016F05019 | Foam Panel |
| 838 | F016F05019 | Foam Panel |
| 842 | F016F05637 | O-Ring Ø 63 X 2,65 MM |
| 842 | F016F05637 | O-Ring Ø 63 X 2,65 MM |
| 843 | F016F05402 | O-Ring |
| 843 | F016F05402 | O-Ring |
| 850 | F016F04459 | O-Ring |
| 850 | F016F04459 | O-Ring |
| 851 | F016F05012 | Pump head |
| 851 | F016F05024 | Pump head |
| 852 | F016F04441 | Piston Guide |
| 852 | F016F04441 | Piston Guide |
| 853 | F016F05011 | Pump unit |
| 853 | F016F06264 | Pump unit |
| 854 | F016F04803 | Thrust Bearing |
| 854 | F016F04803 | Thrust Bearing |
| 854 | F016F05023 | Thrust Bearing |
| 855 | F016F05010 | Gear Box |
| 855 | F016F06260 | Gear Box |
| 855 | F016F06268 | Gear Box |
| 856 | F016F04460 | Non-Return Valve |
| 856 | F016F04460 | Non-Return Valve |
| 857 | F016F04681 | Clip |
| 857 | F016F04681 | Clip |
| 860 | F016F05008 | Motor cover |
| 860 | F016F04614 | Motor cover |
| 860 | F016F05008 | Motor cover |
| 861 | F016F04439 | Switch Box |
| 861 | F016F04439 | Switch Box |
| 861 | F016F06269 | Switch Box |
| 861 | F016F06361 | Switch Box |
| 862 | F016F04483 | Power supply cord UK |
| 862 | F016F04484 | Power supply cord EU |
| 862 | F016F06261 | Power supply cord |
| 862 | F016F06265 | Power supply cord |
| 862 | F016F06266 | Power supply cord |
| 862 | F016F06270 | Power supply cord |
| 862 | F016F06360 | Power supply cord |
| 863 | F016F04613 | Switch Actuator |
| 863 | F016F04613 | Switch Actuator |
| 864 | F016F05432 | Clip |
| 864 | F016F05432 | Clip |
| 870 | F016F04458 | Seal Kit 2 X (5.3 X 1.6), 2 X (8X2), 2 X (7.X1.6) |
| 870 | F016F04458 | Seal Kit 2 X (5.3 X 1.6), 2 X (8X2), 2 X (7.X1.6) |
| 871 | F016F05280 | Trigger |
| 871 | F016F05280 | Trigger |
| 872 | F016F05135 | Lance |
| 872 | F016F05135 | Lance |
| 876 | F016F05573 | 3-in-1-nozzle Red |
| 879 | F016F05036 | Bottle 450ML |
| 879 | F016F05036 | Bottle 450ML |
| 880 | F016F05020 | High pressure foam nozzle Red |
| 880 | F016F05020 | High pressure foam nozzle Red |
| 881 | F016F04795 | Clip |
| 881 | F016F04795 | Clip |
| 882 | F016F05052 | Water filter |
| 882 | F016F05052 | Water filter |
| 883 | F016F05013 | High-Pressure Hose 5 M |
| 883 | F016F05013 | High-Pressure Hose 5 M |
| 888 | F016F05661 | Water filter |
| 888 | F016F05661 | Water filter |
| 889 | F016F06182 | Water filter |
| 889 | F016F06182 | Water filter |
