Bosch GHO 700
Bosch GHO 700 portable planer: exploded parts diagram, 2 sheets, 66 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

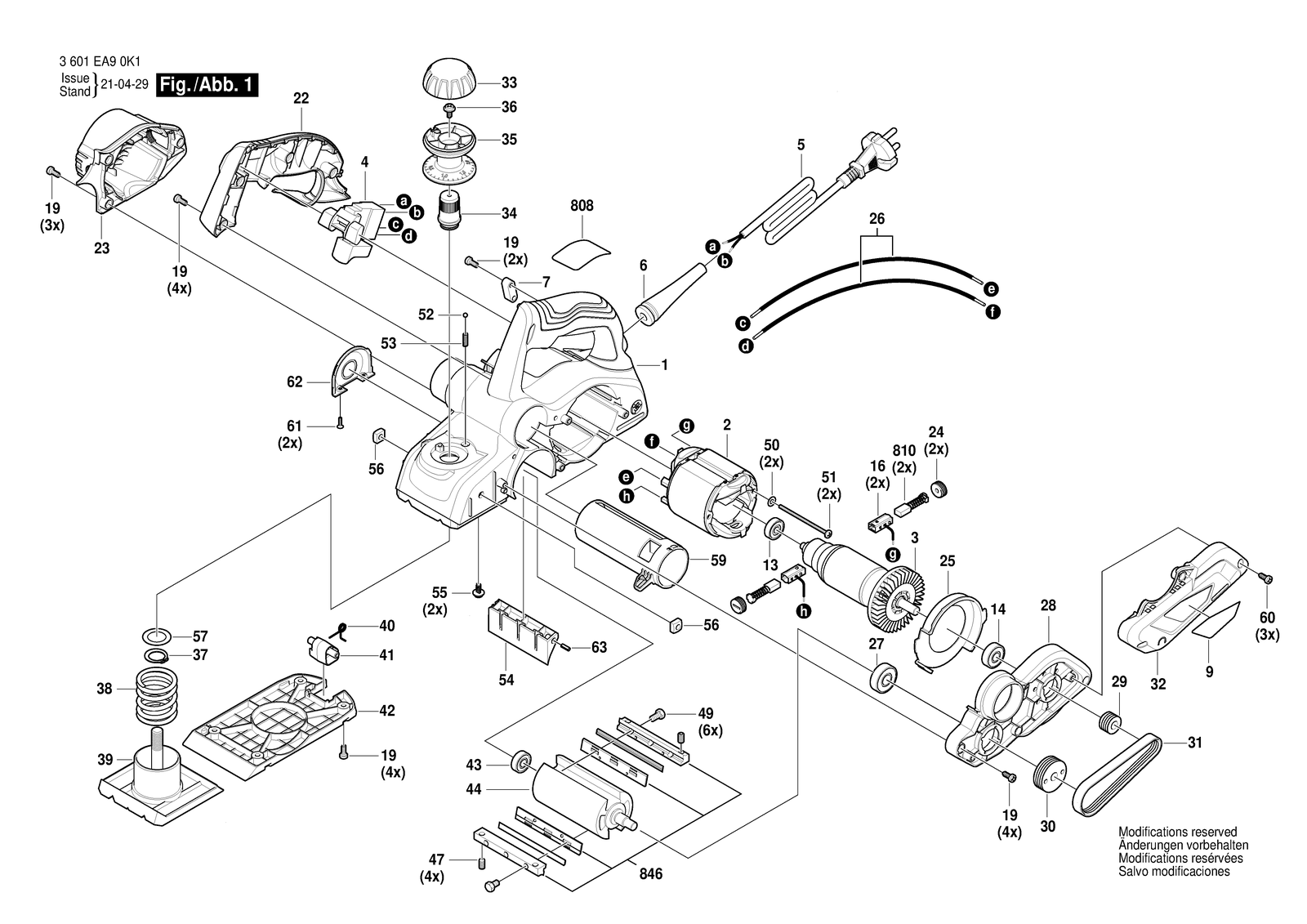

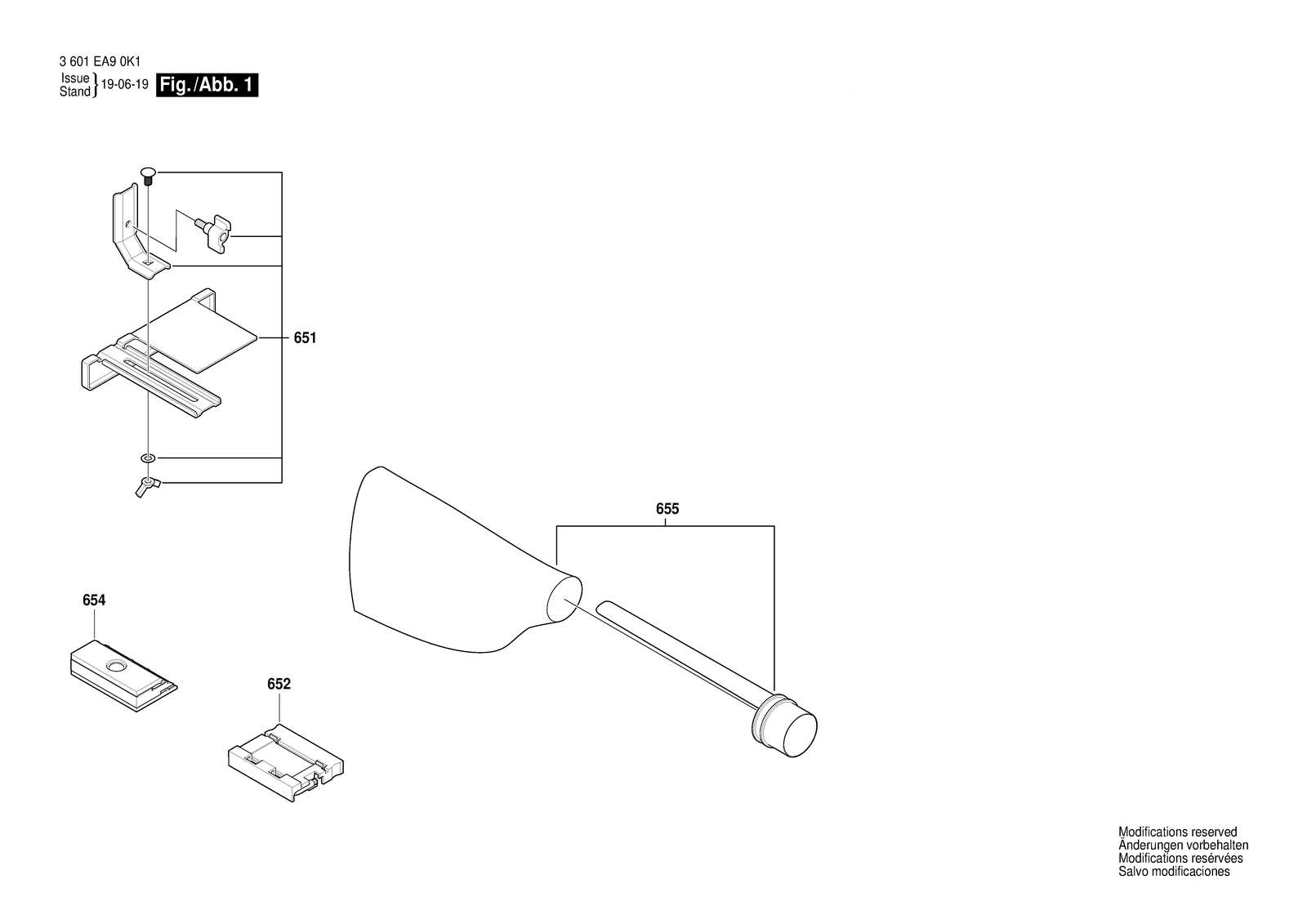

All parts of Bosch GHO 700: 66 positions on 2 sheets
Bosch GHO 700 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PB4245 | Motor Housing |
| 13 | 1619PA7994 | Groove ball bearing |
| 14 | 1619PA7998 | Groove ball bearing |
| 16 | 1619PA7995 | Carbon Brush Holder |
| 19 | 1619PB4258 | Screw |
| 2 | 1619PB4246 | Field assembly 127V |
| 2 | 1619PB4332 | Field assembly 220V |
| 22 | 1619PB4259 | Handle |
| 23 | 1619PB4260 | Cover |
| 24 | 1619PA7988 | Brush-Cover |
| 25 | 1619PB4261 | Air-Deflector Ring |
| 26 | 1619PB4262 | Connecting Cable |
| 27 | 1619PA7999 | Groove ball bearing |
| 28 | 1619PB4263 | Bearing Flange |
| 29 | 1619PB4264 | Pulley |
| 3 | 1619PB4247 | Armature 127V |
| 3 | 1619PB4300 | Armature 220V |
| 30 | 1619PB4265 | Pulley |
| 31 | 1619PB4266 | V-Belt |
| 32 | 1619PB4267 | Cover |
| 33 | 1619PB4268 | Cover |
| 34 | 1619PA8006 | Cap Nut |
| 35 | 1619PB4269 | Adjustment Knob |
| 36 | 1619PB4270 | Screw |
| 37 | 1619PB4271 | Retaining snap ring |
| 38 | 1619PA8008 | Compression Spring |
| 39 | 1619PA8009 | Adjusting Plate |
| 4 | 1619PB4249 | Switch |
| 40 | 1619PB4272 | Spring |
| 41 | 1619PB4273 | Support |
| 42 | 1619PB4274 | Base Plate |
| 43 | 1619PB4340 | Groove ball bearing |
| 44 | 1619PB4275 | Cutting Head |
| 47 | 1619PB4278 | Set screw |
| 49 | 1619PB4280 | Screw |
| 5 | 1619PB4251 | Power supply cord |
| 5 | 1619PB4252 | Power supply cord |
| 5 | 1619PB4253 | Power supply cord |
| 5 | 1619PB4254 | Power supply cord |
| 50 | 1619PB4281 | Plain Washer |
| 51 | 1619PB4282 | Screw |
| 52 | 1619PB4283 | Steel ball |
| 53 | 1619PB4284 | Retaining snap ring |
| 54 | 1619PB4285 | Guide Plate |
| 55 | 1619PB4286 | Screw |
| 56 | 1619PA8721 | Square Nut |
| 57 | 1619PB4287 | Plain Washer |
| 59 | 1619PB4288 | Deflector Pipe |
| 6 | 1619PB4255 | Grommet |
| 60 | 1619PB4289 | Screw |
| 61 | 1619PB4290 | Holding Pin |
| 62 | 1619PB4291 | Cover |
| 63 | 1619PB4292 | Split Pin |
| 651 | 1619PB4338 | Guide Bracket |
| 652 | 1619PB4240 | Feeler Gauge |
| 654 | 1619PB4339 | Blade Sharpening Device |
| 655 | 1619PB4236 | Dust Bag |
| 7 | 1619PA7982 | Clamping Piece |
| 808 | 1619PB4326 | Nameplate |
| 808 | 1619PB4327 | Nameplate |
| 808 | 1619PB4328 | Nameplate |
| 808 | 1619PB4329 | Nameplate |
| 808 | 1619PB4330 | Nameplate |
| 810 | 1619PB4256 | Carbon Brush |
| 846 | 1619PB7315 | Clamping Unit |
| 9 | 1619PB4213 | Manufacturer's nameplate GHO 700 |
