All parts of Bosch GHO 6500: 55 positions on 2 sheets

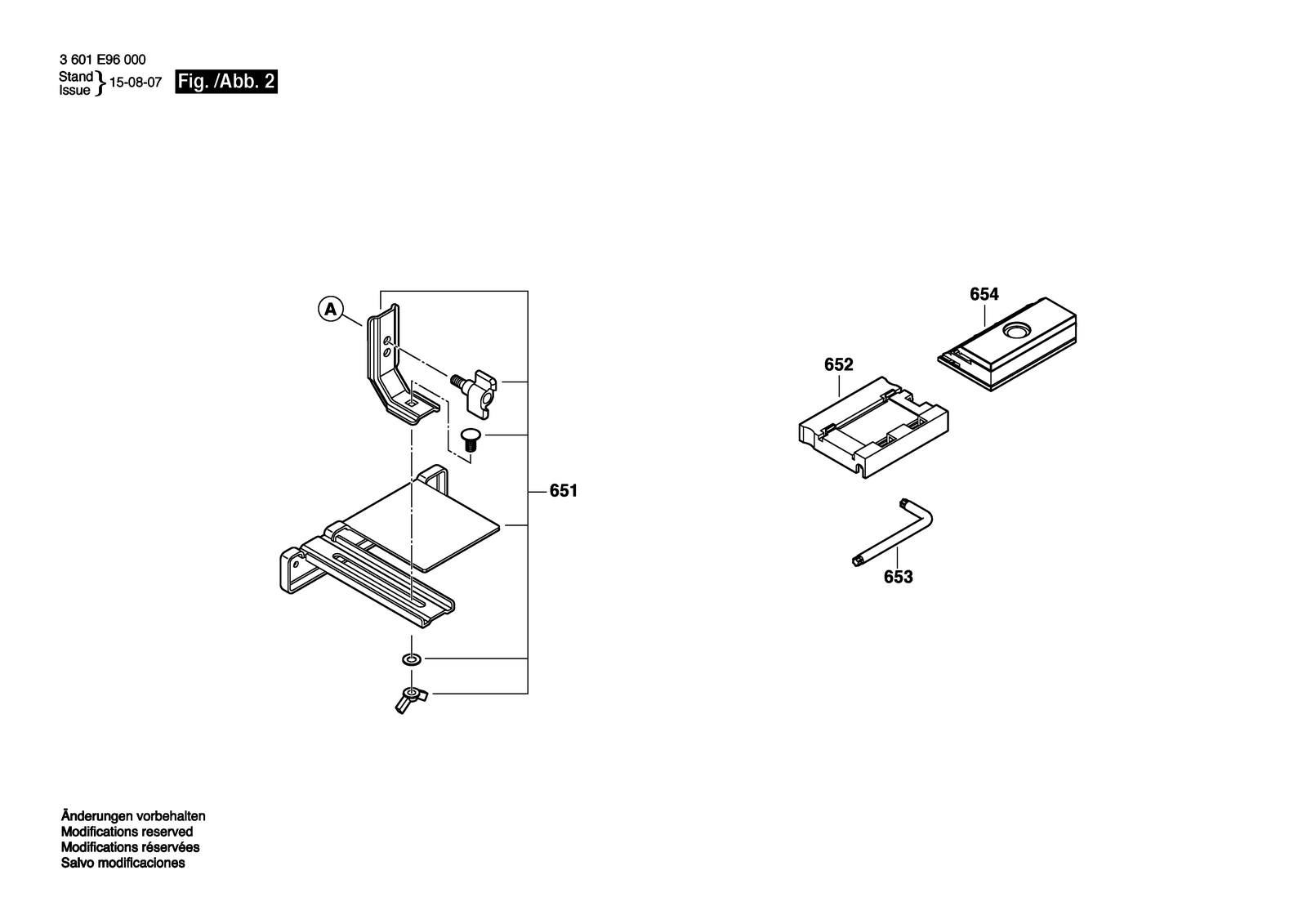

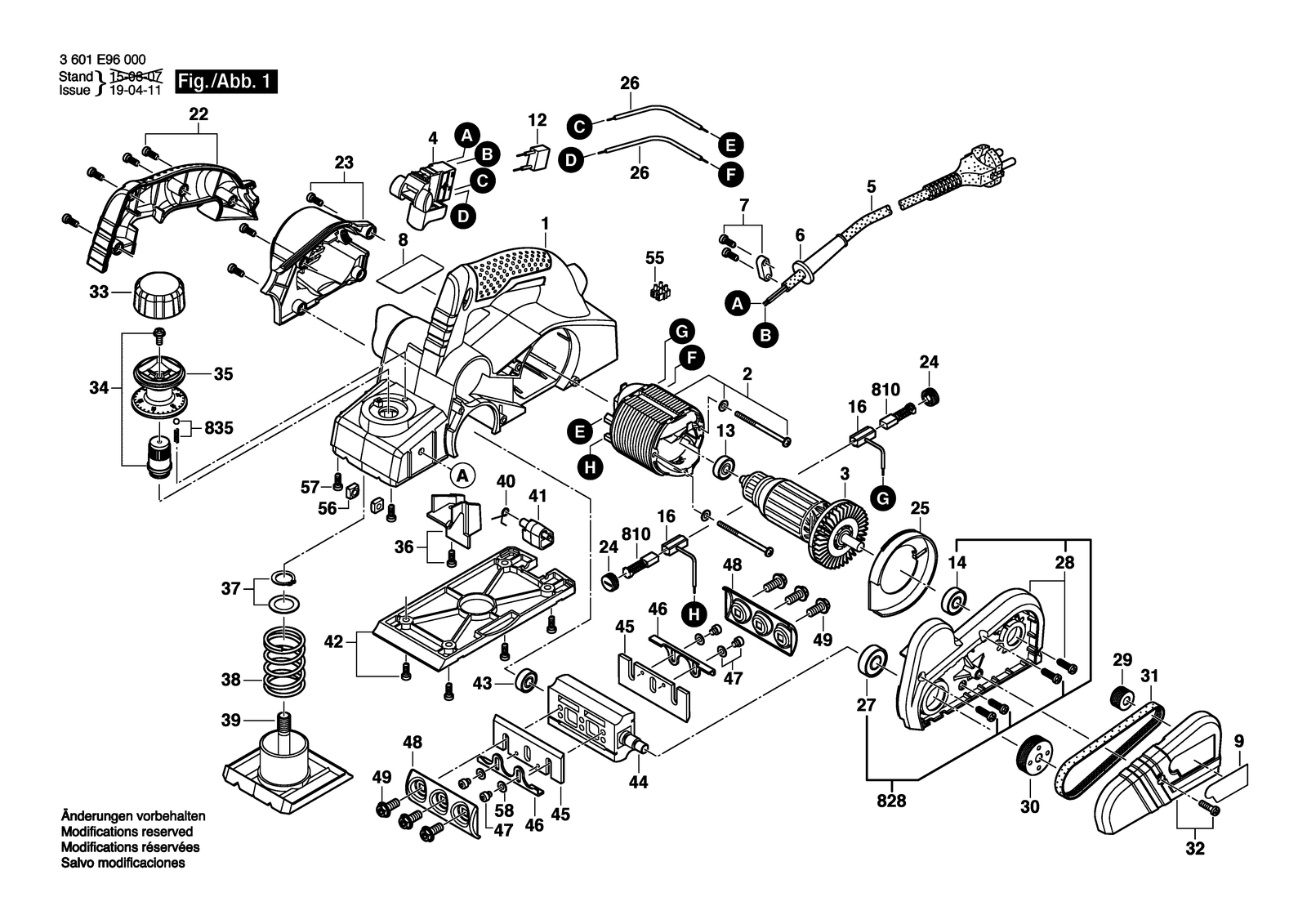

Bosch GHO 6500 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PA7989 | Motor Housing |
| 12 | 1619PA7985 | Suppression Capacitor |
| 13 | 1619PA7994 | Groove ball bearing |
| 14 | 1619PA7998 | Groove ball bearing |
| 16 | 1619PA7995 | Carbon Brush Holder |
| 2 | 1619PA7991 | Field 220-240V |
| 22 | 1619PA7986 | Handle |
| 23 | 1619PA7987 | Cover |
| 24 | 1619PA7988 | Brush-Cover |
| 25 | 1619PA7992 | Air-Deflector Ring |
| 26 | 1619PA7981 | Connecting Cable |
| 27 | 1619PA7999 | Groove ball bearing |
| 28 | 1619PA8035 | Bearing Flange |
| 29 | 1619PA8000 | Pulley |
| 3 | 1619PA7993 | Armature 220-240V |
| 30 | 1619PA8001 | Pulley |
| 31 | 1619PB5920 | V-Belt |
| 32 | 1619PA8003 | Gear Cover |
| 33 | 1619PA8004 | Cover |
| 34 | 1619PA8006 | Cap Nut |
| 35 | 1619PA8005 | Adjustment Knob |
| 36 | 1619PA7990 | Cover |
| 37 | 1619PA8007 | Retaining snap ring |
| 38 | 1619PA8008 | Compression Spring |
| 39 | 1619PA8009 | Adjusting Plate |
| 4 | 1619PB4002 | Switch Kit |
| 40 | 1619PA8011 | Spring |
| 41 | 1619PA8012 | Knife Guard |
| 42 | 1619PA8010 | Base Plate |
| 43 | 2600905051 | Groove ball bearing 7X19X6 |
| 44 | 1619PA8013 | Cutting Head |
| 45 | 2609110357 | Planing knife |
| 46 | 2602316001 | Stop Holding Device |
| 47 | 2603433001 | Torx Oval-Head Screw |
| 48 | 2609110064 | Clamping jaws |
| 49 | 2609110084 | Straining Screw |
| 5 | 1619PA7979 | Power supply cord |
| 5 | 1619PB5630 | Power supply cord |
| 55 | 1619PA8720 | Socket |
| 56 | 2603320004 | Square Nut M6 |
| 57 | 1619PA8722 | Screw |
| 58 | 2916069088 | Spring Washer |
| 6 | 1619PA8026 | Grommet |
| 651 | 1619PA8020 | Guide Bracket |
| 652 | 2607970002 | Feeler Gauge |
| 653 | 2607950025 | Hexagon-Socket Key |
| 654 | 2608133002 | Blade Sharpening Device |
| 7 | 1619PA7982 | Clamping Piece |
| 8 | 160111A80E | Nameplate |
| 8 | 1619PB0230 | Nameplate |
| 8 | 1619PB0411 | Nameplate |
| 810 | 2609120398 | Carbon Brush |
| 828 | 1619PA7997 | Bearing Flange |
| 835 | 1619PB4296 | Spring |
| 9 | 1619PA7965 | Manufacturer's nameplate GHO 6500 |
