Bosch GHO 40-82 C
Bosch GHO 40-82 C portable planer: exploded parts diagram, 2 sheets, 79 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

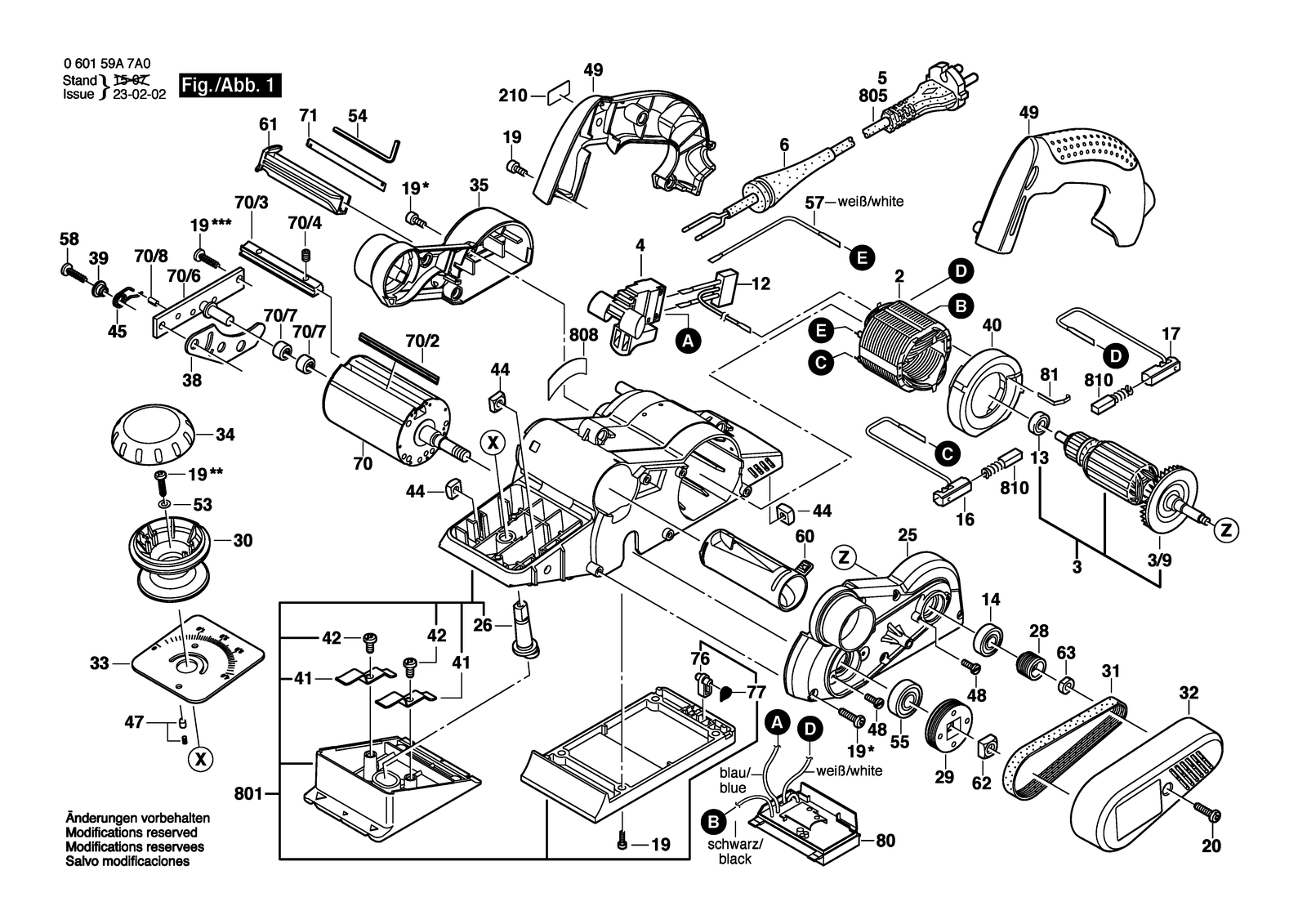

All parts of Bosch GHO 40-82 C: 79 positions on 2 sheets
Bosch GHO 40-82 C parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 12 | 2607329148 | Suppression Filter |
| 13 | 2600905051 | Groove ball bearing 7X19X6 |
| 14 | 2600905052 | Groove ball bearing 8X22X7 |
| 16 | 2604449026 | Brush Holder |
| 17 | 2604449027 | Brush Holder |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220617 | Field 100-115V |
| 2 | 2604220663 | Field 220-240V |
| 20 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 210 | 1601110310 | Reference Plate |
| 25 | 2605719033 | Bearing Flange |
| 26 | 2606110001 | Adjusting Eccentric |
| 28 | 2600324010 | Pulley Wheel |
| 29 | 2600324012 | Pulley Wheel |
| 3 | 2604011322 | Armature 230-240V |
| 3 | 2604011367 | Armature 110V |
| 3/9 | 2606610116 | Fan |
| 30 | 2602026120 | Rotary Handle |
| 31 | 2604736013 | V-Belt |
| 32 | 2605510207 | Gear Cover |
| 33 | 2601120009 | Scale Plate |
| 34 | 2605500178 | Cap-Handle |
| 35 | 2605510208 | Brush-Cover |
| 38 | 2601098036 | Sheet metal cover |
| 39 | 2600324008 | Guide Bushing |
| 4 | 1607200158 | Switch |
| 40 | 2600290009 | Air-Deflector Ring |
| 41 | 2601290016 | Spring Plate |
| 42 | 2603435027 | Thread-forming tap. Screw M 5X12 MM |
| 44 | 2603320004 | Square Nut M6 |
| 45 | 2604651007 | Torsion Spring |
| 47 | 2600590006 | Ratchet Cap |
| 48 | 2603433000 | Screw and washer assembly |
| 49 | 2605133024 | Handle |
| 5 | 1604460403 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460210 | Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460222 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 53 | 2916011010 | Plain Washer DIN 125-A4,3-ST |
| 54 | 2607950045 | Offset Screwdriver |
| 55 | 2600905064 | Groove ball bearing 10X26X8 |
| 57 | 2604448059 | Connecting Cable |
| 58 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 60 | 2600409028 | Deflector Pipe |
| 61 | 2600508053 | Plug-in module |
| 62 | 2603320003 | Square Nut M8 |
| 63 | 2603342006 | Round Nut Lefthand Threads M6 |
| 684 | 2609170013 | Dust Bag |
| 686 | 2608005015 | Stop Bracket |
| 687/1 | 1601331039 | Stop Bracket |
| 687/2 | 2603480006 | Wing Screw |
| 687/4 | 1610210043 | O-Ring 4,0X1,5 MM |
| 687/5 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 687/6 | 2603480003 | Wing Screw M 6X16 MM |
| 687/7 | 1601332018 | Stop Bracket |
| 687/8 | 2910281201 | Round-Head Bolt DIN 603-M6X20 |
| 687/9 | 2610387875 | Hex Nut |
| 70 | 2608584683 | Planer Head |
| 70/2 | 2608635341 | Planing knife |
| 70/3 | 2603111001 | Gripping Wedge |
| 70/4 | 2603400016 | Set screw |
| 70/6 | 2605819012 | Bearing Bracket |
| 70/7 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 70/8 | 2917800303 | Coiled Spring Pin DIN 7343-3,5X8 MM |
| 71 | 2608635341 | Planing knife |
| 76 | 2601329097 | Knife Guard |
| 77 | 2604651016 | Torsion Spring |
| 80 | 2607233064 | Speed governor 230-240V |
| 80 | 2607233068 | Speed governor 110V |
| 801 | 2605190917 | Housing |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 160111A36R | Nameplate |
| 808 | 160111A36S | Nameplate |
| 808 | 160111A36U | Nameplate |
| 808 | 160111A36V | Nameplate |
| 81 | 2601329110 | Contact Strap |
| 810 | 2607014016 | Carbon-Brush Set |
| 810 | 2607014018 | Carbon-Brush Set |
