Bosch GHO 31-82 portable planer: exploded parts diagram, 2 sheets, 87 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

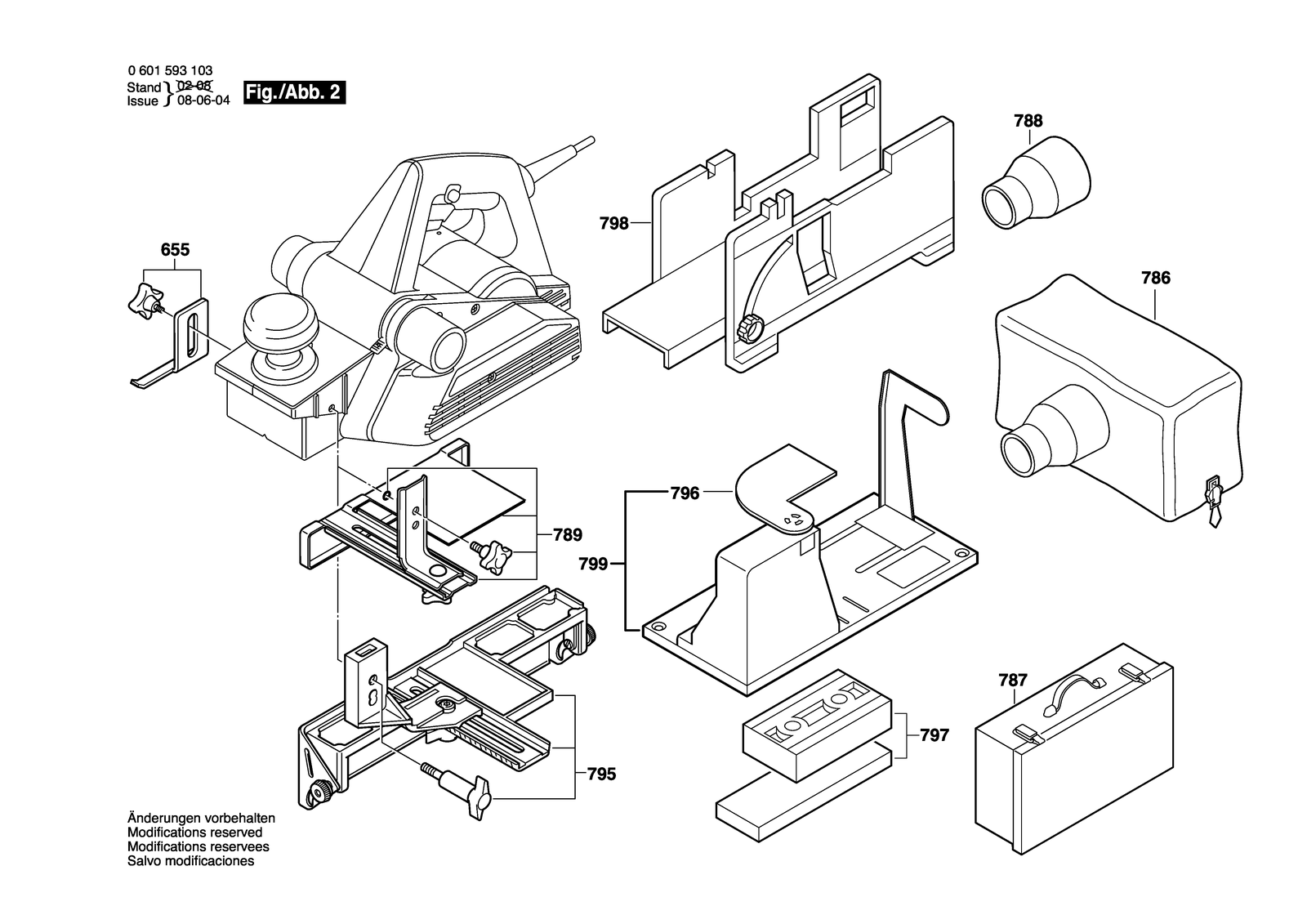

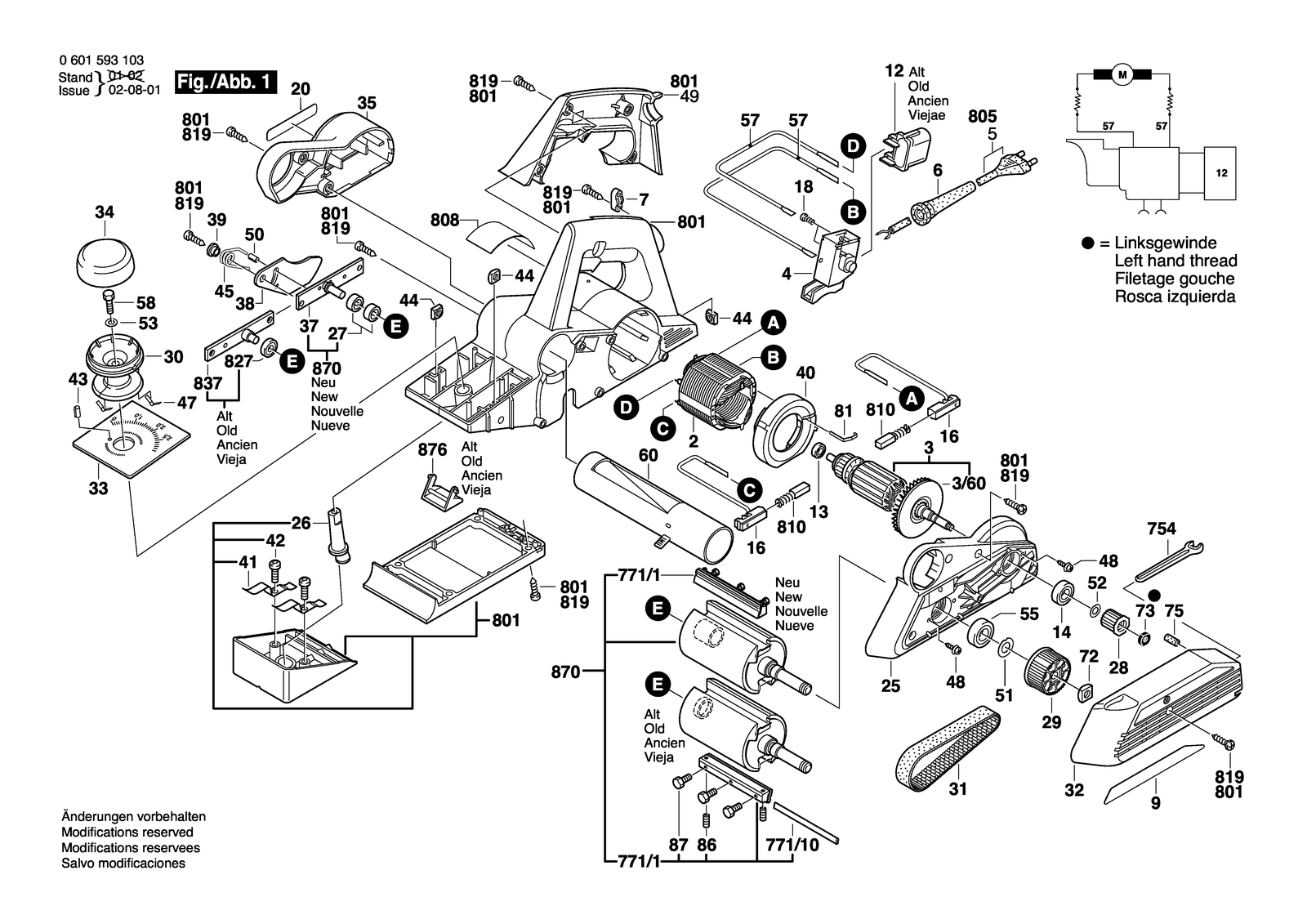

All parts of Bosch GHO 31-82: 87 positions on 2 sheets
Bosch GHO 31-82 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 12 | 1607328028 | Suppression Filter |
| 13 | 2600905051 | Groove ball bearing 7X19X6 |
| 14 | 2600905052 | Groove ball bearing 8X22X7 |
| 16 | 2604449027 | Brush Holder |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 2 | 2604220480 | Field 230-240V |
| 2 | 2604220481 | Field 240V |
| 2 | 2609120464 | Field 120V |
| 20 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 25 | 2605719003 | Bearing Flange Black |
| 26 | 2606110001 | Adjusting Eccentric |
| 27 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 28 | 2600324009 | Toothed Belt Wheel Z=19 |
| 29 | 2606625009 | Toothed Belt Wheel Z=43 |
| 3 | 2604010762 | Armature 110-115V |
| 3 | 2604010763 | Armature 230V |
| 3 | 2604010764 | Armature 240V |
| 3/60 | 2606610049 | Fan |
| 30 | 2602026004 | Rotary Handle Black |
| 31 | 2609995917 | Toothed Belt 17 Mm, Z=89 |
| 32 | 2605510064 | Gear Cover Black |
| 33 | 2601120000 | Scale Plate |
| 34 | 2605500105 | Cap-Handle |
| 35 | 2605510063 | Brush-Cover Black |
| 37 | 2605819011 | Bearing Bracket |
| 38 | 2601098036 | Sheet metal cover |
| 39 | 2600324008 | Guide Bushing |
| 4 | 1607000231 | On-Off Switch |
| 4 | 2607200254 | Switch |
| 4 | 2607200367 | Switch |
| 40 | 2600290009 | Air-Deflector Ring |
| 41 | 2601290016 | Spring Plate |
| 42 | 2603435027 | Thread-forming tap. Screw M 5X12 MM |
| 43 | 2917800053 | Coiled Spring Pin DIN 7343-5X2,5 |
| 44 | 2603320004 | Square Nut M6 |
| 45 | 2604651007 | Torsion Spring |
| 47 | 2601254000 | Ratchet Spring |
| 48 | 2603433000 | Screw and washer assembly |
| 49 | 2605133026 | Handle Plate |
| 5 | 1604460235 | Power supply cord ARG 2,7M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460403 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460074 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460185 | Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2 |
| 5 | 2604460210 | Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460222 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460284 | Power supply cord I / BR 4,15M 2 X 1,0MM H05 Rn-F |
| 50 | 2917800303 | Coiled Spring Pin DIN 7343-3,5X8 MM |
| 51 | 2600100041 | Plain Washer DIN 315-M8-GT-C |
| 52 | 1600100632 | Shim Thick 0,2 MM |
| 53 | 2916011010 | Plain Washer DIN 125-A4,3-ST |
| 55 | 2600905064 | Groove ball bearing 10X26X8 |
| 57 | 2604448062 | Connecting Cable White L = 288 MM |
| 57 | 2604448196 | Connecting Cable |
| 58 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 6 | 1600703026 | Grommet Ø7,2-Ø9,5X81 MM |
| 6 | 1600703033 | Grommet Ø8,3-Ø10,5X81 MM |
| 60 | 2600409022 | Deflector Pipe Black |
| 655 | 2607001045 | Depth-Gauge |
| 7 | 2601035001 | Cable Clip |
| 72 | 2603320003 | Square Nut M8 |
| 73 | 2603342006 | Round Nut Lefthand Threads M6 |
| 75 | 2603100053 | Rubber Buffer |
| 754 | 2607950504 | Single-Head Eng. Wrench |
| 771/1 | 2608040039 | Grip-Spring Tensioning E |
| 771/10 | 2608635341 | Planing knife |
| 786 | 2609170013 | Dust Bag |
| 787 | 2605438474 | Carrying Case |
| 788 | 2605702022 | Suction Connector |
| 789 | 2607000102 | Parallel-Guide |
| 795 | 2607001077 | Width Stop |
| 796 | 2607001106 | Knife Guard |
| 797 | 2608133001 | Blade Sharpening Device |
| 798 | 0603095000 | Straightening Device |
| 799 | 0603095002 | Base |
| 801 | 2605190914 | Housing |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 81 | 2601329053 | Contact Strap |
| 810 | 2604321905 | Carbon-Brush Set |
| 819 | 2603490022 | Screw 4X16 |
| 827 | 2600905037 | Groove ball bearing 6X19X6 |
| 837 | 2605819004 | Bearing Bracket |
| 86 | 2603400014 | Set screw |
| 87 | 2603450005 | Hex Screw |
| 870 | 2603204908 | Planer Head |
| 876 | 2601329055 | Knife Guard |
| 9 | 2601117953 | Manufacturer's nameplate |
