Bosch GHO 3-82

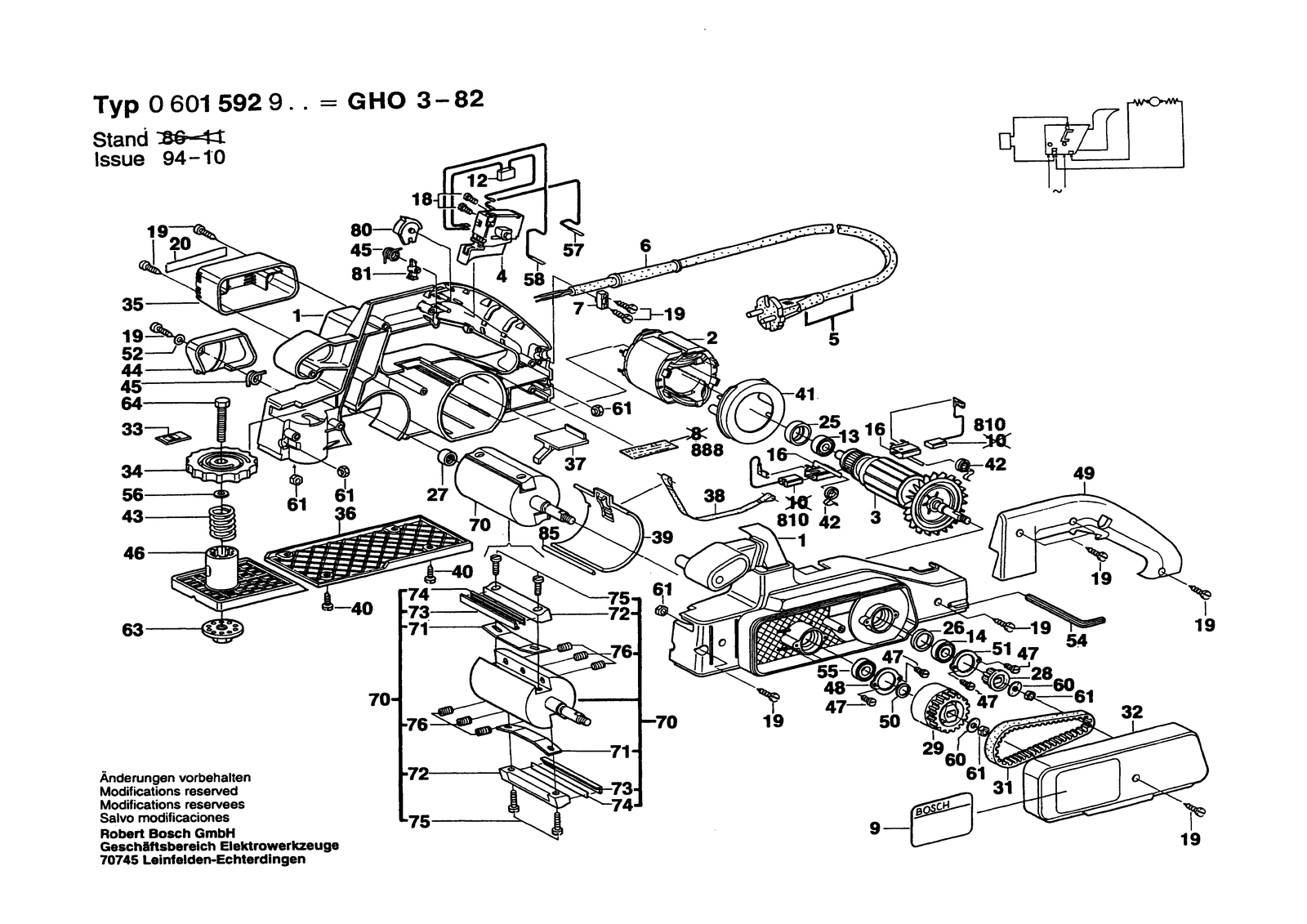

Bosch GHO 3-82 portable planer: exploded parts diagram, 1 sheet, 80 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GHO 3-82: 80 positions on 1 sheet
Bosch GHO 3-82 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104981 | Housing Section Blue |
| 12 | 1607328028 | Suppression Filter |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1900905025 | Ball Bearing 9X26X8 |
| 16 | 2604337002 | Brush Holder |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 2 | 1604220231 | Field 220V |
| 2 | 1604220362 | Field 240V |
| 2 | 1614220132 | Field 100V |
| 2 | 1619P08136 | Field |
| 20 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 25 | 1600502020 | Rubber Bushing |
| 26 | 1600206026 | Intermediate Ring |
| 27 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 28 | 1606625026 | Toothed Belt Wheel Z=19 |
| 29 | 1606625025 | Toothed Belt Wheel Z=43 |
| 3 | 1604010286 | Armature 220V |
| 3 | 1604010287 | Armature 100V |
| 3 | 1604010288 | Armature 110-115V |
| 3 | 1604010289 | Parts Set 240V |
| 31 | 2604736002 | Toothed Belt 14 Mm, Z=85 |
| 32 | 3605500024 | Gear Cover Black |
| 33 | 1601099010 | Scale Window |
| 34 | 2606621001 | Graduated Dial |
| 35 | 3605510012 | Covering hood |
| 36 | 2608000067 | Base Plate |
| 37 | 3601320001 | Adjusting Slide |
| 38 | 1601006006 | Rubber band |
| 39 | 1605510142 | Protective Cover |
| 4 | 2607200260 | Switch |
| 4 | 2607200261 | On-Off Switch |
| 40 | 2910601320 | Tapping Screw DIN7982-ST3,9X19-C-H |
| 41 | 3600290011 | Air-Deflector Ring |
| 42 | 2604652008 | Spiral Spring |
| 43 | 1604619017 | Compression Spring |
| 44 | 1605510139 | Protective Cover |
| 45 | 1604651007 | Torsion Spring |
| 46 | 2608000059 | Adjusting Slide |
| 47 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 48 | 1600190016 | Tab Washer |
| 49 | 2605500081 | Handle Cover |
| 5 | 1604460123 | Power supply cord GB 240V 4,15M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460134 | Power supply cord J 4,2M 2 X 1,25MM Gummi |
| 5 | 1604460203 | Power supply cord GB 110V 4,15M 2 X 1,5MM H07RN-F |
| 5 | 1604460403 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1607000391 | Power supply cord |
| 5 | 2604460074 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460102 | Power supply cord I 4,15M 2 X 1,0MM H05VV-F |
| 5 | 2604460109 | Parts Set |
| 50 | 2600100033 | Shim |
| 51 | 2600190008 | Tab Washer |
| 52 | 2600100588 | Shim 0,5 MM |
| 54 | 1907950004 | Offset Screwdriver DIN 911, SW3 |
| 55 | 2600905052 | Groove ball bearing 8X22X7 |
| 56 | 3600100005 | Shim Thick 0,5 MM |
| 57 | 3604431005 | Connecting Cable White L=238 MM |
| 58 | 3604431006 | Connecting Cable White L=383 MM |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 60 | 2916160003 | Disc Spring DIN 2093-A12,5-GR-1 |
| 61 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 63 | 3603342003 | Adjusting Nut |
| 64 | 3603450005 | Hex Screw |
| 7 | 2601035001 | Cable Clip |
| 70 | 2603204900 | Planer Head |
| 71 | 1601234002 | Leaf Spring |
| 72 | 2608040027 | Pressure Bar |
| 73 | 2601334006 | Support clamp |
| 74 | 2608635341 | Planing knife |
| 75 | 2603410041 | Oval-Head Screw |
| 76 | 2912081193 | Set screw M 6X12 DIN 915-45H |
| 80 | 1602026055 | Rotary Knob |
| 81 | 2602061000 | Locking Lever |
| 810 | 2604320909 | Carbon Brush |
| 85 | 1600410003 | Slotted Spring Pin |
| 888 | 160111A3H3 | Nameplate |
| 9 | 2601110507 | Sticker |
