Bosch GHO 18V LI portable planer: exploded parts diagram, 2 sheets, 32 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GHO 18V LI: 32 positions on 2 sheets

Bosch GHO 18V LI parts list (2 sheets)

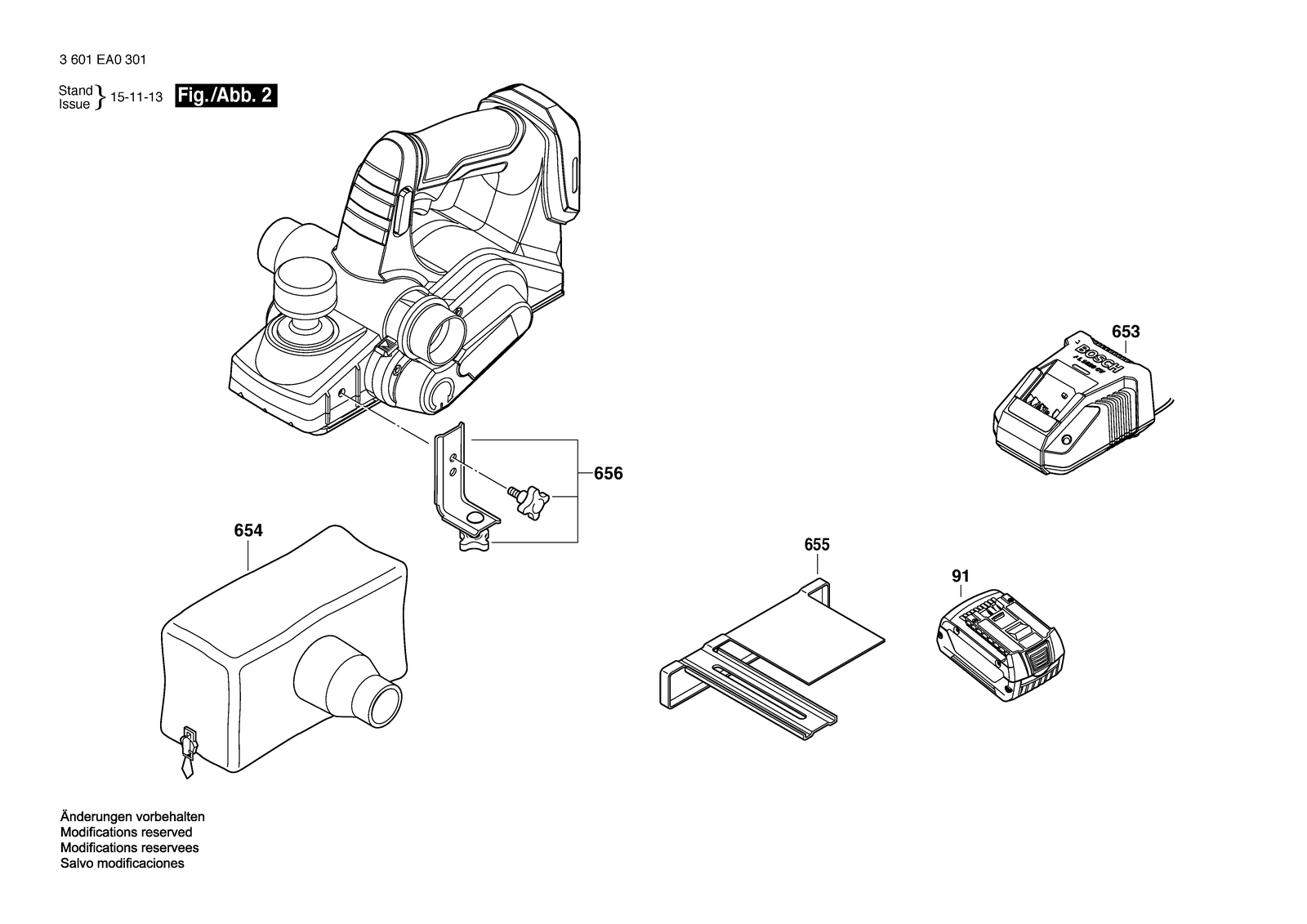

Bosch GHO 18V LI parts diagram, sheet 1Bosch GHO 18V LI parts diagram, sheet 2
No.Part numberPart name
192603490022Screw 4X16
202605133032Handle Dark Blue
212605500209Belt Cover Black
222600409026Deflector Pipe
252604736001Toothed Belt
272610942930Trigger
282610955167Locking Slide
322602026180Rotary Handle Black
331600A01BV3Ratchet Cap
332600590006Ratchet Cap
342603100056Damping rubber
402915011007Hex Nut DIN 934-M6-8-A
411907950003Offset Screwdriver DIN 911 SW2,5
421610910057Needle bearing Ø8XØ12X10 MM
51607233414Electronics Module
502608584003Planer Head
62604690055Compression Spring
6532607225921Charger EU GAL 1880 CV 230/14,4-18V
6532607225923Charger GB 230/10,8-18V, 30 42 S
6532607225933Charger Rok GAL 1880 CV 220V/14,4-18V
6542609170013Dust Bag
6552608005015Stop Bracket
6562607001047Parts Set
8012605105967Housing Dark Blue
8022606625910Drive Unit 18V
8041609280478Contact retainer
808160111A3RVNameplate
808160111A84HNameplate
8512608635341Planing knife
8532603400016Set screw
92601112052Manufacturer's nameplate GHO 18 V-Li
911607A350B2Battery Pack 18V 3.0AH LI Scm
