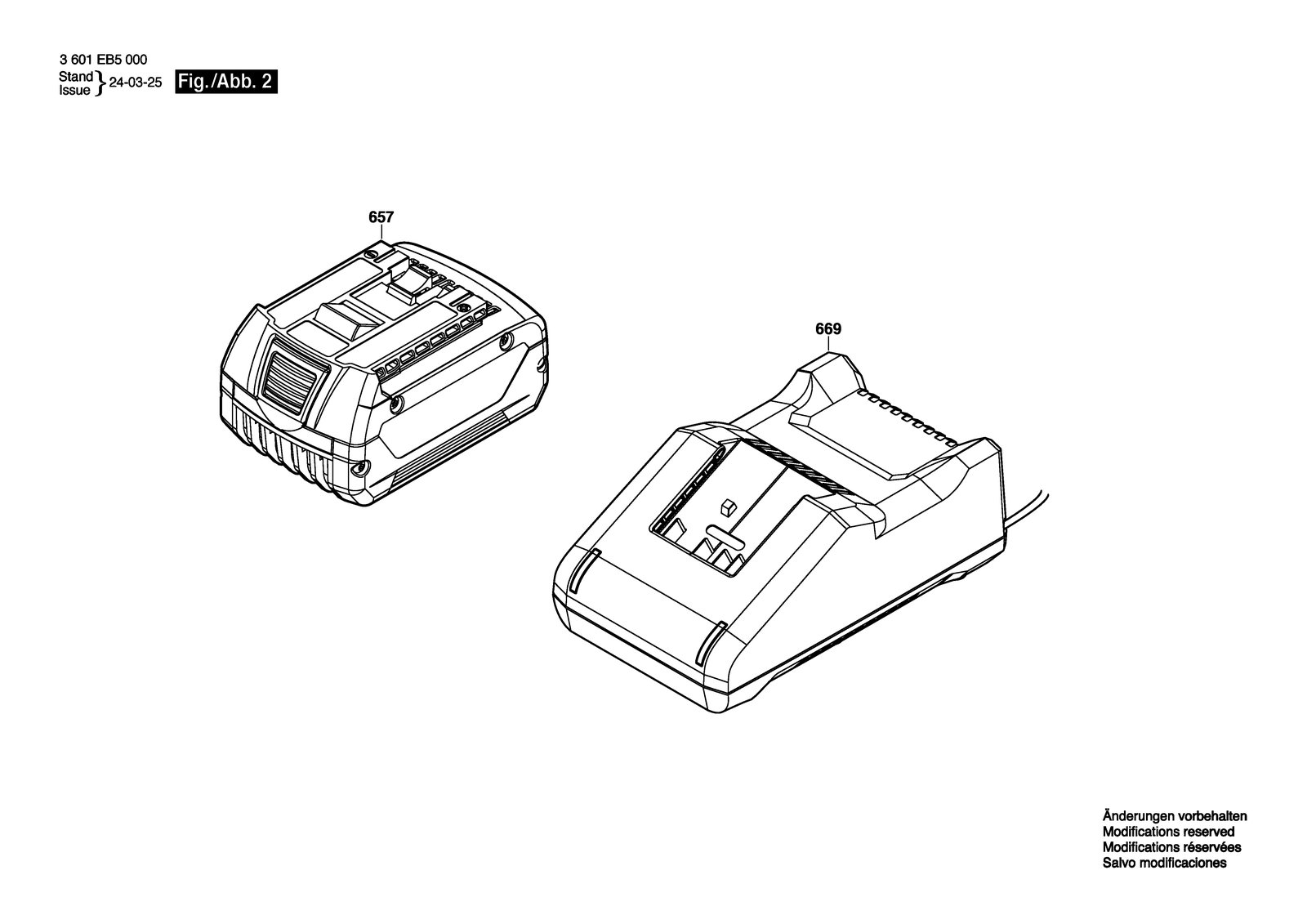

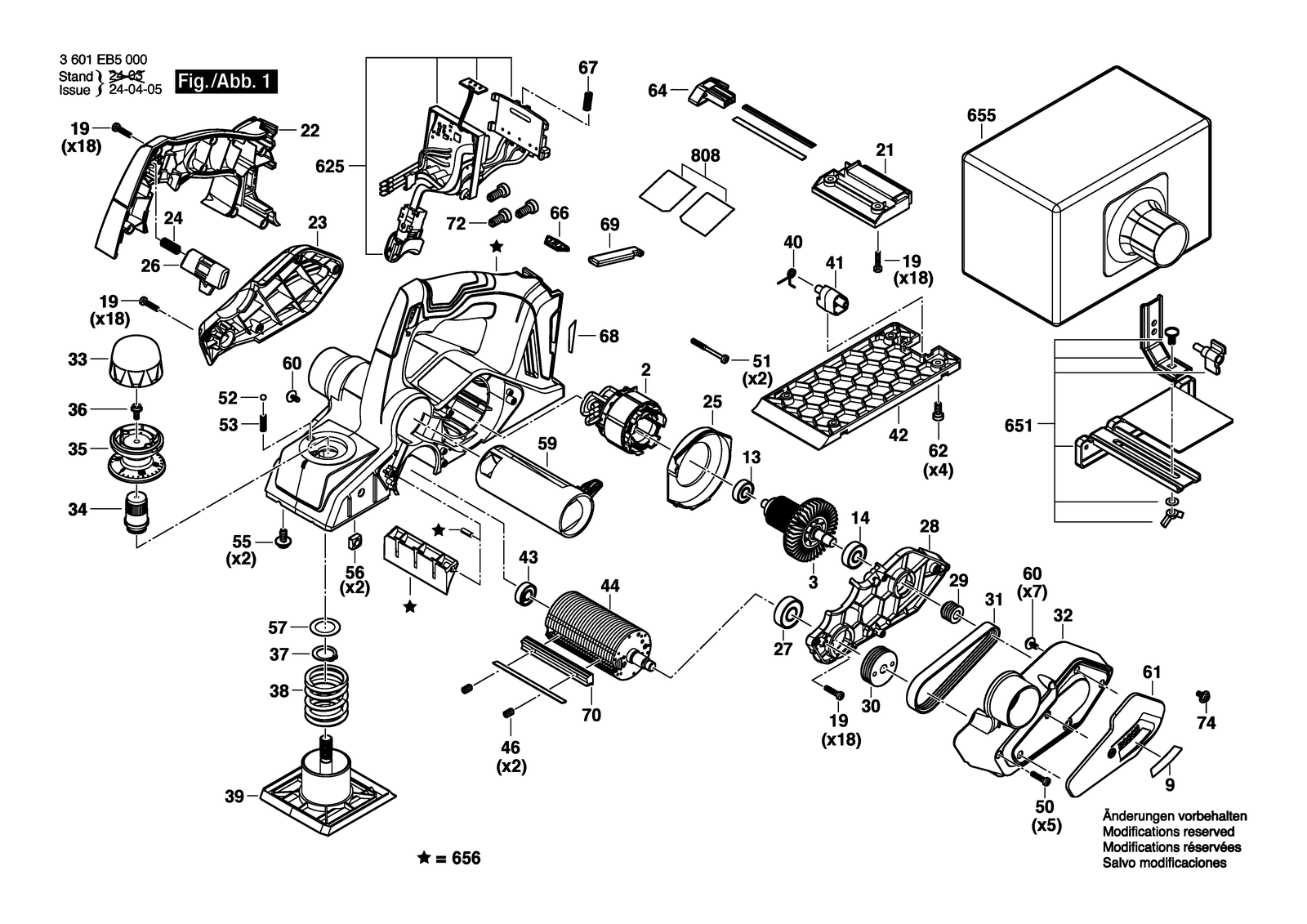

Bosch GHO 18V-26 portable planer: exploded parts diagram, 2 sheets, 70 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GHO 18V-26: 70 positions on 2 sheets
Bosch GHO 18V-26 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 13 | 1619PA7994 | Groove ball bearing |
| 14 | 1619PA7998 | Groove ball bearing |
| 19 | 1619PC1496 | Screw |
| 2 | 1619PC1494 | Field assembly |
| 21 | 1619PC1497 | Block |
| 22 | 1619PC1498 | Handle |
| 23 | 1619PC1499 | Cover |
| 24 | 1619PC1500 | Spring |
| 25 | 1619PC1501 | Air-Deflector Ring |
| 26 | 1619PC1502 | Slider |
| 27 | 1619PA7999 | Groove ball bearing |
| 28 | 1619PC1503 | Bearing Bracket |
| 29 | 1619PC1504 | Pulley |
| 3 | 1619PC1495 | Armature |
| 30 | 1619PC1505 | Pulley |
| 31 | 1619PB4266 | V-Belt |
| 32 | 1619PC1506 | Cover |
| 33 | 1619PC1507 | Cover |
| 34 | 1619PA8006 | Cap Nut |
| 35 | 1619PC1508 | Adjustment Knob |
| 36 | 1619PB4270 | Screw |
| 37 | 1619PB4271 | Retaining snap ring |
| 38 | 1619PA8008 | Compression Spring |
| 39 | 1619PC1509 | Adjusting Plate |
| 40 | 1619PB4272 | Spring |
| 41 | 1619PB4273 | Support |
| 42 | 1619PC1510 | Base Plate |
| 43 | 1619PB4340 | Groove ball bearing |
| 44 | 1619PS0662 | Cutting Head |
| 46 | 1619PS0663 | Set screw |
| 50 | 1619PC1511 | Screw |
| 51 | 1619PC1512 | Screw |
| 52 | 1619PB4283 | Steel ball |
| 53 | 1619PS0838 | Retaining snap ring |
| 55 | 1619PB4286 | Screw |
| 56 | 1619PA8721 | Square Nut |
| 57 | 1619PB4287 | Plain Washer |
| 59 | 1619PC1514 | Deflector Pipe |
| 60 | 1619PC1515 | Screw |
| 61 | 1619PC1516 | Cover |
| 62 | 1619PB4258 | Screw |
| 625 | 1619PB9267 | Printed Circuit Board |
| 64 | 1619PC1517 | Cover |
| 651 | 1619PS0839 | Guide Bracket |
| 655 | 1619PC1532 | Bag |
| 656 | 1619PC1561 | Motor Housing |
| 657 | 1607A35014 | Battery Pack GBA 18V 6,0AH M-c (cn) |
| 657 | 2607337069 | Battery Pack Bbs Mr, 18V, 5,0 AH 48 S |
| 657 | 2607337085 | Battery Pack Bbs Mr-Xl, 18V, 5AH Korea |
| 66 | 1619PC1518 | Cover |
| 669 | 2607225333 | Fast Charger ROK 230/10,8-18V, 30 Min |
| 669 | 2607225435 | Fast Charger ROK 220/10,8-18V, 1H |
| 669 | 2607225921 | Charger EU GAL 1880 CV 230/14,4-18V |
| 669 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 669 | 2607225925 | Charger Aus GAL 1880 CV 230/14,4-18V |
| 669 | 2607225933 | Charger Rok GAL 1880 CV 220V/14,4-18V |
| 669 | 2607226251 | Fast Charger EU GAL 18V-40, 230V/10,8V – 18V |
| 669 | 2607226253 | Fast Charger Gb GAL 18V-40 |
| 669 | 2607226281 | Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A |
| 669 | 2607226283 | Fast Charger UK GAL 18V-20 220-240V / 2A / 12-18V |
| 67 | 1619PC1519 | Compression Spring |
| 68 | 1619PC1471 | Sticker |
| 69 | 1619PC1520 | Block |
| 70 | 1619PS0664 | Gripping Wedge |
| 72 | 1619PC1521 | Connecting terminal |
| 74 | 1619PC1522 | Screw |
| 808 | 1619PC1463 | Nameplate |
| 808 | 1619PC1465 | Nameplate |
| 9 | 1619PS0831 | Manufacturer's nameplate |
| 9 | 1619PS0832 | Manufacturer's nameplate |
