Bosch GHO 16-82
Bosch GHO 16-82 portable planer: exploded parts diagram, 2 sheets, 64 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GHO 16-82: 64 positions on 2 sheets

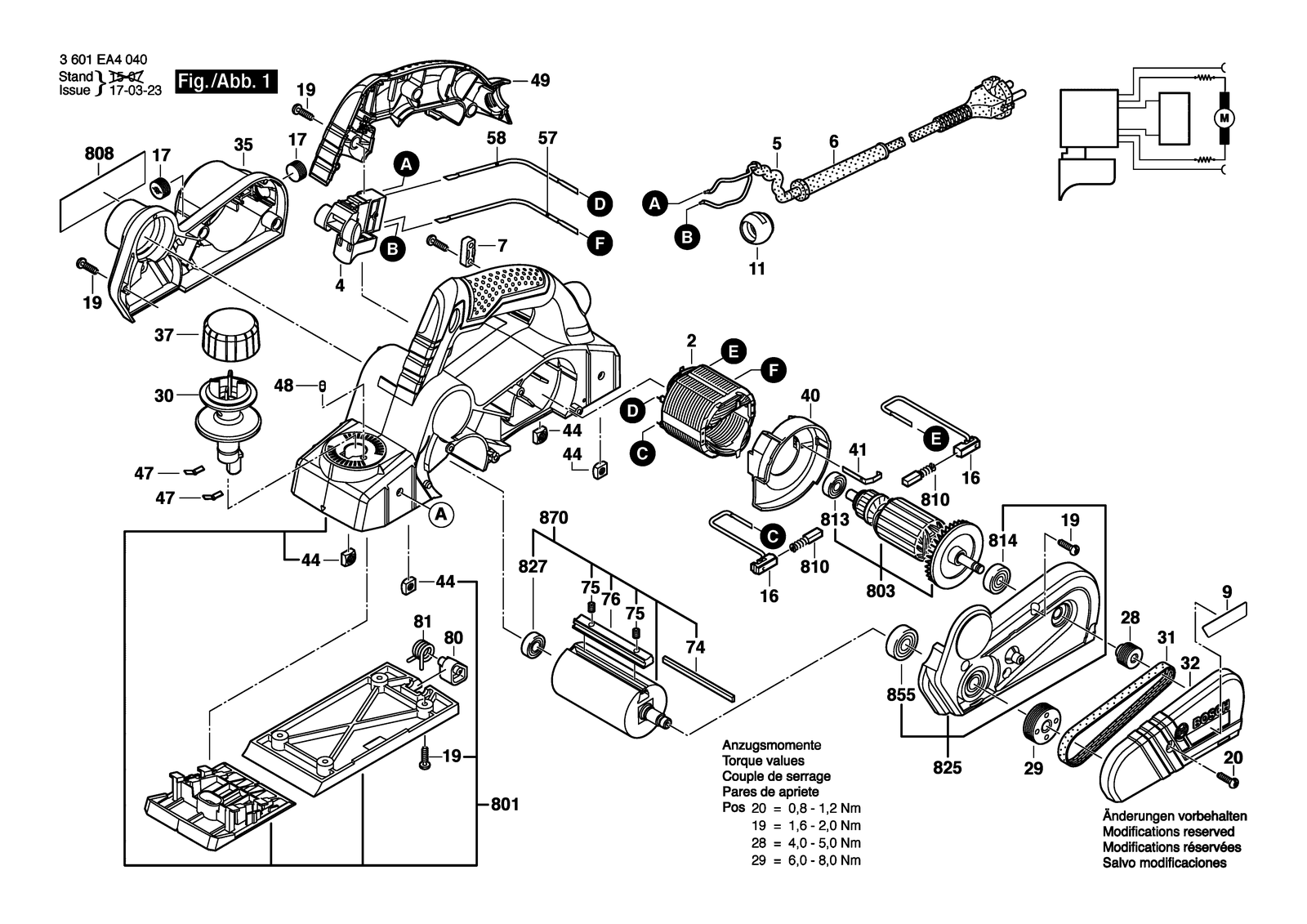

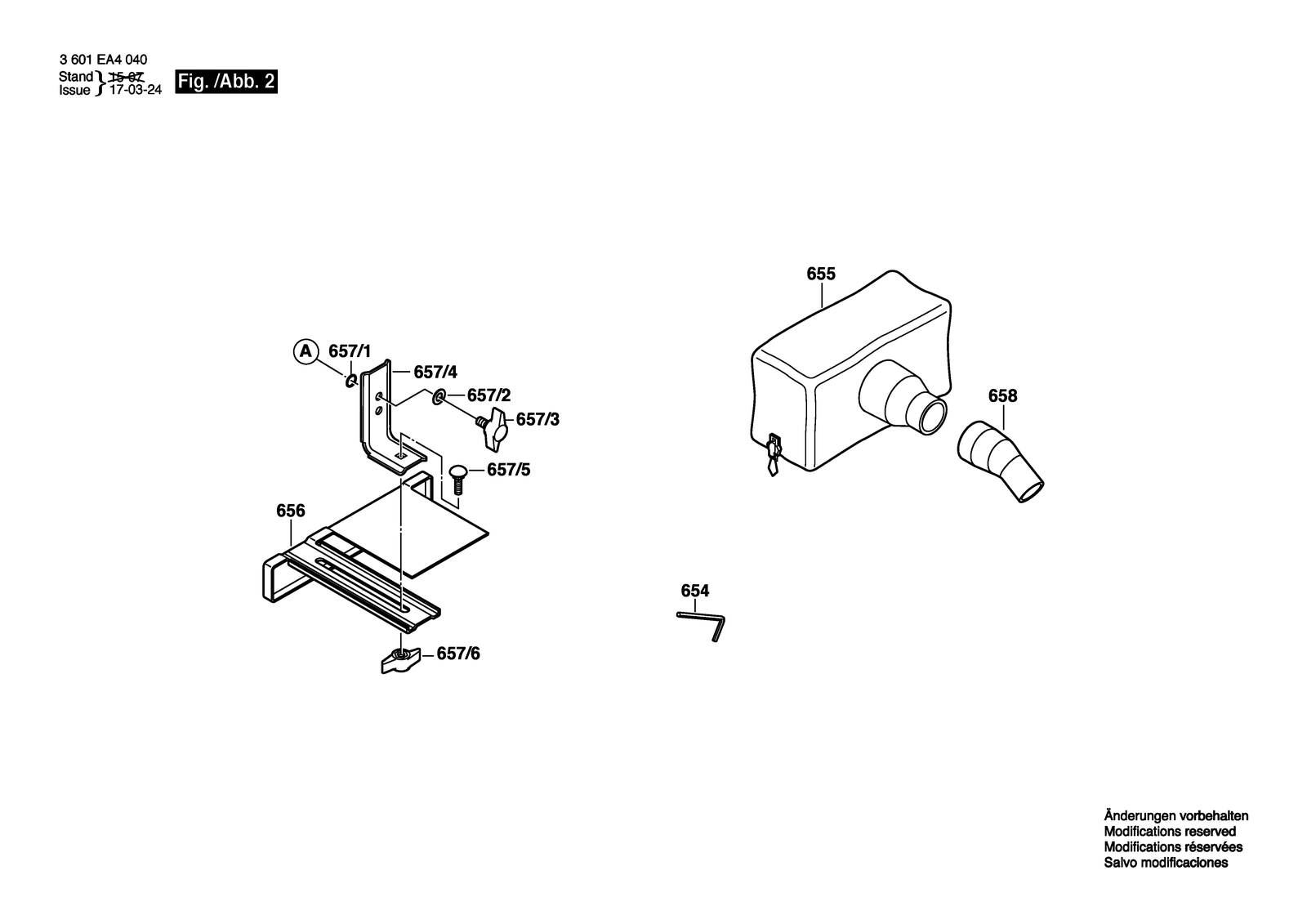

Bosch GHO 16-82 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 11 | 2609100929 | ball Joint |
| 16 | 2604449055 | Carbon Brush Holder |
| 17 | 2609100087 | Cover |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 1619PS0982 | Field |
| 2 | 2604220479 | Field 110-120V |
| 2 | 2604220480 | Field 230-240V |
| 20 | 2609112128 | Screw |
| 28 | 2609110268 | Pulley |
| 29 | 2609110267 | Pulley |
| 30 | 2609101577 | Rotary Knob |
| 31 | 2609100410 | V-Belt |
| 32 | 2609101439 | Belt Cover |
| 35 | 2609101404 | Brush-Cover |
| 37 | 2609101440 | Cap-Handle |
| 4 | 160720030F | Switch |
| 40 | 2609100028 | Air-Deflector Ring |
| 41 | 2601329053 | Contact Strap |
| 44 | 2603320004 | Square Nut M6 |
| 47 | 2601254000 | Ratchet Spring |
| 48 | 2600590006 | Ratchet Cap |
| 49 | 2609101517 | Handle Cover |
| 5 | 1604460196 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1604460264 | Power supply cord EU 230V 4,15M 2X0,75 MM H05VV-F |
| 5 | 1604460402 | Power supply cord CH 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460204 | Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 3604460058 | Power supply cord AUS 4,15M 2 X 0,75MM Pvc |
| 57 | 2604448181 | Connecting Cable White L=233 MM |
| 58 | 2604448118 | Connecting Cable Blue L=213 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 654 | 1907950003 | Offset Screwdriver DIN 911 SW2,5 |
| 655 | 2609170013 | Dust Bag |
| 656 | 2608005015 | Stop Bracket |
| 657/1 | 1610210043 | O-Ring 4,0X1,5 MM |
| 657/2 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 657/3 | 2603480003 | Wing Screw M 6X16 MM |
| 657/4 | 2609112158 | Stop Bracket |
| 657/5 | 2910281201 | Round-Head Bolt DIN 603-M6X20 |
| 657/6 | 2609199008 | Wing Nut |
| 658 | 2609101408 | Adapter module |
| 7 | 2601035001 | Cable Clip |
| 74 | 2608635341 | Planing knife |
| 75 | 2603400016 | Set screw |
| 76 | 2603111001 | Gripping Wedge |
| 80 | 2609100088 | Knife Guard |
| 801 | 2609199975 | Motor Housing |
| 803 | 2609199946 | Armature set 230-240V |
| 808 | 1600A00Y8Y | Nameplate |
| 808 | 1600A00Y8Z | Nameplate |
| 808 | 1600A00Y90 | Nameplate |
| 808 | 160111A532 | Nameplate |
| 808 | 160111A536 | Nameplate |
| 808 | 160111A5NG | Nameplate |
| 81 | 2609110109 | Spring |
| 810 | 2609120637 | Carbon-Brush Set |
| 813 | 2600905051 | Groove ball bearing 7X19X6 |
| 814 | 2600905052 | Groove ball bearing 8X22X7 |
| 825 | 2609199948 | Bearing Flange |
| 827 | 2600905051 | Groove ball bearing 7X19X6 |
| 855 | 2600905064 | Groove ball bearing 10X26X8 |
| 870 | 2609110193 | Planer Head |
| 9 | 160111A1Z0 | Manufacturer's nameplate GHO 16-82 D |
