Bosch GHO 14,4 V-LI

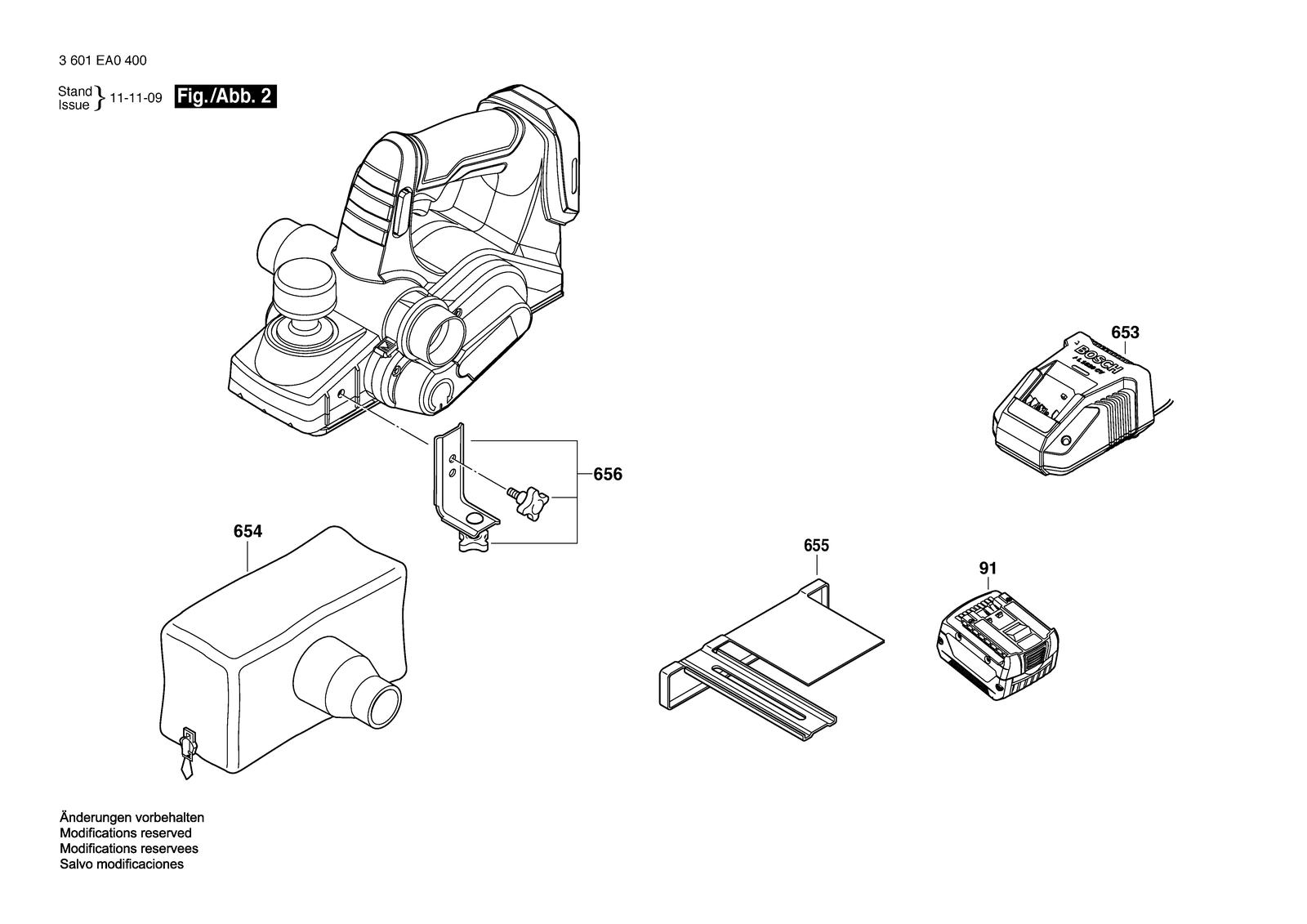

Bosch GHO 14,4 V-LI portable planer: exploded parts diagram, 2 sheets, 28 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GHO 14,4 V-LI: 28 positions on 2 sheets
Bosch GHO 14,4 V-LI parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 19 | 2603490022 | Screw 4X16 |
| 20 | 2605133032 | Handle Dark Blue |
| 21 | 2605500209 | Belt Cover Black |
| 22 | 2600409026 | Deflector Pipe |
| 25 | 2604736001 | Toothed Belt |
| 27 | 2610942930 | Trigger |
| 28 | 2610955167 | Locking Slide |
| 32 | 2602026180 | Rotary Handle Black |
| 33 | 2600590006 | Ratchet Cap |
| 34 | 2603100056 | Damping rubber |
| 40 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 41 | 1907950003 | Offset Screwdriver DIN 911 SW2,5 |
| 42 | 1610910057 | Needle bearing Ø8XØ12X10 MM |
| 5 | 1607233413 | Electronics Module |
| 50 | 2608584003 | Planer Head |
| 6 | 2604690055 | Compression Spring |
| 653 | 2607225321 | Charger EU 230/14,4-18V, 30 40 S |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 654 | 2609170013 | Dust Bag |
| 655 | 2608005015 | Stop Bracket |
| 656 | 2607001047 | Parts Set |
| 801 | 2605105967 | Housing Dark Blue |
| 802 | 2606625911 | Drive Unit 14,4V |
| 804 | 1609280474 | Contact retainer |
| 851 | 2608635341 | Planing knife |
| 853 | 2603400016 | Set screw |
| 9 | 2601112053 | Manufacturer's nameplate GHO 14,4 V-Li |
| 91 | 2607336813 | Battery Pack Bbs-Mr Xl-Pack 14,4V, Li, 4,0 Ah |
