Bosch GHO 14,4 V

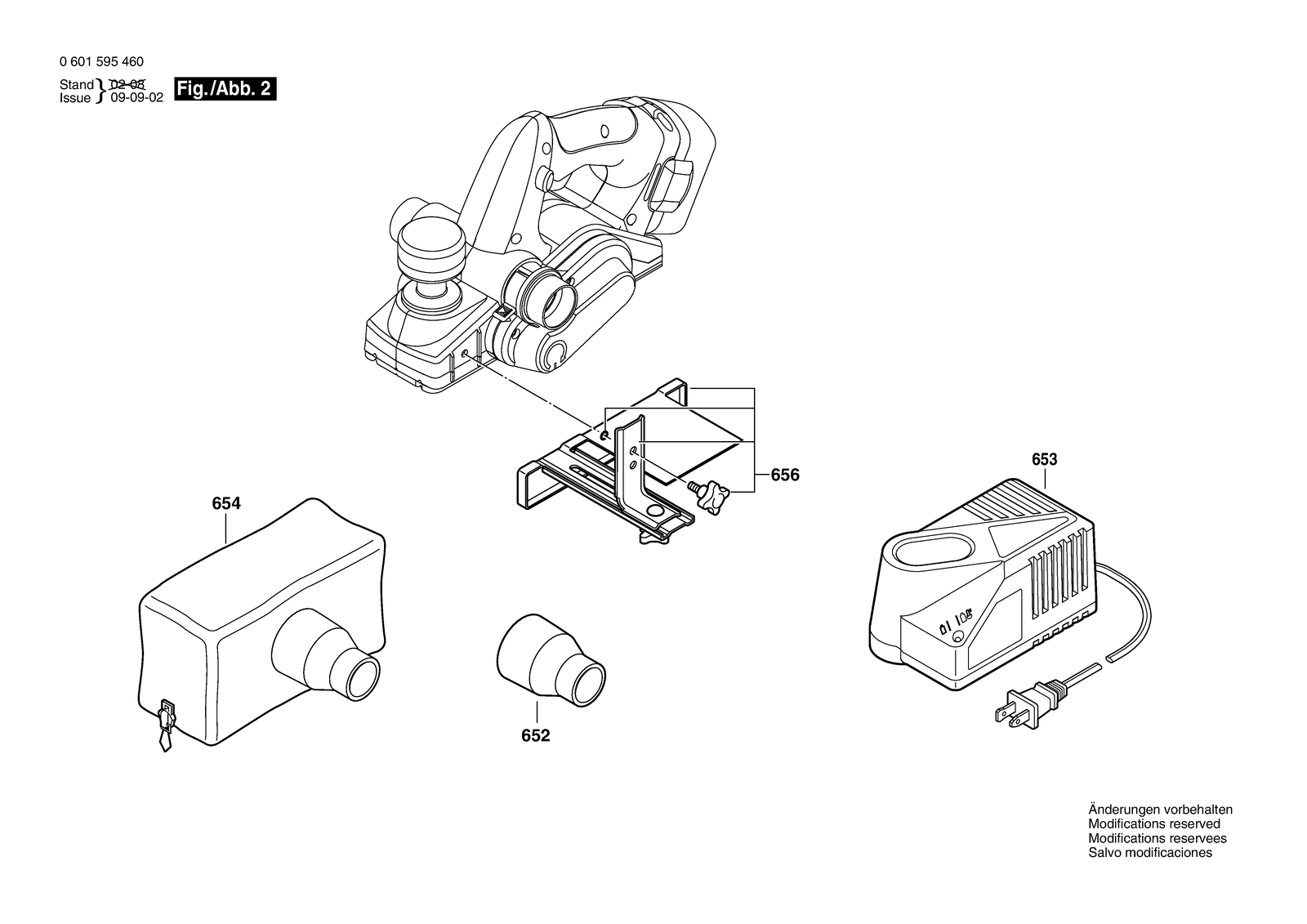

Bosch GHO 14,4 V portable planer: exploded parts diagram, 2 sheets, 68 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GHO 14,4 V: 68 positions on 2 sheets
Bosch GHO 14,4 V parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104773 | Housing Dark Blue |
| 1 | 2605104773 | Housing Dark Blue |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2607022304 | DC motor 18V |
| 2 | 2607022083 | DC motor 12V |
| 20 | 2601117986 | Reference Plate |
| 20 | 2601117986 | Reference Plate |
| 25 | 2604736001 | Toothed Belt |
| 25 | 2604736001 | Toothed Belt |
| 26 | 2603100056 | Damping rubber |
| 26 | 2603100056 | Damping rubber |
| 28 | 2602051002 | Locking Lever |
| 28 | 2602051002 | Locking Lever |
| 29 | 2604651017 | Compression Spring |
| 29 | 2604651017 | Compression Spring |
| 30 | 2605500174 | Gear Cover |
| 30 | 2605500174 | Gear Cover |
| 35 | 1610910057 | Needle bearing Ø8XØ12X10 MM |
| 35 | 1610910057 | Needle bearing Ø8XØ12X10 MM |
| 37 | 2602026094 | Handle Black |
| 37 | 2602026094 | Handle Black |
| 41 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 41 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 47 | 2600590006 | Ratchet Cap |
| 47 | 2600590006 | Ratchet Cap |
| 49 | 2605133023 | Handle Plate Dark Blue |
| 49 | 2605133022 | Handle Cover |
| 50 | 2608584003 | Planer Head |
| 50 | 2608584003 | Planer Head |
| 60 | 2600409026 | Deflector Pipe |
| 60 | 2600409026 | Deflector Pipe |
| 651 | 2607335717 | Accumulator package 18V,2,4AH, Hd |
| 651 | 2607335669 | Accumulator package 14,4V,2.0AH,NICD |
| 652 | 2605702023 | Suction Connector |
| 652 | 2605702023 | Suction Connector |
| 653 | 2607225033 | Fast Charger USA 120/7,2-24V, 30 Min. |
| 653 | 2607225033 | Fast Charger USA 120/7,2-24V, 30 Min. |
| 654 | 2609170013 | Dust Bag |
| 654 | 2609170013 | Dust Bag |
| 656 | 2610906264 | Parallel-Guide |
| 656 | 2610906264 | Parallel-Guide |
| 657 | 2609100101 | Protective Cap |
| 657 | 2609100101 | Protective Cap |
| 801 | 2605105921 | Housing Dark Blue |
| 801 | 2605105921 | Housing Dark Blue |
| 802 | 2607022252 | DC motor 18V |
| 802 | 2607022251 | DC motor 14,4V |
| 808 | 2601117985 | Marking Plate |
| 808 | 2601117984 | Marking Plate |
| 822 | 2606625909 | Toothed Belt Wheel |
| 822 | 2606625909 | Toothed Belt Wheel |
| 844 | 2604448255 | Connecting Cable |
| 844 | 2604448255 | Connecting Cable |
| 845 | 2604448256 | Connecting Cable |
| 845 | 2604448256 | Connecting Cable |
| 846 | 2607200451 | On-Off Switch |
| 846 | 2607200451 | On-Off Switch |
| 851 | 2608635341 | Planing knife |
| 851 | 2608635341 | Planing knife |
| 852 | 2603111001 | Gripping Wedge |
| 852 | 2603111001 | Gripping Wedge |
| 853 | 2603400016 | Set screw |
| 853 | 2603400016 | Set screw |
| 9 | 2601117988 | Sticker |
| 9 | 2601117987 | Sticker |
| 93 | 1907950003 | Offset Screwdriver DIN 911 SW2,5 |
| 93 | 1907950003 | Offset Screwdriver DIN 911 SW2,5 |
