Bosch GHO 14,4 V portable planer: exploded parts diagram, 2 sheets, 41 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GHO 14,4 V: 41 positions on 2 sheets

Bosch GHO 14,4 V parts list (2 sheets)

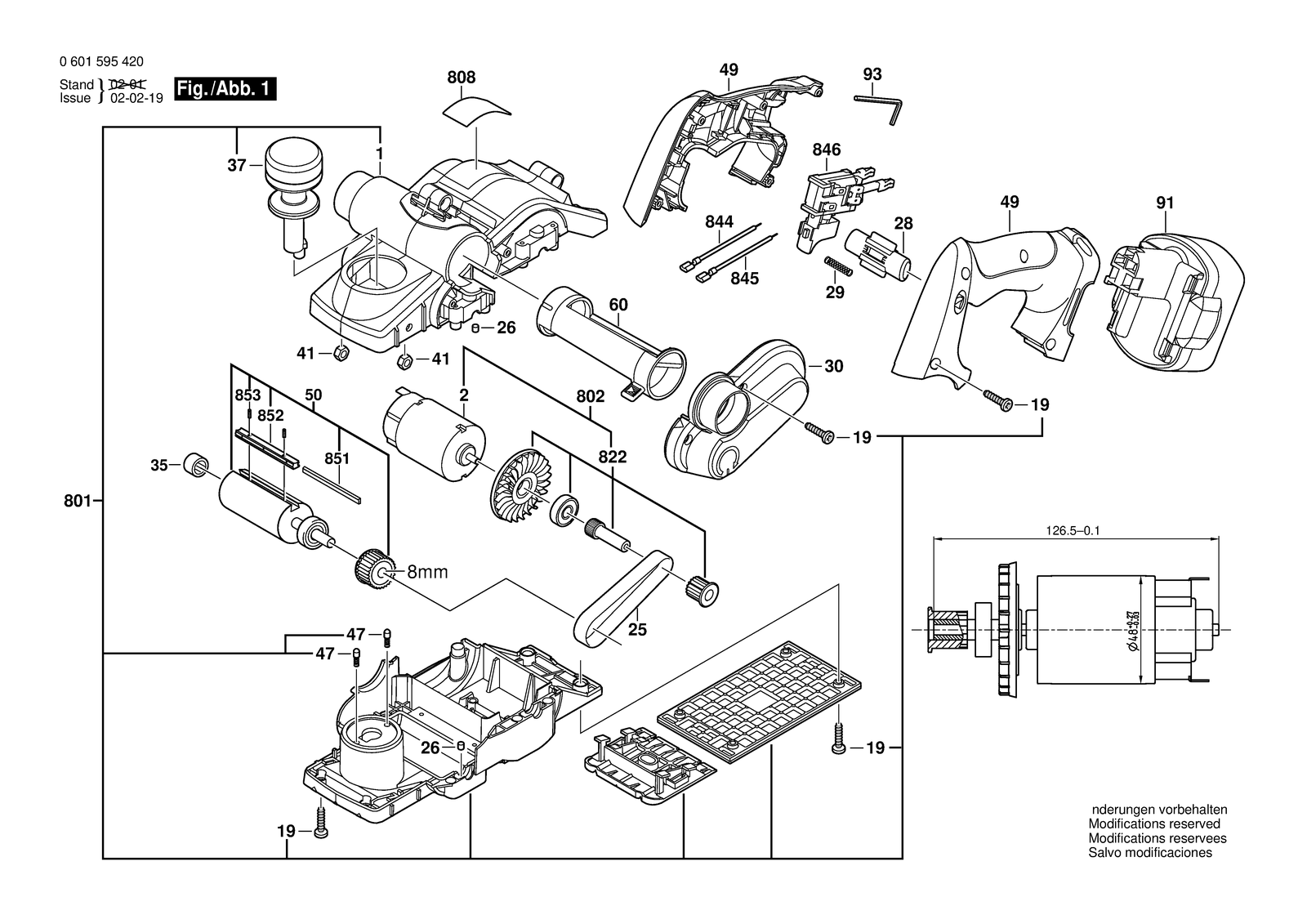

Bosch GHO 14,4 V parts diagram, sheet 1Bosch GHO 14,4 V parts diagram, sheet 2
No.Part numberPart name
12605104773Housing Dark Blue
192603490022Screw 4X16
22607022083DC motor 12V
252604736001Toothed Belt
262603100056Damping rubber
282602051002Locking Lever
292604651020Compression Spring
302605500166Gear Cover
351610910057Needle bearing Ø8XØ12X10 MM
372602026094Handle Black
412915011007Hex Nut DIN 934-M6-8-A
472600590006Ratchet Cap
492605133022Handle Cover
502608584003Planer Head
602600409026Deflector Pipe
6522605702023Suction Connector
6532607224425Fast Charger EU 230/7,2-24V, 1H
6532607224427Fast Charger GB 230/7,2-24V, 1H
6532607224443Fast Charger AUS 240/7,2-14,4V, 1H
6532607224701Fast Charger EU 230/7,2-14,4V, 30 Min.
6532607224703Fast Charger GB 230/7,2-14,4V, 30 Min.
6532607224711Fast Charger J 100/7,2-14,4V, 30 Min.
6532607224983Fast Charger BR 220/7,2-24V, 1H
6542609170013Dust Bag
6552608005015Stop Bracket
6562607001047Parts Set
8012605105921Housing Dark Blue
8022607022251DC motor 14,4V
8082601116878Marking Plate
8082601117807Marking Plate
8222606625909Toothed Belt Wheel
8442604448255Connecting Cable
8452604448256Connecting Cable
8462607200451On-Off Switch
8512608635341Planing knife
8522603111001Gripping Wedge
8532603400016Set screw
912607335263Slide-In Accu Package 14,4V,2,0AH,NICD
912607335685Slide-In Accu Package 14,4V, 2,6AH, Nimh
912607335699Slide-In Accu Package 14,4V, 2,0AH, Nimh
931907950003Offset Screwdriver DIN 911 SW2,5
