Bosch GHO 12V-20

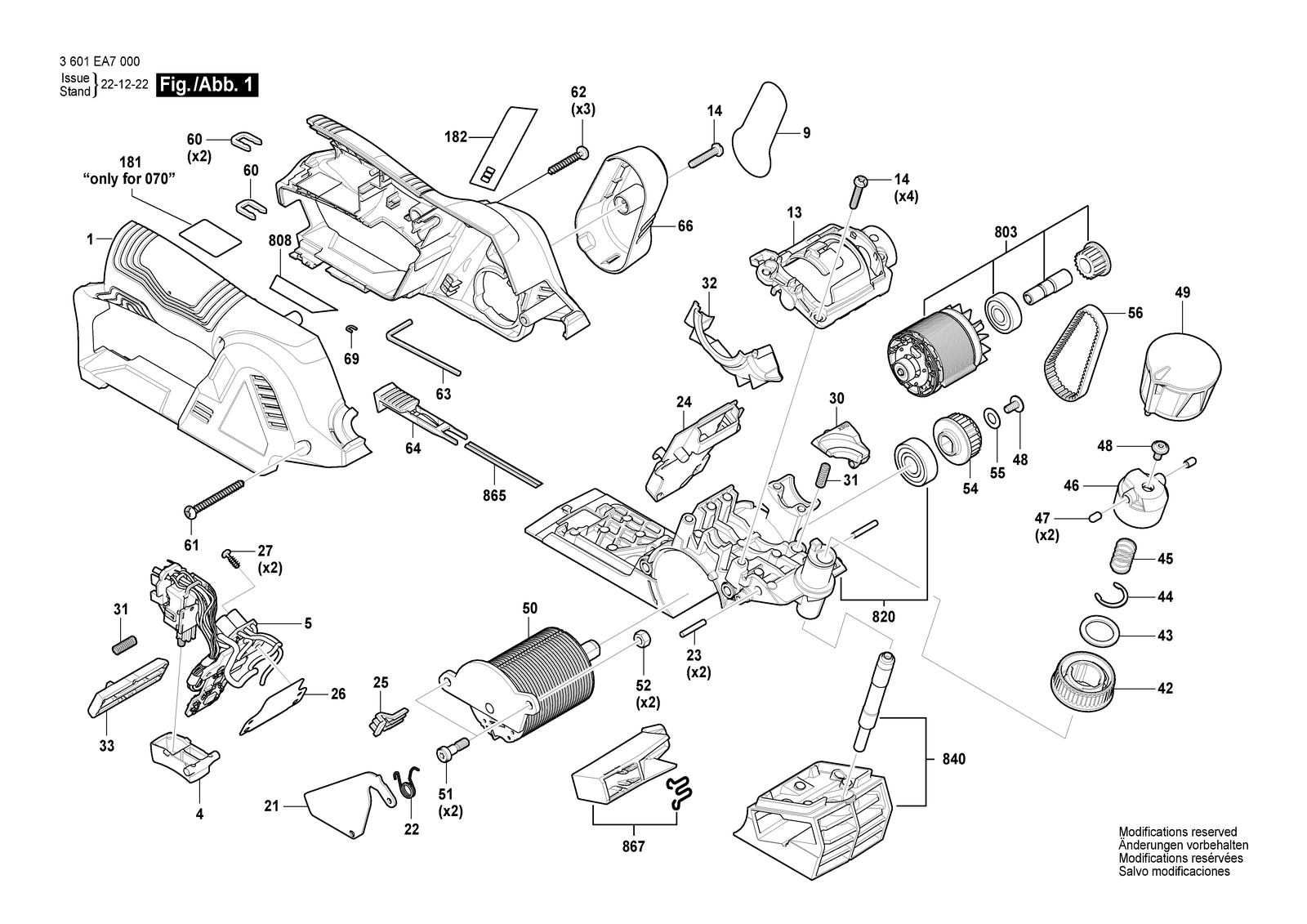

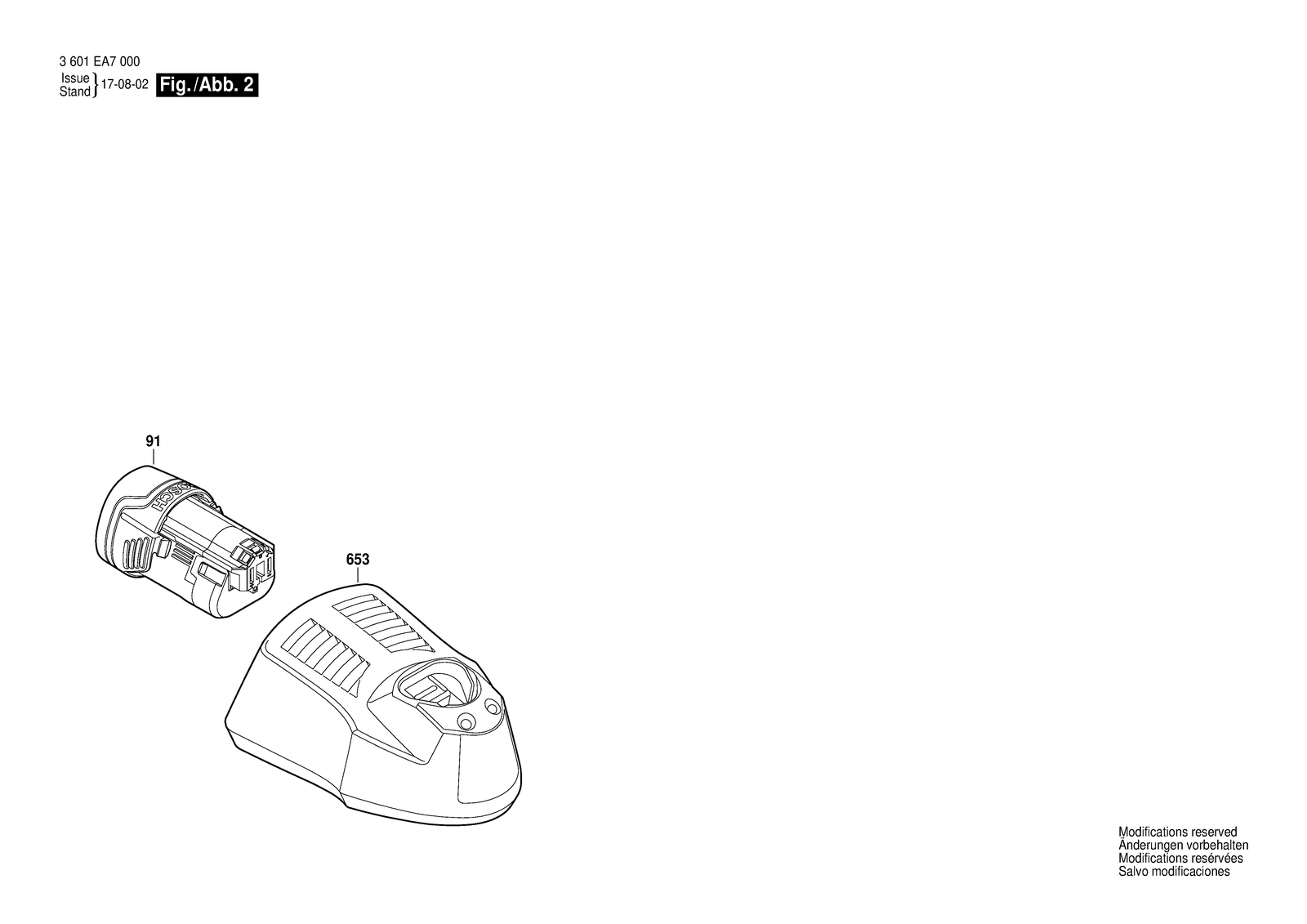

Bosch GHO 12V-20 planer/power tool: exploded parts diagram, 2 sheets, 59 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GHO 12V-20: 59 positions on 2 sheets
Bosch GHO 12V-20 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105221 | Housing Section |
| 13 | 2609270035 | Frame |
| 14 | 2603410051 | Thread-forming tap. Screw |
| 181 | 160111C5A3 | Reference Plate Gb |
| 182 | 2601120018 | Label |
| 21 | 2600034008 | Sheet metal cover |
| 22 | 2604651034 | Torsion Spring |
| 23 | 2917850080 | Straight Pin |
| 24 | 2609270036 | Frame |
| 25 | 2604448382 | Light Guide |
| 26 | 2600707082 | Insulating Foil |
| 27 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 30 | 2605191328 | Button |
| 31 | 2604690055 | Compression Spring |
| 32 | 2600148020 | Air Deflection |
| 33 | 2607200715 | Safety Switch |
| 4 | 2607200714 | Switch |
| 42 | 2600327009 | Threaded Ring |
| 43 | 2916190108 | Shim ring |
| 44 | 2600116099 | Spring retaining ring |
| 45 | 2604610156 | Compression Spring |
| 46 | 2600327008 | Rotary Knob |
| 47 | 1600A01BV3 | Ratchet Cap |
| 48 | 2609200575 | Screw |
| 49 | 2600451010 | Rotary Handle |
| 5 | 16072335D3 | Electronic Module |
| 50 | 2606338002 | Planer Head |
| 51 | 2609200574 | Screw |
| 52 | 2915011038 | Hex Nut M5-8-A |
| 54 | 2606625041 | Toothed Belt Wheel |
| 55 | 2918750129 | Spring Washer DIN 137-A6-X12CRNI17 7 |
| 56 | 2604736018 | Toothed Belt |
| 60 | 2609004706 | Clip |
| 61 | 2603490027 | Torx Oval-Head Screw 4X40 |
| 62 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 63 | 1907950003 | Offset Screwdriver DIN 911 SW2,5 |
| 64 | 2608042054 | Blade Holder |
| 653 | 2607225143 | Fast Charger J 100/10,8V, 30 Min. |
| 653 | 2607226199 | Fast Charger Kr GAL 12V-20 / 220V / 2A |
| 653 | 2607226219 | Fast Charger EU GAL 12V-40 |
| 653 | 2607226221 | Fast Charger GAL 12V-40 220V-240V 10,8-12V 4A |
| 653 | 2607226235 | Fast Charger Cn GAL 12V-40 |
| 66 | 2605500230 | Belt Cover |
| 69 | 2609004274 | Clip |
| 803 | 1607000CH4 | Drive Unit |
| 808 | 160111A54D | Nameplate |
| 808 | 160111A8NN | Nameplate |
| 808 | 160111A92M | Nameplate |
| 808 | 1607000CM6 | Nameplate |
| 808 | 1607000CM9 | Nameplate |
| 820 | 1607000CH6 | Base Plate |
| 840 | 1607000CH8 | Adjusting Plate |
| 865 | 1600A01953 | Planing knife |
| 867 | 1607000CJ0 | Chip Deflector |
| 9 | 160111C2BJ | Manufacturer's nameplate GHO 10,8V-20 |
| 9 | 2601120017 | Manufacturer's nameplate GHO 12V-20 |
| 91 | 1607A3506A | Battery Pack GBA 12V 3,0 Ah LI |
| 91 | 1607A3506D | Battery Pack GBA 10,8V 3,0 Ah LI Rok |
| 91 | 1607A3506E | Battery Pack GBA 10,8V 3,0 Ah LI J |
