Bosch GHG 630 DCE

Bosch GHG 630 DCE hot air gun: exploded parts diagram, 1 sheet, 40 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GHG 630 DCE: 40 positions on 1 sheet

Bosch GHG 630 DCE parts list (1 sheet)

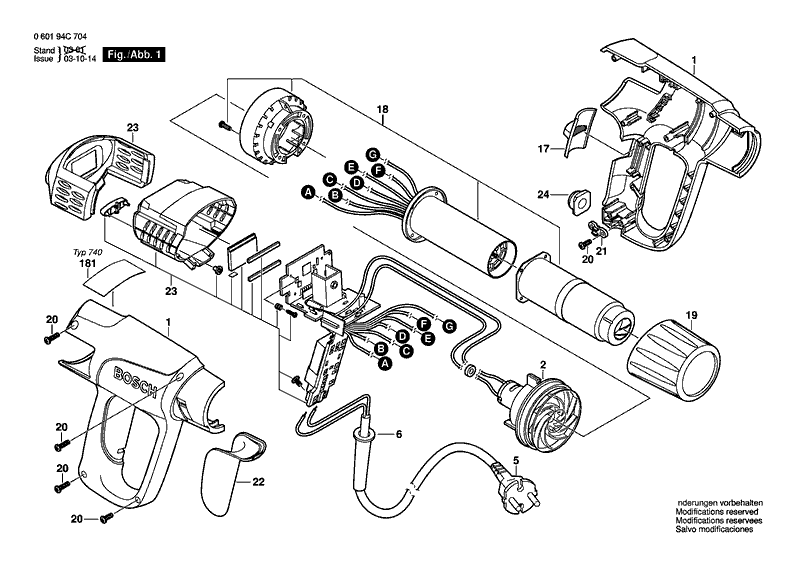

Bosch GHG 630 DCE parts diagram, sheet 1
No.Part numberPart name
11609203K39Housing Section
11609203K40Housing Section
11609203K43Housing Section
11609203K44Housing Section
11609203K41Housing Section
11609203K42Housing Section
11609203K45Housing Section
11609203M80Housing Section
11609203M81Housing Section
171609203H66Switch Button
171609203H66Switch Button
181609203H67Heating Element 220-230V
181609203J99Heating Element 240V
181609203H67Heating Element 220-230V
181609203M49Heating Element 115-120V
1811601118F61Warning Plate
191609203H61Protective Tube
191609203H61Protective Tube
21609202611DC motor 115-240V
21609202611DC motor 115-240V
21609202617DC motor 115-240V
202910615407Tapping Screw DIN 7981-ST2,9X16-F-H
202910615407Tapping Screw DIN 7981-ST2,9X16-F-H
211609203102Fastening Clamp
211609203102Fastening Clamp
221609203H62Cap-Handle
221609203H62Cap-Handle
231609203L51Connecting Block 115-240V
231609203L51Connecting Block 115-240V
241609203H65Rubber Base
241609203H65Rubber Base
51609202797Power supply cord
51609203103Power supply cord
51609203G64Power supply cord
51609203964Power supply cord I 2,5M 2 X 1MM H05RR-F
51609203995Power supply cord
51609203M64Power supply cord
51609203N25Power supply cord
61609202606Grommet
61609202606Grommet
