Bosch GHG 600-3

Bosch GHG 600-3 hot air gun: exploded parts diagram, 1 sheet, 19 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GHG 600-3: 19 positions on 1 sheet

Bosch GHG 600-3 parts list (1 sheet)

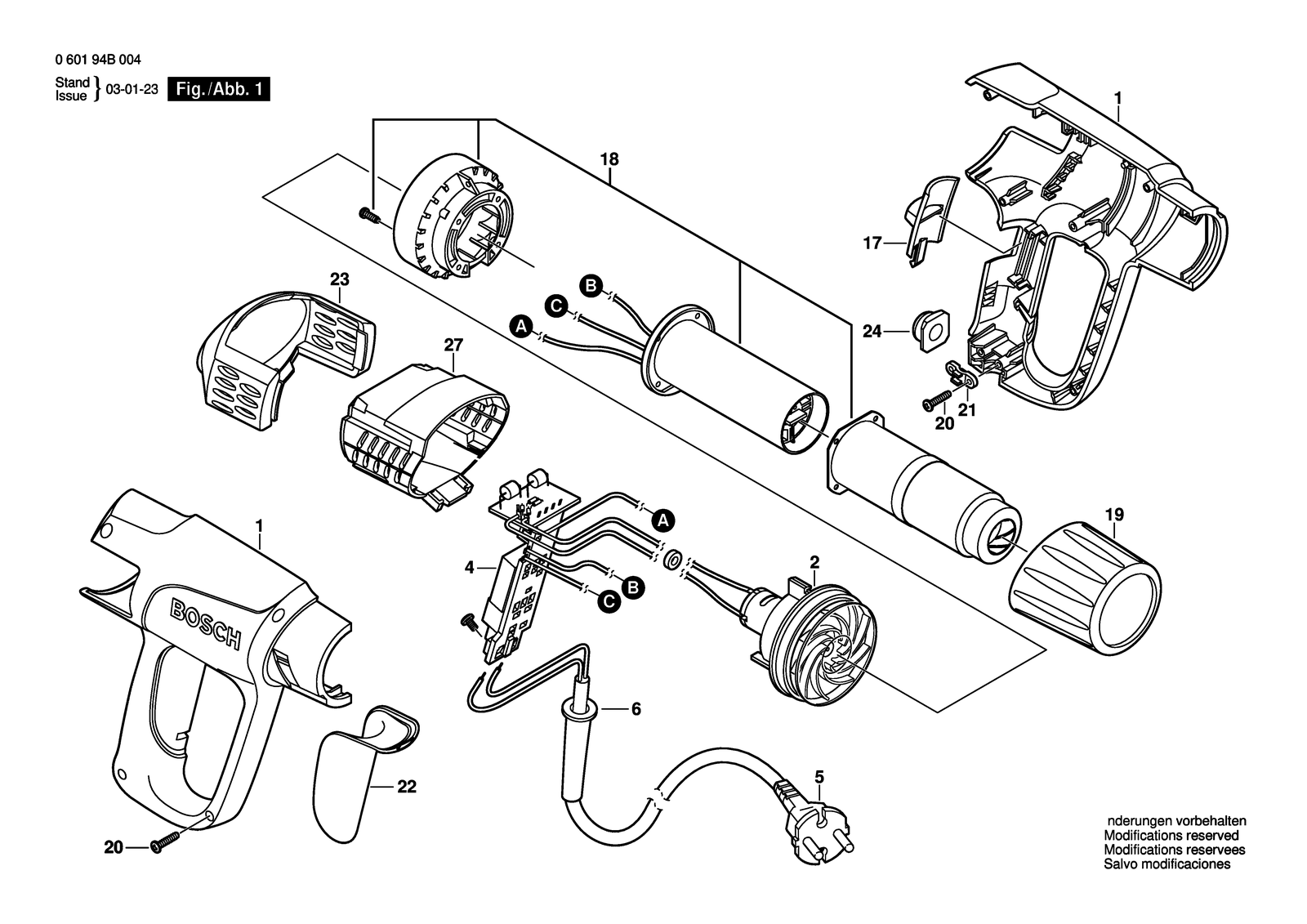

Bosch GHG 600-3 parts diagram, sheet 1
No.Part numberPart name
11609203K37Housing Section
11609203K38Housing Section
11609203M79Housing Section
171609203H54Switch Button
181609203H60Heating Element 220-230V
181609203J91Heating Element 240V
191609203H61Protective Tube
21609202617DC motor 115-240V
202910615407Tapping Screw DIN 7981-ST2,9X16-F-H
211609203102Fastening Clamp
221609203H62Cap-Handle
231609203H63Cover
241609203H65Rubber Base
271609203L50Plug-In Housing
41609203H59Connecting Block 220-230V
51609202797Power supply cord
51609203103Power supply cord
51609203G64Power supply cord
61609202606Grommet
