Bosch GHG 500-2 hot air gun: exploded parts diagram, 1 sheet, 16 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GHG 500-2: 16 positions on 1 sheet

Bosch GHG 500-2 parts list (1 sheet)

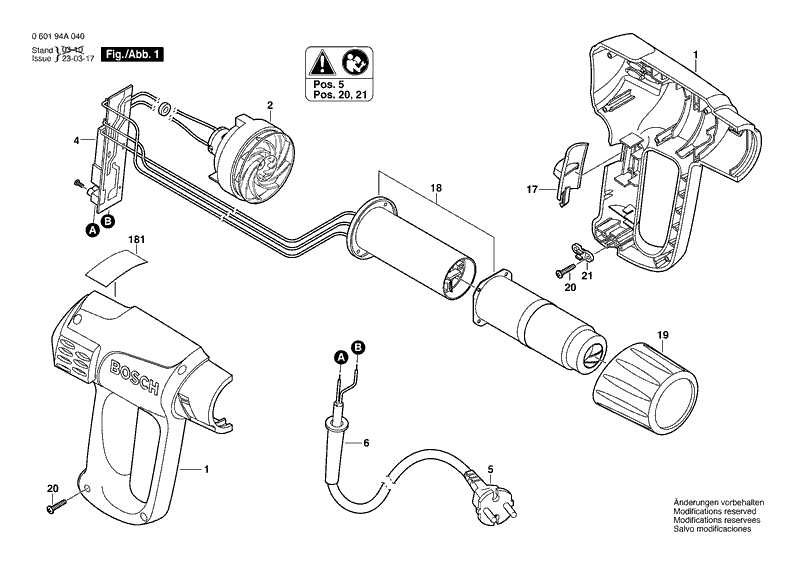

Bosch GHG 500-2 parts diagram, sheet 1
No.Part numberPart name
11609203K34Housing Section
11609203K35Housing Section
11609203M77Housing Section
11609203M78Housing Section
171609203H54Switch Button
181609203H55Heating Element 220-230V
1811601118F61Warning Plate
191609203H56Protective Tube
21609203H52Motor Block 220-230V
202910615407Tapping Screw DIN 7981-ST2,9X16-F-H
211609203102Fastening Clamp
41609203H53Connecting Block 220-230V
51609202797Power supply cord
51609203103Power supply cord
51609203G64Power supply cord
61609202606Grommet
