Bosch GHG 23-66

Bosch GHG 23-66 hot air gun: exploded parts diagram, 1 sheet, 24 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GHG 23-66: 24 positions on 1 sheet

Bosch GHG 23-66 parts list (1 sheet)

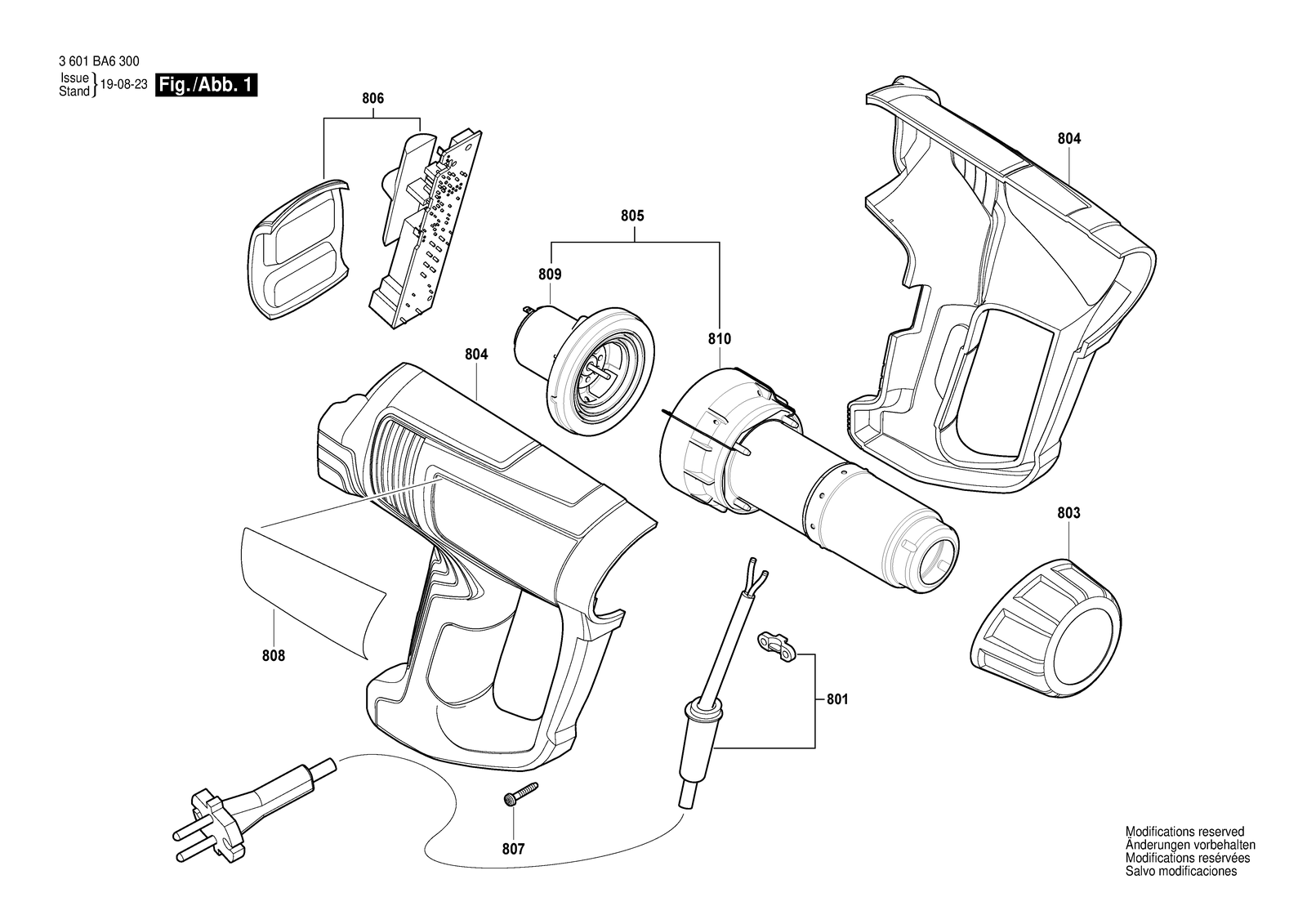

Bosch GHG 23-66 parts diagram, sheet 1
No.Part numberPart name
8011607000CW0Power supply cord
8011607000D07Power supply cord
8011607000D0JPower supply cord
8011607000D2WPower supply cord
8011607000D3WPower supply cord
8031607000D0HProtective Tube
8031607000D3TProtective Tube
8041607000D0YHousing
8041607000D0ZHousing
8041607000D2YHousing
8041607000D32Housing
8051607000D1VMotor
8051607000D2AMotor
8051607000D2CMotor
8061607000D0WPrinted Circuit Board
8061607000D3VPrinted Circuit Board
8071607000CW1Screw
8081607000D4KNameplate
8081607000D4LNameplate
8081607000D4MNameplate
8081607000D4NNameplate
8081607000D4PNameplate
8091600A01N64Motor
8101600A01N6CHeating Element
