Bosch GHG 180

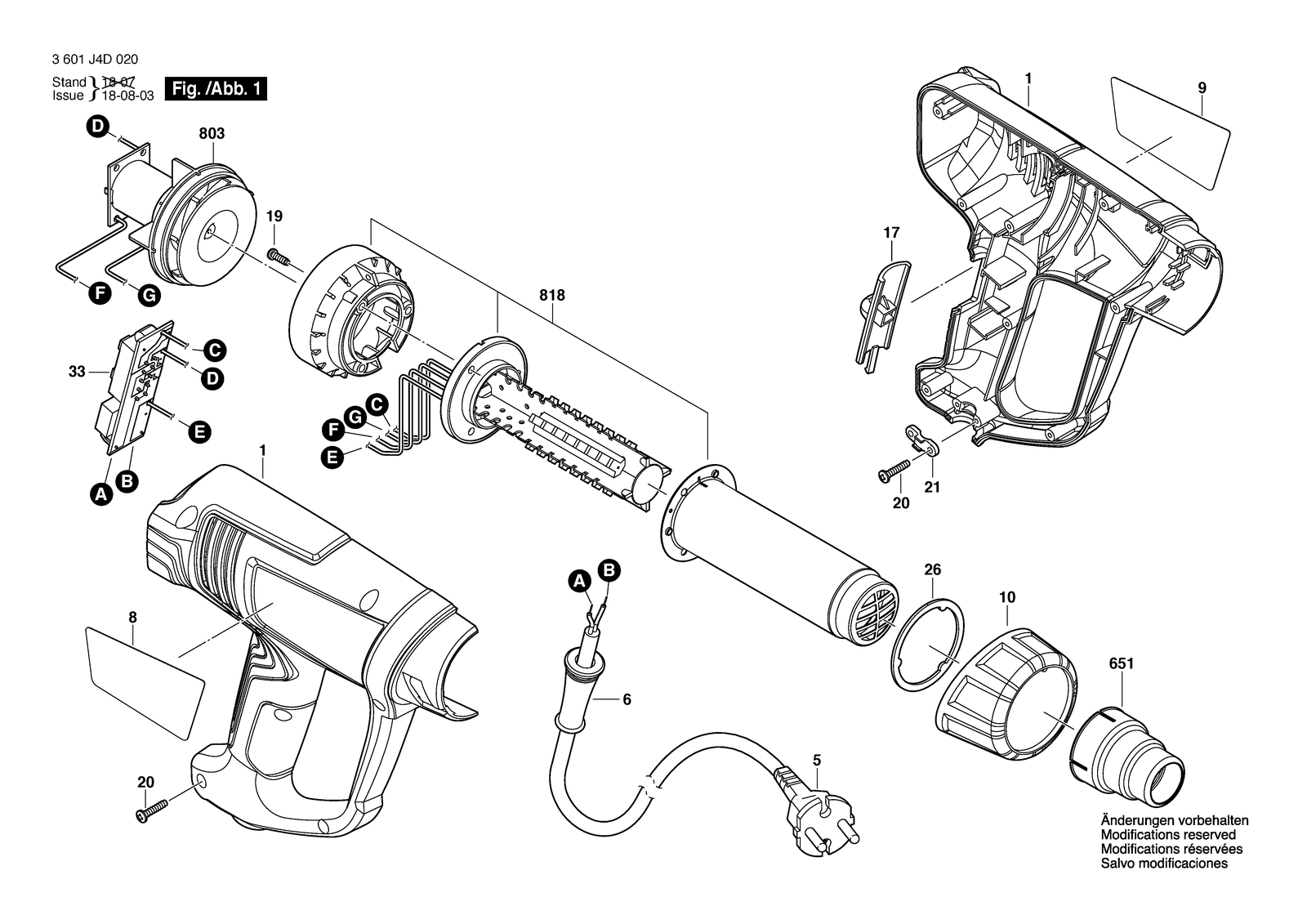

Bosch GHG 180 hot air gun: exploded parts diagram, 1 sheet, 37 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GHG 180: 37 positions on 1 sheet
Bosch GHG 180 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PB2409 | Housing Set |
| 10 | 1619PB2411 | Protective Tube |
| 17 | 1619PB2412 | Switch Slide |
| 19 | 1619PB2799 | Pan head screw |
| 20 | 1619PB2800 | Pan head screw |
| 21 | 1619PB2801 | Fastening Clamp |
| 26 | 1619PB2807 | Locating ring |
| 33 | 1619PB3834 | Switch Kit |
| 33 | 1619PB3937 | Switch Kit |
| 5 | 1619PB2789 | Power supply cord |
| 5 | 1619PB2790 | Power supply cord |
| 5 | 1619PB2791 | Power supply cord |
| 5 | 1619PB3923 | Power supply cord |
| 5 | 1619PB3924 | Power supply cord |
| 5 | 1619PB3925 | Power supply cord |
| 5 | 1619PB3926 | Power supply cord |
| 5 | 1619PB3927 | Power supply cord |
| 5 | 1619PB5390 | Power supply cord |
| 6 | 1619PB2792 | Grommet |
| 6 | 1619PB3928 | Grommet |
| 651 | 1619PB2771 | Hot air nozzle |
| 651 | 1619PB2931 | Hot air nozzle |
| 8 | 1619PB2794 | Nameplate |
| 8 | 1619PB2795 | Nameplate |
| 8 | 1619PB2796 | Nameplate |
| 8 | 1619PB2797 | Nameplate |
| 8 | 1619PB3929 | Nameplate |
| 8 | 1619PB3930 | Nameplate |
| 8 | 1619PB3931 | Nameplate |
| 8 | 1619PB3932 | Nameplate |
| 8 | 1619PB3933 | Nameplate |
| 803 | 1619PB2788 | Motor |
| 803 | 1619PB4054 | Motor |
| 818 | 1619PB2798 | Heating Element |
| 818 | 1619PB3934 | Heating Element |
| 818 | 1619PB4056 | Heating Element |
| 9 | 1619PB2793 | Manufacturer's nameplate GHG 180 |
