Bosch GHG 16-50

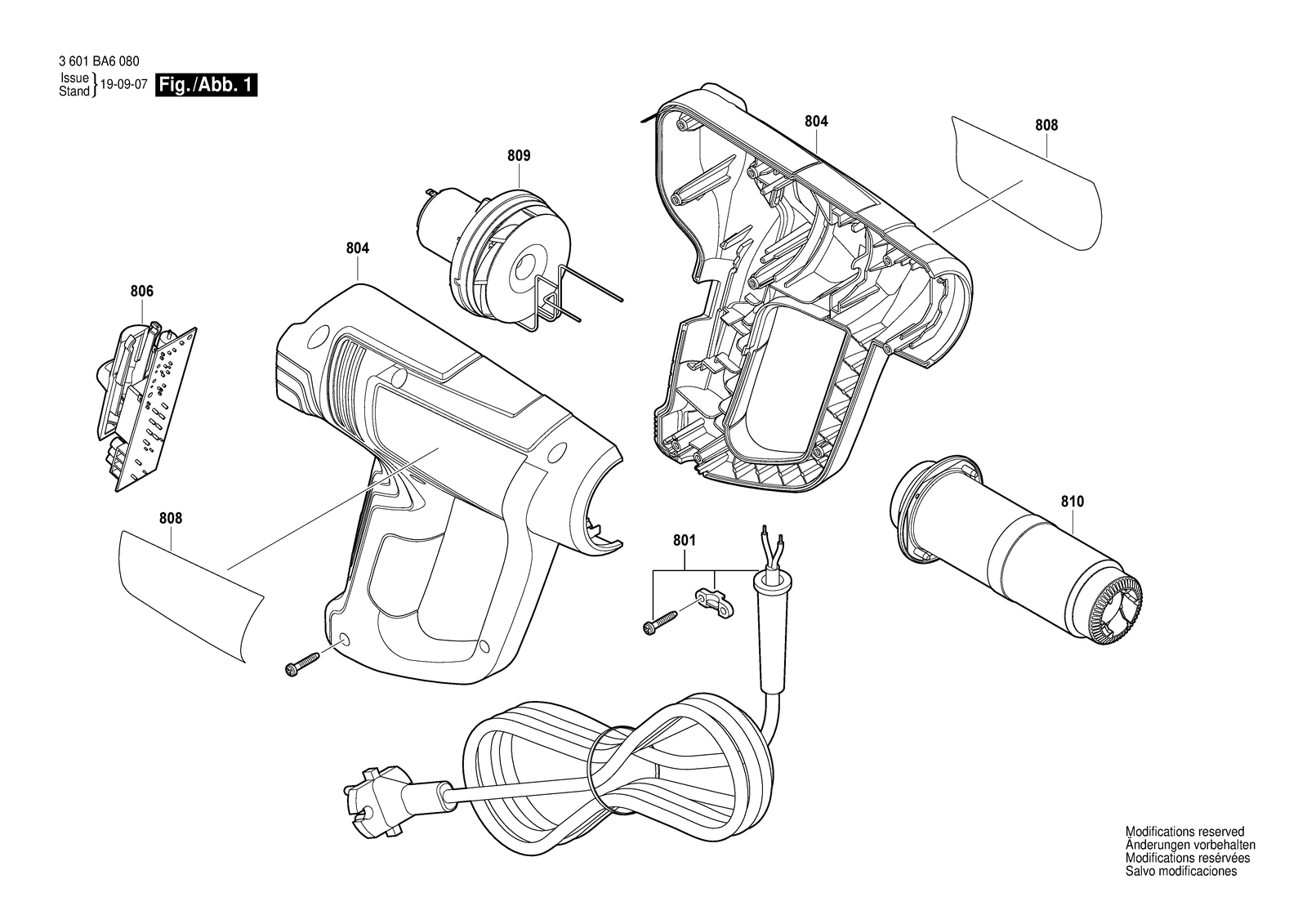

Bosch GHG 16-50 hot air gun: exploded parts diagram, 1 sheet, 10 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GHG 16-50: 10 positions on 1 sheet
Bosch GHG 16-50 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 801 | 1607000CW0 | Power supply cord |
| 801 | 1607000D07 | Power supply cord |
| 801 | 1607000D1Y | Power supply cord |
| 804 | 1607000D8J | Housing |
| 806 | 1607000D8L | Printed Circuit Board |
| 808 | 1607000DE2 | Nameplate |
| 808 | 1607000DE3 | Nameplate |
| 808 | 1607000DE4 | Nameplate |
| 809 | 1600A01N62 | Motor |
| 810 | 1600A01N68 | Heating Element |
