Bosch GGW 10 E

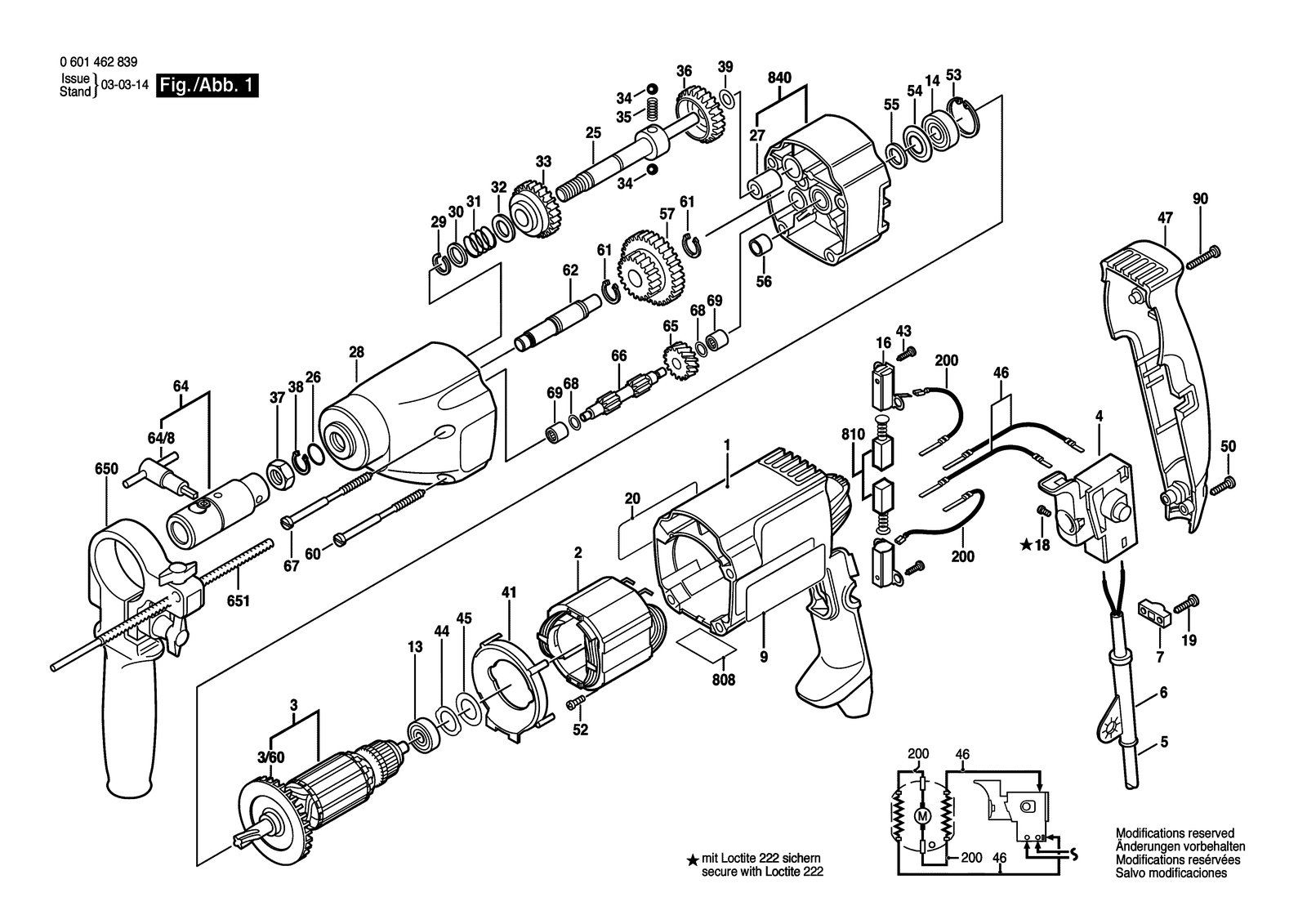

Bosch GGW 10 E thread cutter: exploded parts diagram, 1 sheet, 124 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GGW 10 E: 124 positions on 1 sheet
Bosch GGW 10 E parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104309 | Motor Housing Blue |
| 1 | 2605104309 | Motor Housing Blue |
| 13 | 1900905018 | Ball Bearing 7X22X7 |
| 13 | 1900905018 | Ball Bearing 7X22X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 16 | 2604337003 | Brush Holder |
| 16 | 2604337003 | Brush Holder |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 19 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 2 | 2604220440 | Field 115V |
| 2 | 2604220440 | Field 115V |
| 20 | 3601110342 | Sticker Shadow Side |
| 20 | 2601118700 | Sticker Shadow Side |
| 200 | 2604448100 | Connecting Cable White L=68 MM |
| 200 | 2604448100 | Connecting Cable White L=68 MM |
| 25 | 3606135003 | Drilling Spindle 1/2" |
| 25 | 3606135003 | Drilling Spindle 1/2" |
| 26 | 3600210065 | O-Ring 13,0X2,0 MM |
| 26 | 3600210065 | O-Ring 13,0X2,0 MM |
| 27 | 3600328036 | Bushing |
| 27 | 3600328036 | Bushing |
| 28 | 3605190131 | Gear Housing |
| 28 | 3605190131 | Gear Housing |
| 29 | 3600118009 | Spring retaining ring |
| 29 | 3600118009 | Spring retaining ring |
| 3 | 2604010702 | Armature 115V |
| 3 | 2604010702 | Armature 115V |
| 3/60 | 2606610049 | Fan |
| 3/60 | 2606610049 | Fan |
| 30 | 3600101043 | Plain Washer |
| 30 | 3600101043 | Plain Washer |
| 31 | 3604616016 | Compression Spring |
| 31 | 3604616016 | Compression Spring |
| 32 | 3600101044 | Shim |
| 32 | 3600101044 | Shim |
| 33 | 3606316071 | Cylindrical Gear Z=42 |
| 33 | 3606316071 | Cylindrical Gear Z=42 |
| 34 | 1903230011 | Ball DIN 5401-6 G28 |
| 34 | 1903230011 | Ball DIN 5401-6 G28 |
| 35 | 3604610018 | Compression Spring |
| 35 | 3604610018 | Compression Spring |
| 36 | 3606316020 | Cylindrical Gear Z=42 |
| 36 | 3606316020 | Cylindrical Gear Z=42 |
| 37 | 3603300007 | Nut |
| 37 | 3603300007 | Nut |
| 38 | 3600118010 | Spring retaining ring |
| 38 | 3600118010 | Spring retaining ring |
| 39 | 2600100505 | Shim 0,5 MM |
| 39 | 2600100505 | Shim 0,5 MM |
| 4 | 2607200185 | Switch |
| 4 | 2607200185 | Switch |
| 41 | 2601328033 | Cover Disc |
| 41 | 2601328033 | Cover Disc |
| 43 | 1613435034 | Lens Head Screw 3X10 St |
| 43 | 1613435034 | Lens Head Screw 3X10 St |
| 44 | 2600150004 | Shim |
| 44 | 2600150004 | Shim |
| 45 | 2600101020 | Shim 0,5 MM |
| 45 | 2600101022 | Shim 0,2 MM |
| 45 | 2600101023 | Shim 0,3 MM |
| 45 | 2600101020 | Shim 0,5 MM |
| 45 | 2600101022 | Shim 0,2 MM |
| 45 | 2600101023 | Shim 0,3 MM |
| 46 | 2604448005 | Cable White L=130 MM |
| 46 | 2604448005 | Cable White L=130 MM |
| 47 | 2605132049 | Housing Cover Blue |
| 47 | 2605132049 | Housing Cover Blue |
| 5 | 2604460122 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460122 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 50 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 50 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 52 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 52 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 53 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 53 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 54 | 2600500002 | Cupped Washer |
| 54 | 2600500002 | Cupped Washer |
| 55 | 2600108077 | Felt Washer |
| 55 | 2600108077 | Felt Washer |
| 56 | 2600400008 | Receptacle |
| 56 | 2600400008 | Receptacle |
| 57 | 3606328000 | Cylindrical Gear Z=33/56 |
| 57 | 3606328000 | Cylindrical Gear Z=33/56 |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 6 | 2600707061 | Grommet Ø8,8 MM |
| 60 | 1603435036 | Tapping Screw 4,8X78 Mm, Torx T-20 |
| 60 | 1603435019 | Tapping Screw BZ 4,8X78 MM |
| 61 | 2916650903 | Spring retaining ring DIN 471-12X1-FSTM |
| 61 | 2916650903 | Spring retaining ring DIN 471-12X1-FSTM |
| 62 | 3603124000 | Axle |
| 62 | 3603124000 | Axle |
| 64 | 2608573003 | Chuck M4-M12 |
| 64 | 2608573003 | Chuck M4-M12 |
| 64/8 | 2607950012 | Chuck Wrench |
| 64/8 | 2607950012 | Chuck Wrench |
| 65 | 3606316021 | Cylindrical Gear Z=28 |
| 65 | 3606316021 | Cylindrical Gear Z=28 |
| 650 | 2602025094 | Auxiliary Handle |
| 651 | 2603000003 | Depth-Gauge |
| 66 | 3606337062 | Spindle With Gear Z=11 |
| 66 | 3606337062 | Spindle With Gear Z=11 |
| 67 | 2603435012 | Tapping Screw 79 MM |
| 67 | 2603435012 | Tapping Screw 79 MM |
| 68 | 2600100613 | Shim 0,50 MM |
| 68 | 2600100613 | Shim 0,50 MM |
| 69 | 9001140359 | Needle bearing |
| 69 | 9001140359 | Needle bearing |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 810 | 2604321905 | Carbon-Brush Set |
| 810 | 2604321905 | Carbon-Brush Set |
| 840 | 3605700054 | Intermediate Flange |
| 840 | 3605700054 | Intermediate Flange |
| 9 | 3601110341 | Sticker Sunny Side |
| 9 | 2610906997 | Sticker Sunny Side |
| 90 | 2910211022 | Tapping Screw DIN 7971-BZ3,9X25 |
| 90 | 2603490024 | Torx Oval-Head Screw 4X25 |
