Bosch GGS 8 H

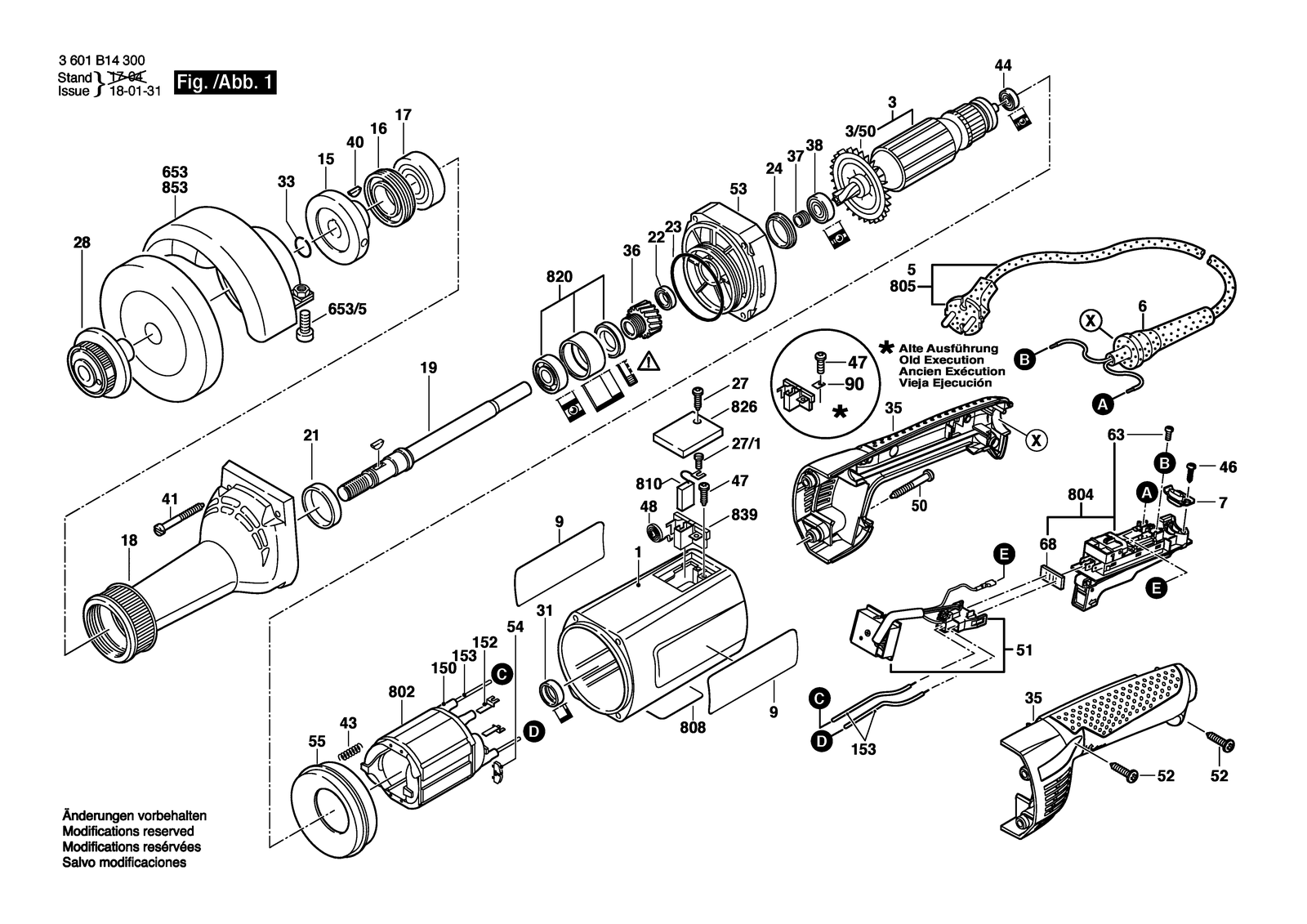

Bosch GGS 8 H straight grinders: exploded parts diagram, 2 sheets, 65 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GGS 8 H: 65 positions on 2 sheets
Bosch GGS 8 H parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108092 | Motor Housing Blue |
| 15 | 1605703065 | Clamping Flange Ø 65X16 MM |
| 150 | 3600707022 | Shrinkable Tube |
| 152 | 1604477001 | Blade terminal |
| 153 | 3604438034 | Connecting Cable |
| 16 | 1603344005 | Threaded Ring |
| 17 | 1900900352 | Groove ball bearing 17X47X14 |
| 18 | 3605806084 | Spindle Bearing |
| 19 | 3603160000 | Grinding Spindle M14 |
| 21 | 1600206029 | Rubber Ring Ø41XØ37X7,5 MM |
| 22 | 1600290016 | Rotary shaft lip seal |
| 23 | 1600210031 | O-Ring 57,0X1,5 MM |
| 24 | 1600221003 | Intermediate Ring |
| 27 | 2914201506 | Oval-Head Screw 4X18 Mm,torx T20 |
| 27/1 | 2603490022 | Screw 4X16 |
| 28 | 3603301010 | Fast Locking Flange |
| 3 | 1604010475 | Armature 110-120V |
| 3 | 1619P13611 | Armature |
| 31 | 1600502011 | Intermediate Ring |
| 33 | 2916600009 | Retaining ring 16 DIN 9045 |
| 35 | 3605132079 | Handle |
| 36 | 3606320015 | Cylindrical Gear Z=25 |
| 37 | 1600300090 | Intermediate Ring |
| 38 | 3600905131 | Groove ball bearing 9X26X8 |
| 40 | 1900023006 | Woodruff Key DIN 6888-4X5-ST60-2 |
| 41 | 3603435057 | Torx Oval-Head Screw |
| 43 | 1604613006 | Compression Spring |
| 44 | 1600905017 | Groove ball bearing |
| 46 | 2603490022 | Screw 4X16 |
| 47 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 48 | 1604652006 | Spiral Spring |
| 5 | 1604460032 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460201 | Power supply cord GB 110V 4,15M 2 X 1,5MM H07 Rn-F |
| 5 | 1604460385 | Power supply cord |
| 5 | 2604460138 | Power supply cord Usa/cdn 4,15M 2 X 082MM SJ 18/2 |
| 50 | 2914201527 | Torx Oval-Head Screw |
| 51 | 1605190068 | Socket Housing |
| 51 | 1607233319 | Electronics Module |
| 52 | 2914201506 | Oval-Head Screw 4X18 Mm,torx T20 |
| 53 | 1607000FF6 | Intermediate Bearing |
| 54 | 3601025003 | Wire Guide |
| 55 | 1600502019 | Air-Deflector Ring |
| 6 | 1600703023 | Grommet Ø 10,5-Ø11,0X100 MM |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 650/1 | 1607950061 | Pin-Type Face-Wrench |
| 650/2 | 3603101005 | Holding Pin |
| 650/3 | 1907950007 | Offset Screwdriver DIN 911;SW6 |
| 650/4 | 3603345014 | Round Nut |
| 653 | 3605510030 | Protective Cover Ø 125 MM |
| 653/5 | 2910141244 | Hex Socket Head Cap Screw DIN 912-M8X25-8.8 |
| 68 | 1601006011 | Sealing Plate |
| 7 | 1601302018 | Fastening Clamp |
| 802 | 3607031864 | Field |
| 802 | 3607031865 | Field |
| 804 | 1607000C14 | On-Off Switch Gray |
| 804 | 1607000C16 | On-Off Switch |
| 805 | 1607000391 | Power supply cord |
| 808 | 160111A3H3 | Nameplate |
| 810 | 3607014012 | Carbon-Brush Set |
| 820 | 3604441011 | Cartridge bearing |
| 826 | 3605500063 | Sealing cap Blue |
| 839 | 3604336012 | Brush Holder |
| 853 | 1607000CE6 | Protective Cover |
| 9 | 3601110600 | Manufacturer's nameplate |
| 90 | 1601030022 | Tab Washer |
