Bosch GGS 6

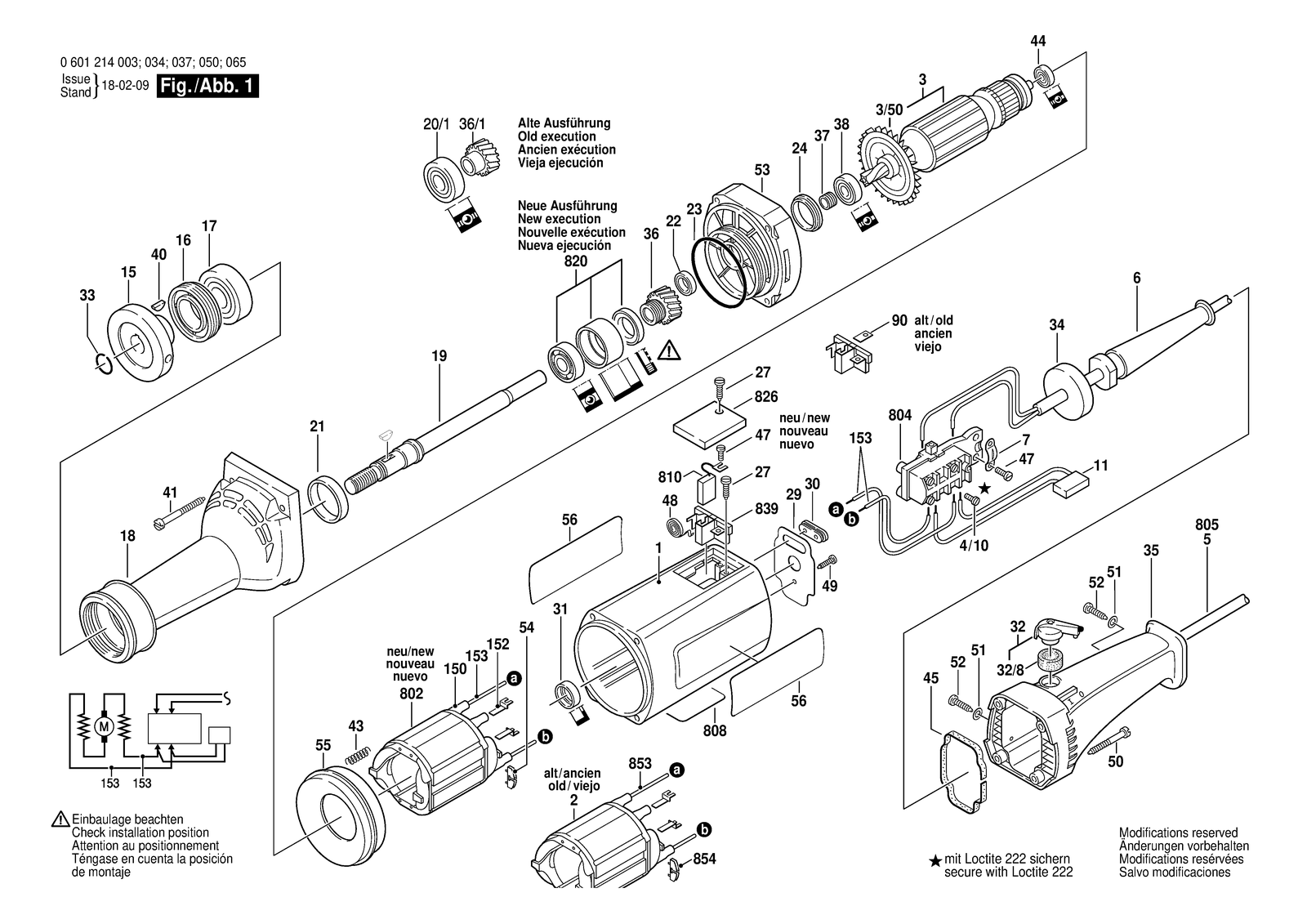

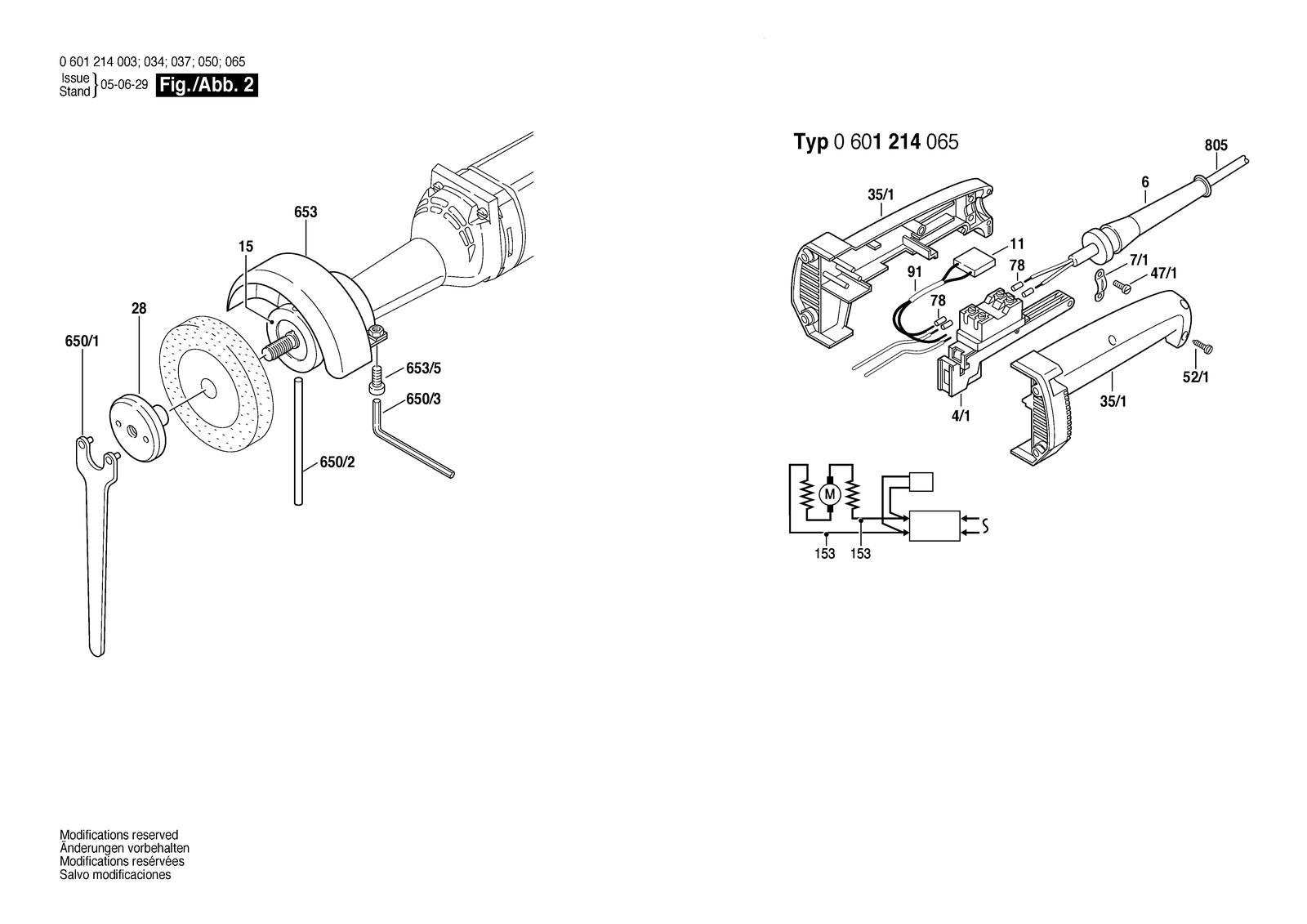

Bosch GGS 6 straight grinders: exploded parts diagram, 2 sheets, 78 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GGS 6: 78 positions on 2 sheets
Bosch GGS 6 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108092 | Motor Housing Blue |
| 11 | 3607328003 | Suppression Filter |
| 15 | 1605703065 | Clamping Flange Ø 65X16 MM |
| 15 | 2605703010 | Clamping Flange Ø 51 MM |
| 150 | 3600707022 | Shrinkable Tube |
| 152 | 1604477001 | Blade terminal |
| 153 | 3604438029 | Connecting Cable |
| 16 | 1603344005 | Threaded Ring |
| 17 | 1900900352 | Groove ball bearing 17X47X14 |
| 18 | 3605806084 | Spindle Bearing |
| 19 | 3603160000 | Grinding Spindle M14 |
| 21 | 1600206029 | Rubber Ring Ø41XØ37X7,5 MM |
| 22 | 1600290016 | Rotary shaft lip seal |
| 23 | 1600210031 | O-Ring 57,0X1,5 MM |
| 24 | 1600221003 | Intermediate Ring |
| 27 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 28 | 1603345034 | Round Nut Ø 65X20 Mm, M14 |
| 28 | 1603345036 | Round Nut Ø 51,5X20 Mm, M14 |
| 29 | 1601037007 | Cover Plate |
| 3 | 1604010475 | Armature 110-120V |
| 3 | 1619P13611 | Armature |
| 3/50 | 1606610122 | Fan |
| 30 | 1600306001 | Grommet |
| 31 | 1600502011 | Intermediate Ring |
| 32 | 1602026030 | Control Lever |
| 32/8 | 1600205008 | Felt Washer |
| 33 | 2916600009 | Retaining ring 16 DIN 9045 |
| 34 | 1600113013 | Seal |
| 35 | 3605132024 | Handle Blue |
| 35/1 | 3605132029 | Handle Blue |
| 36 | 3606320015 | Cylindrical Gear Z=25 |
| 37 | 1600300090 | Intermediate Ring |
| 38 | 3600905131 | Groove ball bearing 9X26X8 |
| 4/1 | 1607200074 | Switch |
| 4/10 | 2910091120 | Pan head screw DIN 85-M4X10-4.8 |
| 40 | 1900023006 | Woodruff Key DIN 6888-4X5-ST60-2 |
| 41 | 1603435012 | Tapping Screw B4,8X50 MM |
| 43 | 1604613006 | Compression Spring |
| 44 | 2600905032 | Ball Bearing 7X19X6 |
| 45 | 1601014000 | Sealing Cord |
| 47 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 47/1 | 2910211008 | Tapping Screw DIN 7971-BZ2,9X19 |
| 48 | 1604652006 | Spiral Spring |
| 49 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 5 | 1604460447 | Power supply cord CH 4,15M 2 X 1,0MM H07RN-F |
| 5 | 1614460033 | Power supply cord |
| 5 | 3604460049 | Power supply cord |
| 50 | 2914201531 | Torx Oval-Head Screw |
| 51 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 52 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 52/1 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 53 | 1607000FF6 | Intermediate Bearing |
| 54 | 3601025003 | Wire Guide |
| 55 | 1600502019 | Air-Deflector Ring |
| 56 | 3601110124 | Sticker |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 650/1 | 1607950061 | Pin-Type Face-Wrench |
| 650/2 | 3603101005 | Holding Pin |
| 650/3 | 1907950007 | Offset Screwdriver DIN 911;SW6 |
| 653 | 3605510030 | Protective Cover Ø 125 MM |
| 653/5 | 2910141240 | Hex Socket Head Cap Screw DIN 912-M8X18-8.8 |
| 7 | 1601302013 | Fastening Clamp |
| 7/1 | 1601302014 | Fastening Clamp |
| 78 | 3604477008 | End Splice |
| 802 | 3604220110 | Field 240V |
| 802 | 3604220120 | Field 110-120V |
| 802 | 3604220134 | Field 220-230V |
| 804 | 1607000034 | Switch Kit |
| 805 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 810 | 3607014012 | Carbon-Brush Set |
| 820 | 3604441011 | Cartridge bearing |
| 826 | 3605500063 | Sealing cap Blue |
| 839 | 3604336012 | Brush Holder |
| 853 | 3604438001 | Connecting Cable White L=220 MM |
| 854 | 3601025003 | Wire Guide |
| 90 | 1601030022 | Tab Washer |
| 91 | 1600712026 | PVC Hose |
