Bosch GGS 5000 straight grinders: exploded parts diagram, 1 sheet, 40 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GGS 5000: 40 positions on 1 sheet

Bosch GGS 5000 parts list (1 sheet)

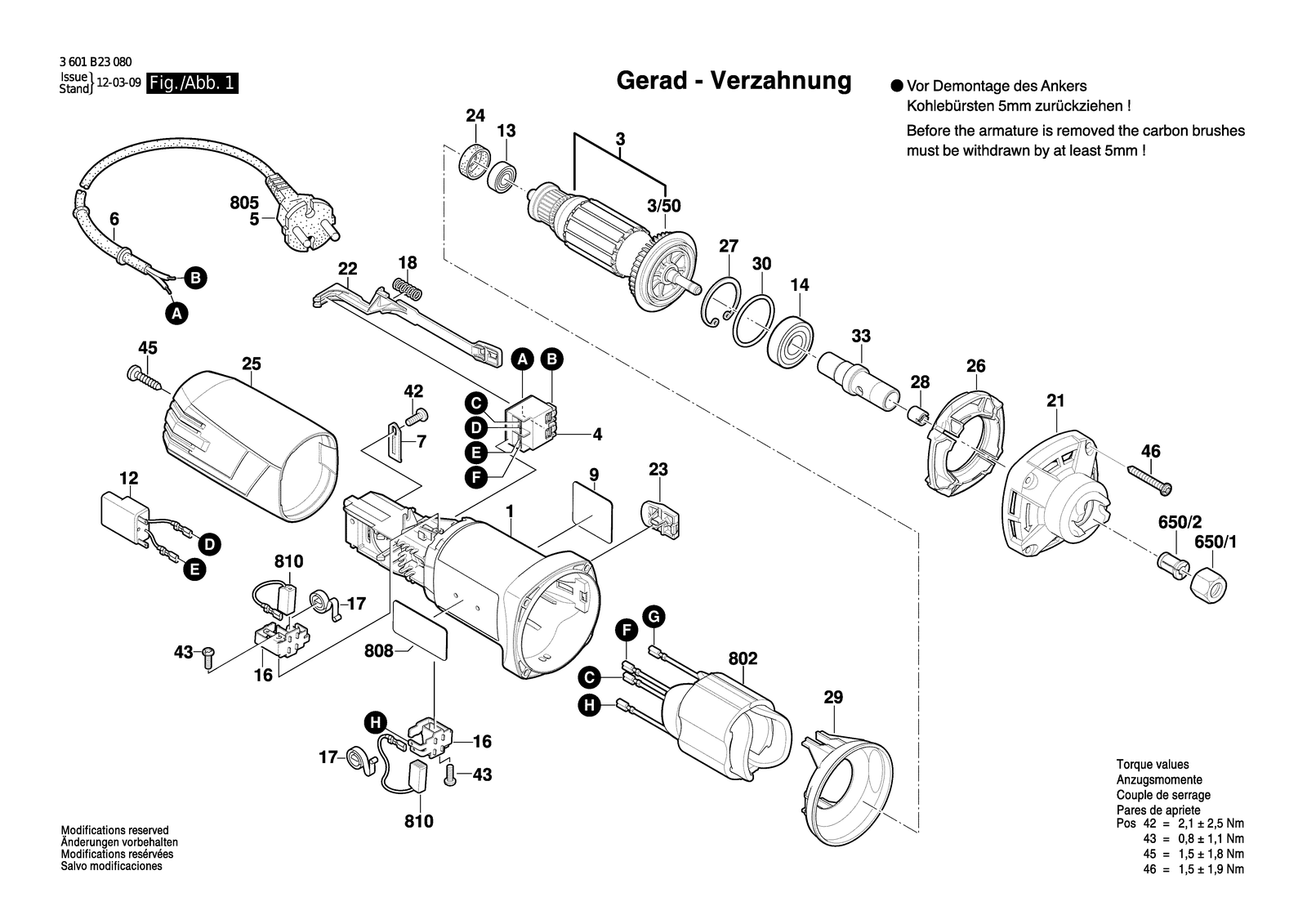

Bosch GGS 5000 parts diagram, sheet 1
No.Part numberPart name
11619P11358Motor Housing
121619P09448Suppression Filter
131619P08829Groove ball bearing
141619P10533Groove ball bearing
161619P01811Brush Holder
171604652013Spiral Spring
181604611031Compression Spring
211619P09207Spindle Housing
221602319009Adjusting Slide
231619P02762Switch Button Black
241600502023Intermediate Ring
251619P09255Housing Cover Blue
261619P09886Air-Deflector Ring
272916660013Retaining clip DIN 472-32X1,2 MM
281619P09265Nut
291619P09921Air-Deflector Ring
31619P08237Armature 240V
3/501606610141Fan
301610210130O-Ring 32,0X2,5 MM
331619P09208Grinding Spindle
41607200179On-Off Switch
422609110052Special Screw
431619P00220Torx Oval-Head Screw 3X10
452910611020Tapping Screw DIN 7981-ST3,9X19-C-H
461619P01066Torx Oval-Head Screw 4X25
51604460260Power supply cord GB 230V 2,65M 2 X 0,75MM H05 Vv-F
51604460263Power supply cord CN 2,65M 2 X 0,75MM H05 W-f
51604460312Power supply cord EU 2,65M 2 X 0,75MM H05 W-f
62600703012Grommet Ø6,5-Ø6,9X95 MM
650/11619P09252Lock nut
650/21619P10661Collet
71601302017Fastening Clamp
8021619P10709Field 220-240V
8051607000387Power supply cord CN 2,65M 2 X 0,75MM H05 W-f
8081619P09512Nameplate
8081619P13294Nameplate
8081619P31411Nameplate
8101607014145Carbon-Brush Set
91619P09525Manufacturer's nameplate GGS 5000
91619P09526Manufacturer's nameplate TGS 5000
