Bosch GGS 3000 L

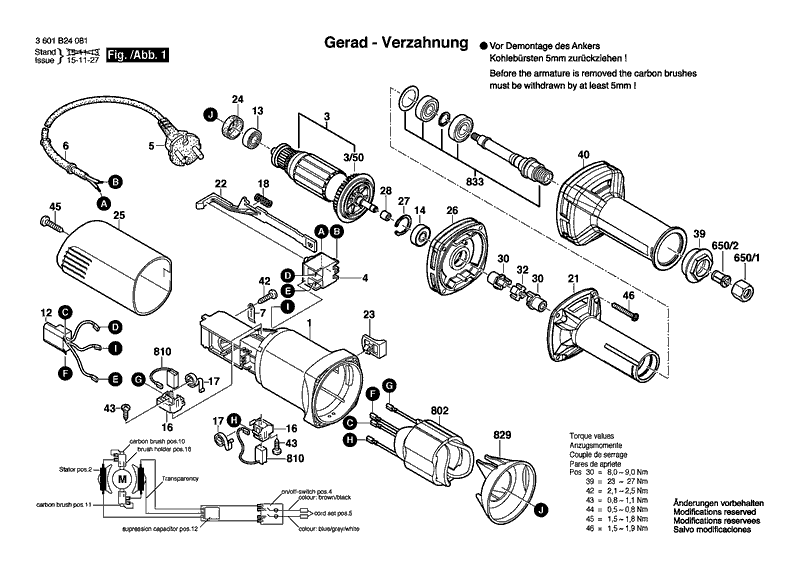

Bosch GGS 3000 L straight grinders: exploded parts diagram, 1 sheet, 70 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GGS 3000 L: 70 positions on 1 sheet
Bosch GGS 3000 L parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P11358 | Motor Housing |
| 1 | 1619P11358 | Motor Housing |
| 12 | 1619P09448 | Suppression Filter |
| 12 | 1619P09448 | Suppression Filter |
| 13 | 1619P08829 | Groove ball bearing |
| 13 | 1619P08829 | Groove ball bearing |
| 14 | 1619P00455 | Ball Bearing |
| 14 | 1619P00455 | Ball Bearing |
| 16 | 1619P01811 | Brush Holder |
| 16 | 1619P01811 | Brush Holder |
| 17 | 1604652013 | Spiral Spring |
| 17 | 1604652013 | Spiral Spring |
| 18 | 1604611031 | Compression Spring |
| 18 | 1604611031 | Compression Spring |
| 21 | 1619P10235 | Spindle Housing |
| 21 | 1619P10235 | Spindle Housing |
| 22 | 1602319009 | Adjusting Slide |
| 22 | 1602319009 | Adjusting Slide |
| 23 | 1619P02762 | Switch Button Black |
| 23 | 1619P02762 | Switch Button Black |
| 24 | 1600502023 | Intermediate Ring |
| 24 | 1600502023 | Intermediate Ring |
| 25 | 1619P09255 | Housing Cover Blue |
| 25 | 1619P09255 | Housing Cover Blue |
| 26 | 1619P09256 | Intermediate Flange |
| 26 | 1619P09256 | Intermediate Flange |
| 27 | 1619P09261 | Retaining snap ring |
| 27 | 1619P09261 | Retaining snap ring |
| 28 | 1619P09434 | Sleeve Ring |
| 28 | 1619P09434 | Sleeve Ring |
| 3 | 1619P08203 | Armature 230V |
| 3 | 1619P08212 | Armature 220-240V |
| 3/50 | 1606610141 | Fan |
| 3/50 | 1606610141 | Fan |
| 30 | 1619P09263 | Connector |
| 30 | 1619P09263 | Connector |
| 32 | 1619P09262 | Adjusting Ring |
| 32 | 1619P09262 | Adjusting Ring |
| 39 | 1619P11770 | Cap Nut |
| 39 | 1619P11770 | Cap Nut |
| 4 | 1607200179 | On-Off Switch |
| 4 | 1607200179 | On-Off Switch |
| 40 | 1619P09268 | Protective Sleeve |
| 40 | 1619P09863 | Protective Sleeve |
| 42 | 2609110052 | Special Screw |
| 42 | 2609110052 | Special Screw |
| 43 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 43 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 45 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 45 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 46 | 1619P09269 | Torx Oval-Head Screw |
| 46 | 1619P09269 | Torx Oval-Head Screw |
| 5 | 1604460263 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 5 | 1604460263 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 650/1 | 1619P09252 | Lock nut |
| 650/1 | 1619P09252 | Lock nut |
| 650/2 | 1619P10661 | Collet |
| 650/2 | 1619P10661 | Collet |
| 7 | 1619P00499 | Fastening Clamp |
| 7 | 1601302017 | Fastening Clamp |
| 802 | 1619P09833 | Field 230V |
| 802 | 1619P09888 | Field 230V |
| 810 | 1607014145 | Carbon-Brush Set |
| 810 | 1607014145 | Carbon-Brush Set |
| 829 | 1619P09921 | Air-Deflector Ring |
| 829 | 1619P09921 | Air-Deflector Ring |
| 833 | 1619P09253 | Spindle Assembly |
| 833 | 1619P09253 | Spindle Assembly |
