Bosch GGS 28 C

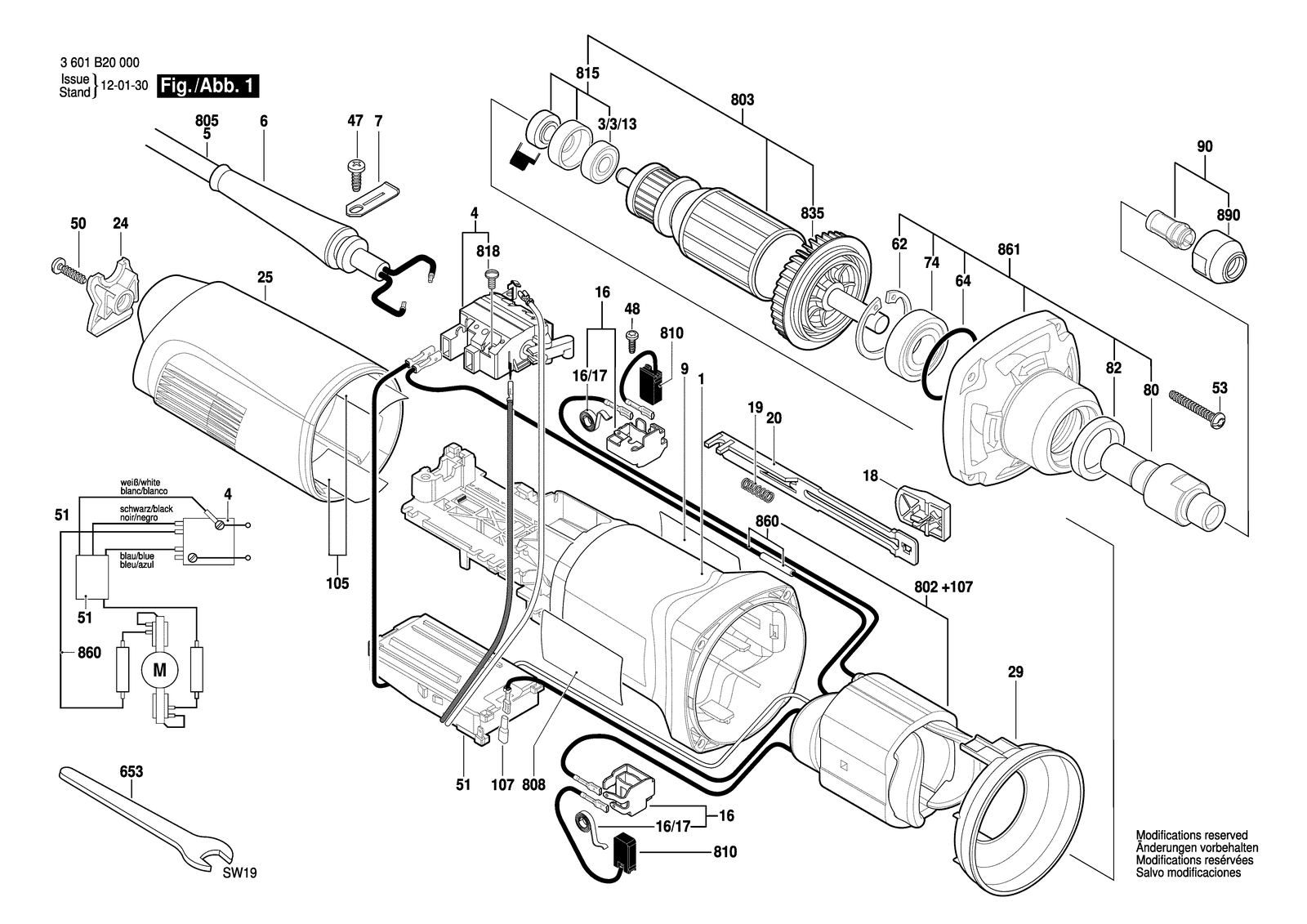

Bosch GGS 28 C straight grinders: exploded parts diagram, 1 sheet, 52 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GGS 28 C: 52 positions on 1 sheet
Bosch GGS 28 C parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108224 | Motor Housing |
| 105 | 1601008005 | Insulating Plate |
| 107 | 1600712030 | Insulating Part |
| 16 | 1601323025 | Brush Holder |
| 16/17 | 1604652013 | Spiral Spring |
| 18 | 1602026088 | Switch Handle |
| 19 | 1604611026 | Compression Spring |
| 20 | 1602319010 | Adjusting Slide Black |
| 24 | 1605500228 | Cover Blue |
| 25 | 1605500251 | Housing Cover Dark Blue |
| 29 | 1600591025 | Air-Deflector Ring |
| 3/3/13 | 2600905032 | Ball Bearing 7X19X6 |
| 4 | 1607200199 | Switch |
| 47 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 48 | 1613435034 | Lens Head Screw 3X10 St |
| 5 | 1604460196 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1604460204 | Power supply cord GB 110V 4,15M 2 X 1,5MM H07 Rn-F |
| 5 | 1604460402 | Power supply cord CH 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 160446077F | Power supply cord |
| 5 | 3604460062 | Power supply cord I 4,15M 2 X 1,0MM H05 Rn-F |
| 50 | 2603490022 | Screw 4X16 |
| 50 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 51 | 1607233454 | Speed governor |
| 51 | 1607233455 | Speed governor |
| 53 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 6 | 1600703039 | Grommet |
| 6 | 1600703040 | Grommet |
| 6 | 1600703041 | Grommet |
| 62 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 64 | 1610210130 | O-Ring 32,0X2,5 MM |
| 653 | 3607950024 | Single-Head Eng. Wrench SW19 |
| 7 | 1601302017 | Fastening Clamp |
| 7 | 1601302024 | Fastening Clamp |
| 74 | 2600905017 | Groove ball bearing 15X32X9 |
| 80 | 3603523047 | Grinding Spindle |
| 802 | 3607030475 | Pole Shoe 230V |
| 802 | 3607030478 | Pole Shoe 110V |
| 803 | 3607030476 | Armature 230V |
| 803 | 3607030479 | Armature 110V |
| 805 | 1607000392 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607000482 | Carbon-Brush Set Kohlebürstensatz 10 X 1 607 014 176 |
| 810 | 1607014176 | Carbon-Brush Set |
| 815 | 1607000378 | Parts Set |
| 818 | 2910110048 | Pan head screw DIN 85-AM3X6-CUZN |
| 82 | 3600103018 | Cover Ring |
| 835 | 1606610129 | Fan |
| 860 | 1604448023 | Connecting Cable |
| 861 | 3607030477 | Spindle Housing |
| 890 | 3603313006 | Round Nut |
| 9 | 3601110602 | Manufacturer's nameplate |
| 90 | 3607030474 | Clamping Unit Ø6 MM |
