Bosch GGS 28

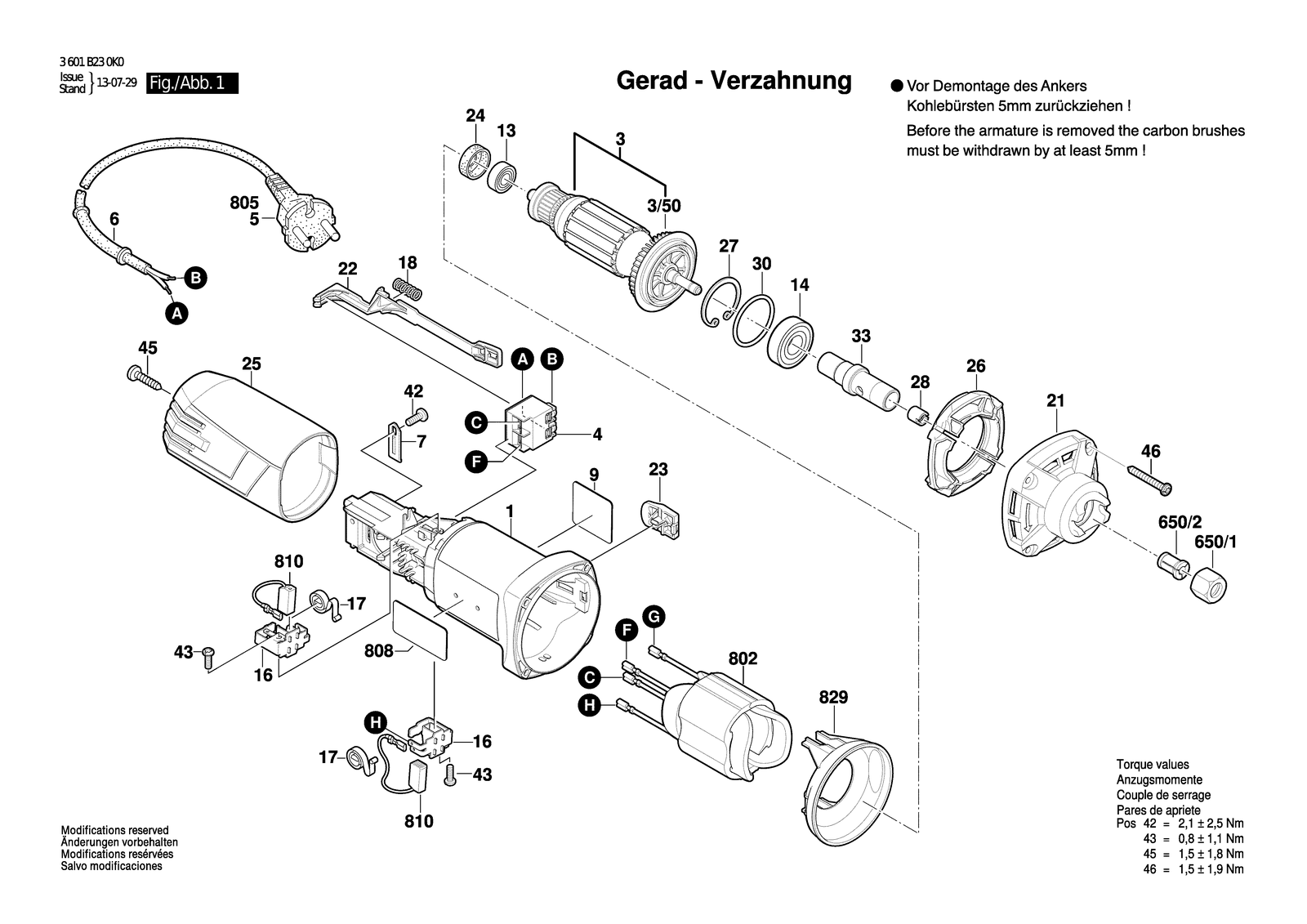

Bosch GGS 28 straight grinders: exploded parts diagram, 1 sheet, 51 positions. Spare parts with part numbers, availability and prices.
execution 3601B230K0
other executions3601B230D03601B230E03601B230G03601B230H03601B230J03601B230L03601B230N0also sold asGGS 5000
Scroll to zoom · drag to move
All parts on this sheet0
Checking availability…
All parts of Bosch GGS 28: 51 positions on 1 sheet
Bosch GGS 28 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P11358 | Motor Housing |
| 13 | 1619P08829 | Groove ball bearing |
| 14 | 1619P10533 | Groove ball bearing |
| 16 | 1619P01811 | Brush Holder |
| 17 | 1604652013 | Spiral Spring |
| 18 | 1604611031 | Compression Spring |
| 21 | 1619P09207 | Spindle Housing |
| 22 | 1602319009 | Adjusting Slide |
| 23 | 1619P02762 | Switch Button Black |
| 24 | 1600502023 | Intermediate Ring |
| 25 | 1619P09255 | Housing Cover Blue |
| 26 | 1619P09886 | Air-Deflector Ring |
| 27 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 28 | 1619P09265 | Nut |
| 3 | 1619P08237 | Armature 240V |
| 3 | 1619P11693 | Armature 127V |
| 3/50 | 1606610141 | Fan |
| 30 | 1610210130 | O-Ring 32,0X2,5 MM |
| 33 | 1619P09208 | Grinding Spindle |
| 4 | 1607200179 | On-Off Switch |
| 42 | 2609110052 | Special Screw |
| 43 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 45 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 46 | 1619P01066 | Torx Oval-Head Screw 4X25 |
| 5 | 1604460260 | Power supply cord GB 230V 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 1619P01781 | Power supply cord BR 2,65M 2 X 1,00MM H05 Vv-F |
| 5 | 1619P01962 | Power supply cord BR 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 1619P06199 | Power supply cord ARG 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460122 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 650/1 | 1619P09252 | Lock nut |
| 650/2 | 1619P10661 | Collet |
| 650/2 | 1619P10662 | Collet |
| 7 | 1601302017 | Fastening Clamp |
| 802 | 1619P10709 | Field 220-240V |
| 802 | 1619P11481 | Field 127V |
| 805 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 808 | 1619P09516 | Nameplate |
| 808 | 1619P09518 | Nameplate |
| 808 | 1619P09520 | Nameplate |
| 808 | 1619P11263 | Nameplate |
| 808 | 1619P11264 | Nameplate |
| 808 | 1619P11265 | Nameplate |
| 808 | 1619P11266 | Nameplate |
| 808 | 1619P11267 | Nameplate |
| 810 | 1607014145 | Carbon-Brush Set |
| 810 | 1619P11482 | Carbon-Brush Set |
| 829 | 1600591023 | Air-Deflector Ring |
| 9 | 1619P09525 | Manufacturer's nameplate GGS 5000 |
| 9 | F00062102L | Manufacturer's nameplate GGS 28 |
