Bosch GGS 27 L

Bosch GGS 27 L straight grinders: exploded parts diagram, 1 sheet, 47 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GGS 27 L: 47 positions on 1 sheet

Bosch GGS 27 L parts list (1 sheet)

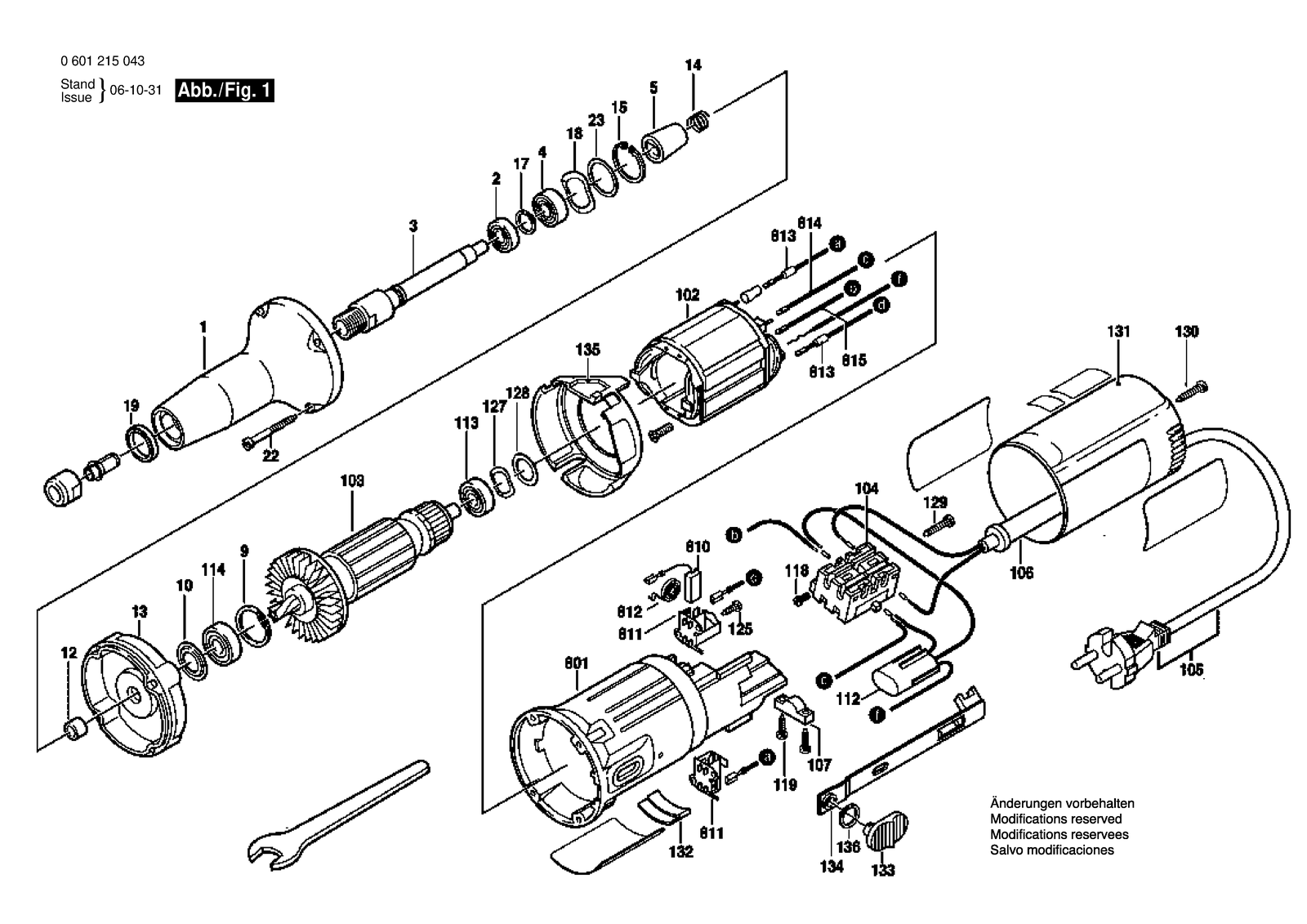

Bosch GGS 27 L parts diagram, sheet 1
No.Part numberPart name
1F000635264Bearing Flange
102600500002Cupped Washer
102F000607054Pole Shoe
1032604010639Armature 220-230V
1042607200093Switch
105F000609257Power supply cord
1062600703013Grommet Ø7,6-Ø8,2X95 MM
107F000635217Cable Clip
112F000610033Suppression Capacitor
1132600905018Groove ball bearing 7X22X7
1142600905095Ball Bearing 9X24X7
1182603410001Socket head cap screw M3X6,5-4.8
1199618087099Screw 4X16 MM
122600400008Receptacle
1252603490017Torx Oval-Head Screw 3X10
127F000635092Shim
1282600101020Shim 0,5 MM
1282600101022Shim 0,2 MM
1282600101023Shim 0,3 MM
1292910211006Tapping Screw DIN 7971-BZ2,9X13
13F000635467Intermediate Flange
1302910601022Tapping Screw BZ 3,9X25 DIN 7972
1312600508004Housing Cover
1321600026000Intermediate Piece Blue
1331602026054Switch Handle
134F000635221Adjusting lever
1352601328034Cover Disc
1361600140009Adaptor plate
142604630001Compression Spring
152916660010Spring retaining ring DIN 472-26X1,2 MM
172916650003Spring retaining ring DIN 471-12X1-FST
183600150011Shim
192600501001Cover Ring 8,5 MM
23600900020Groove ball bearing
22F000616012Cross Recessed-Head Screw
231710102601Shim 0,10 MM
3F000635263Grinding Spindle
41600900029Groove ball bearing
52606446002Coupling Half
8019618085665Motor Housing
8102604320912Carbon-Brush Set
8112601323019Brush Holder
8121604652013Spiral Spring
8132604465106Suppressor Box
8142604448009Connecting Cable
8152604448008Connecting Cable
92916660008Spring retaining ring DIN 472-24X1,2 MM
