Bosch GFZ 600 E

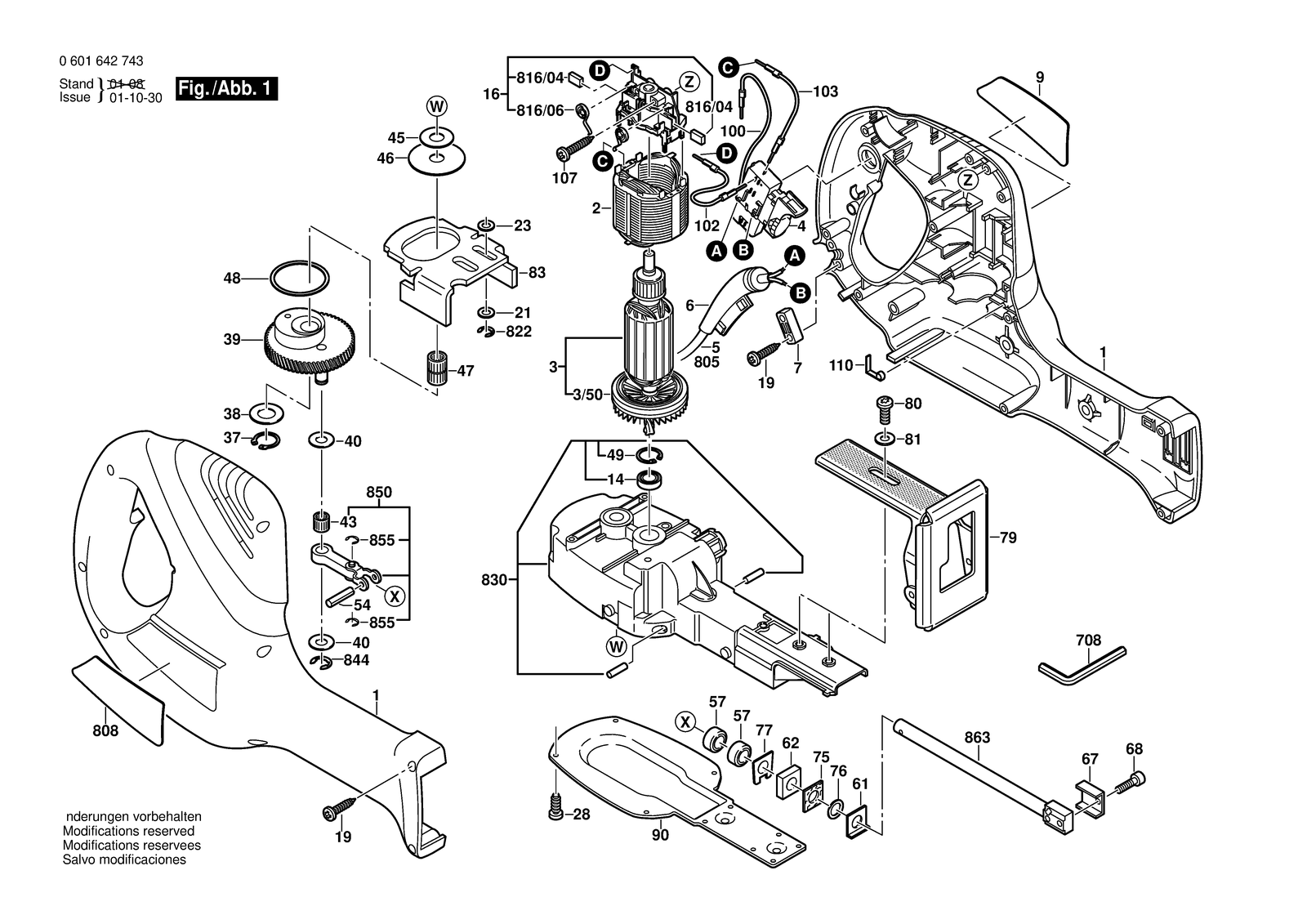

Bosch GFZ 600 E reciprocating saw: exploded parts diagram, 1 sheet, 56 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GFZ 600 E: 56 positions on 1 sheet
Bosch GFZ 600 E parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104623 | Housing Section Blue |
| 100 | 2604448217 | Earth Conductor |
| 102 | 2604448127 | Connecting Cable White L=220 MM |
| 103 | 2604448220 | Connecting Cable |
| 107 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 110 | 2601329057 | Contact Spring |
| 14 | 2600905095 | Ball Bearing 9X24X7 |
| 16 | 2605807082 | Brush Plate |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220647 | Field 230V |
| 21 | 2600100103 | Shim |
| 23 | 2600100525 | Shim |
| 28 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 3 | 2604011219 | Armature 230-240V |
| 3/50 | 2606610093 | Fan |
| 37 | 2916650903 | Spring retaining ring DIN 471-12X1-FSTM |
| 38 | 2600105001 | Shim |
| 39 | 2606320062 | Eccentric Cog Wheel |
| 4 | 2607200579 | Switch |
| 40 | 2600100623 | Shim 0,5 MM |
| 43 | 1610910057 | Needle bearing Ø8XØ12X10 MM |
| 45 | 2600105109 | Shim washer |
| 46 | 2600105013 | Shim |
| 47 | 2600913008 | Needle-Roller Assembly |
| 48 | 2600105004 | Shim |
| 49 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 5 | 1614460072 | Power supply cord |
| 54 | 2603105065 | Pivot Pin |
| 57 | 2600302022 | Sintered-Metal Bushing |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 61 | 2601334011 | Sealing disk |
| 62 | 2600108078 | Felt Disc |
| 67 | 2601321012 | Clamping Saddle |
| 68 | 2910405154 | Hex Socket Head Cap Screw DIN 912-M5X12-12.9 |
| 7 | 2601035001 | Cable Clip |
| 708 | 2607950004 | Offset Screwdriver DIN 911-4 |
| 75 | 2601015082 | Rubber Gasket 1 MM |
| 76 | 2600101038 | Scraper |
| 77 | 2601334012 | Guiding Plate |
| 79 | 2608000239 | Base Plate |
| 80 | 2603414007 | Oval-Head Screw M 5X10 |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 808 | 2601116113 | Nameplate |
| 808 | 2601116117 | Nameplate |
| 81 | 3600100002 | Plain Washer |
| 816/04 | 2604320914 | Carbon-Brush Set |
| 816/06 | 1604652013 | Spiral Spring |
| 822 | 2916080909 | Locking washer DIN 6799-6-FST |
| 83 | 2608012009 | Counterweight |
| 830 | 2605806897 | Gear Housing |
| 844 | 2916080910 | Locking washer DIN 6799-7-FST |
| 850 | 2602130903 | Connecting Rod |
| 855 | 2916080007 | Locking washer DIN 6799-4-FST |
| 863 | 2600780910 | Lifting Rod |
| 9 | 2601116112 | Sticker |
| 90 | 2605500142 | Gear Cover |
