Bosch GFZ 14-35 A

Bosch GFZ 14-35 A all purpose saw: exploded parts diagram, 1 sheet, 91 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GFZ 14-35 A: 91 positions on 1 sheet

Bosch GFZ 14-35 A parts list (1 sheet)

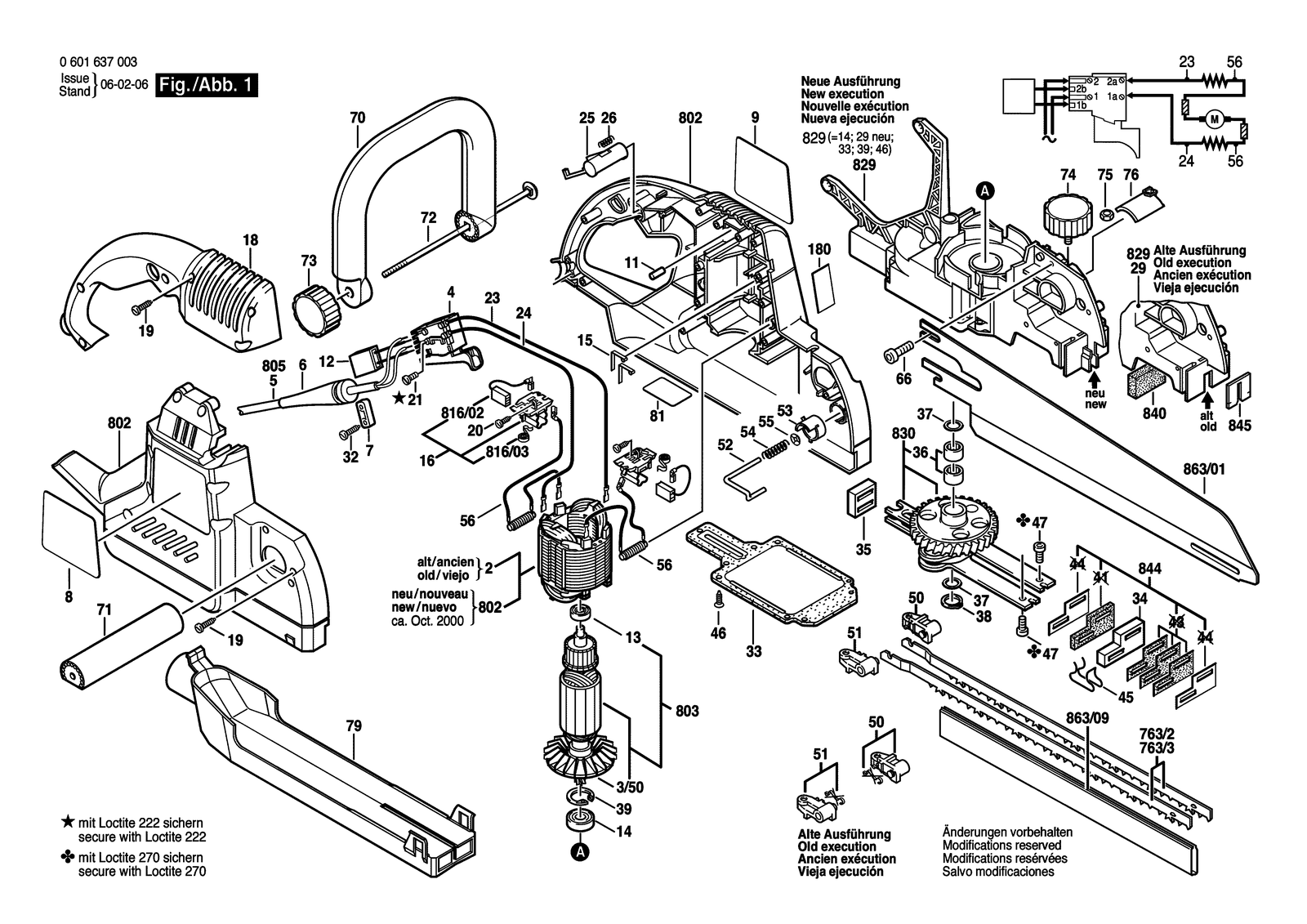

Bosch GFZ 14-35 A parts diagram, sheet 1
No.Part numberPart name
111603100036Rubber Buffer
121607328028Suppression Filter
131610905025Groove ball bearing 7X19X6
141600900042Groove ball bearing
153604680003Contact Spring
163604336002Brush Holder
163604336007Brush Holder
183605500130Housing Cover Blue
1803601119137Warning Plate Caution
193603435009Tapping Screw Torx ST 3,9X19-C-Z
21604220267Field 127V
202910211006Tapping Screw DIN 7971-BZ2,9X13
212603410001Socket head cap screw M3X6,5-4.8
233604411036Connecting Cable White L=280 MM
243604411038Connecting Cable White L=180 MM
253602329028Rejection Slide
263604610041Compression Spring
3/503606610002Fan
322603490022Screw 4X16
333605500133Gear Cover
343600929027Plain bearing
353600929030Plain bearing
363600913008Needle bearing
373600102045Friction Washer
382916650903Spring retaining ring DIN 471-12X1-FSTM
392916660010Spring retaining ring DIN 472-26X1,2 MM
43607200066Switch
453604651020Clamp Spring
463603391003Thread-forming tap. Screw M3X8
473603410020Hex Socket Head Cap Screw M 6X16 MM
51604460092Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2
51604460134Power supply cord J 4,2M 2 X 1,25MM Gummi
51604460137Power supply cord AUS 2,65M 2 X 1,0MM Pvc
51604460203Power supply cord GB 110V 4,15M 2 X 1,5MM H07RN-F
51604460403Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F
51607000391Power supply cord
52604460284Power supply cord I / BR 4,15M 2 X 1,0MM H05 Rn-F
53604460079Power supply cord GB 2,65M 2 X 1,00MM H05RN-F
503602319021Base Body
513602319022Base Body
523601921005Bow
533600522002Actuating Element
543604682004Compression Spring
553600112002Locking washer
563604411035Connecting Cable White L=125 MM
563604463010Suppression Filter
563604463013Suppression Filter
61600703026Grommet Ø7,2-Ø9,5X81 MM
62609005766Grommet
663603386041Hex Socket Head Cap Screw M6
71611035005Cable Clip
72601035001Cable Clip
703605132063Auxiliary Handle
713600723012Distance Pipe
723603300015Round-Head Bolt
733602317021Handwheel M6
743602317020Handwheel M6
753603435044Hex Nut
763601329018Clamping Piece
763/22608632120Saw Blade Set 350 MM
763/32608632123Saw Blade Set 350 MM
793602317017Suction Channel
83601110260Nameplate
83601110306Nameplate
83601110307Nameplate
83601110308Nameplate
83601110309Nameplate
83601110310Nameplate
83601110312Nameplate
83601110313Nameplate
83601110314Nameplate
8021607000710Field 100-120V
8021607000711Field 230V
8031604010496Armature 240V
8031604010497Armature 120V
8031604010498Armature 110-120V
8033604010077Armature 220-230V
8033604010086Armature 110V
8051607000227Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F
813601110332Reference Plate
816/023604321012Carbon Brush
816/023604321025Carbon Brush
816/033604652500Spiral Spring
8293605109010Gear Housing
8303602319020Lift Gear Z=78
8401602381006Insulating Plate 20X20X50 MM
8443600929039Seal Kit
8453600929034Lateral Guide
863/012608045017Sword 350 MM
863/092601329049Guard Profile 350 MM
93601110261Manufacturer's nameplate
