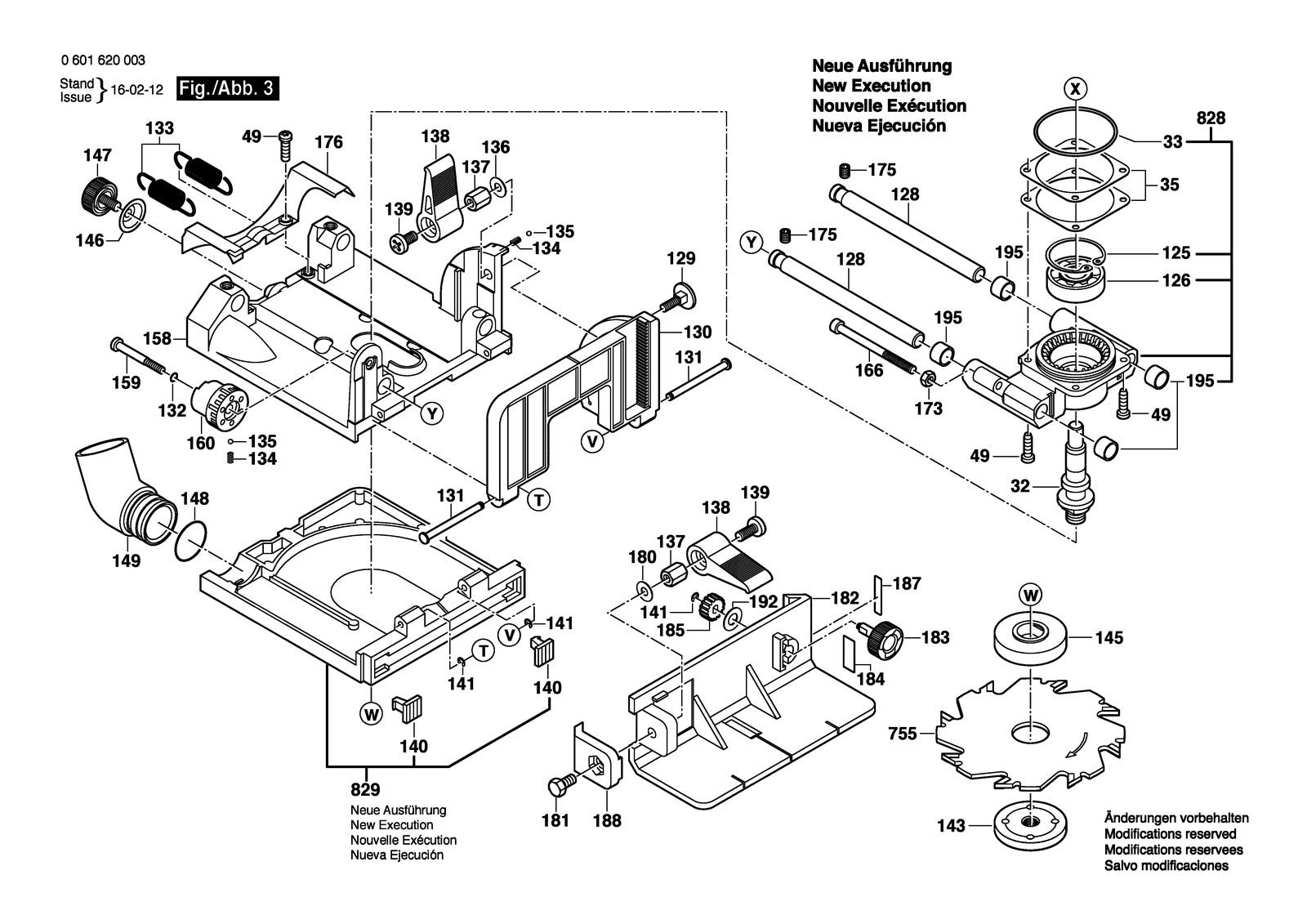

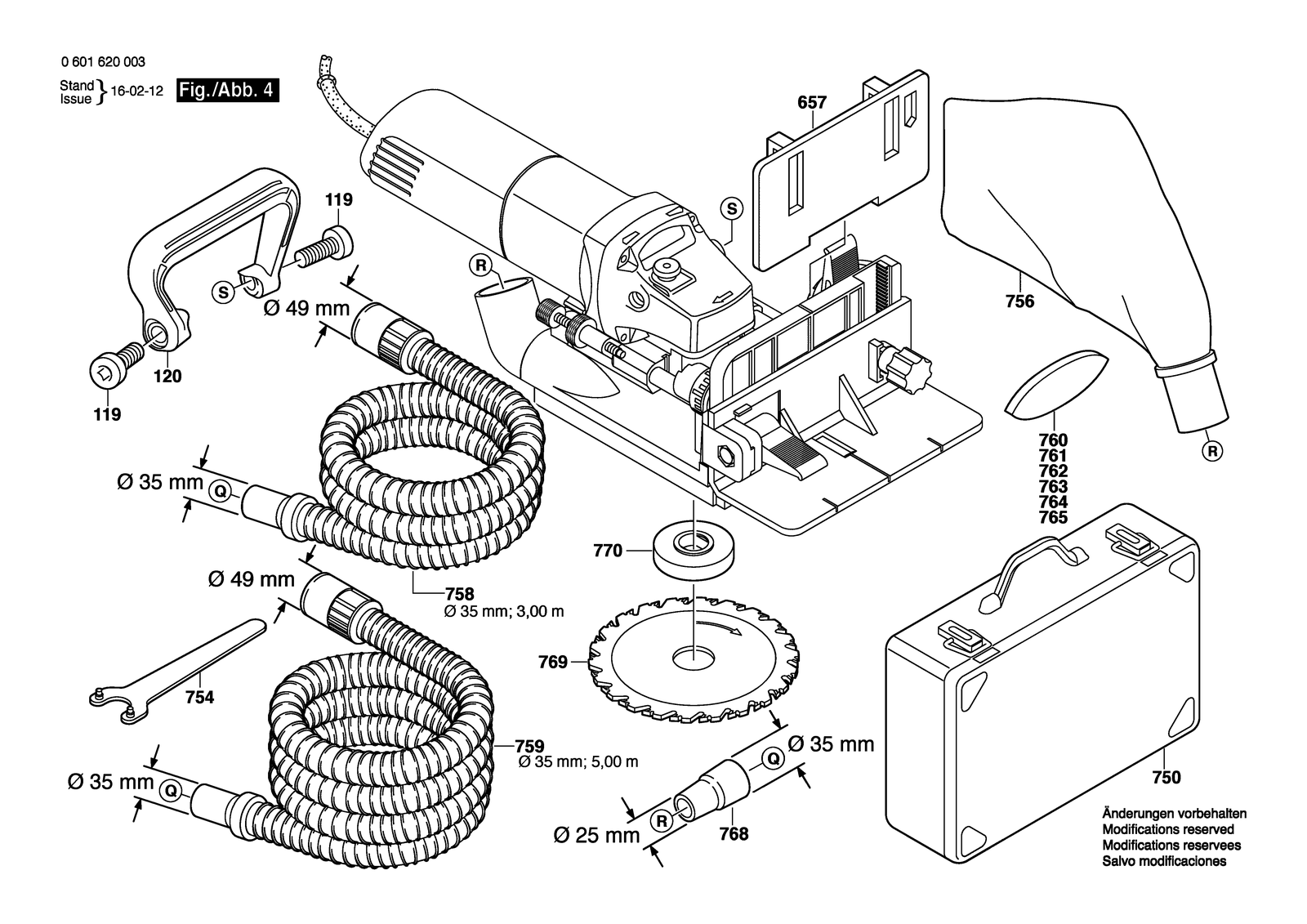

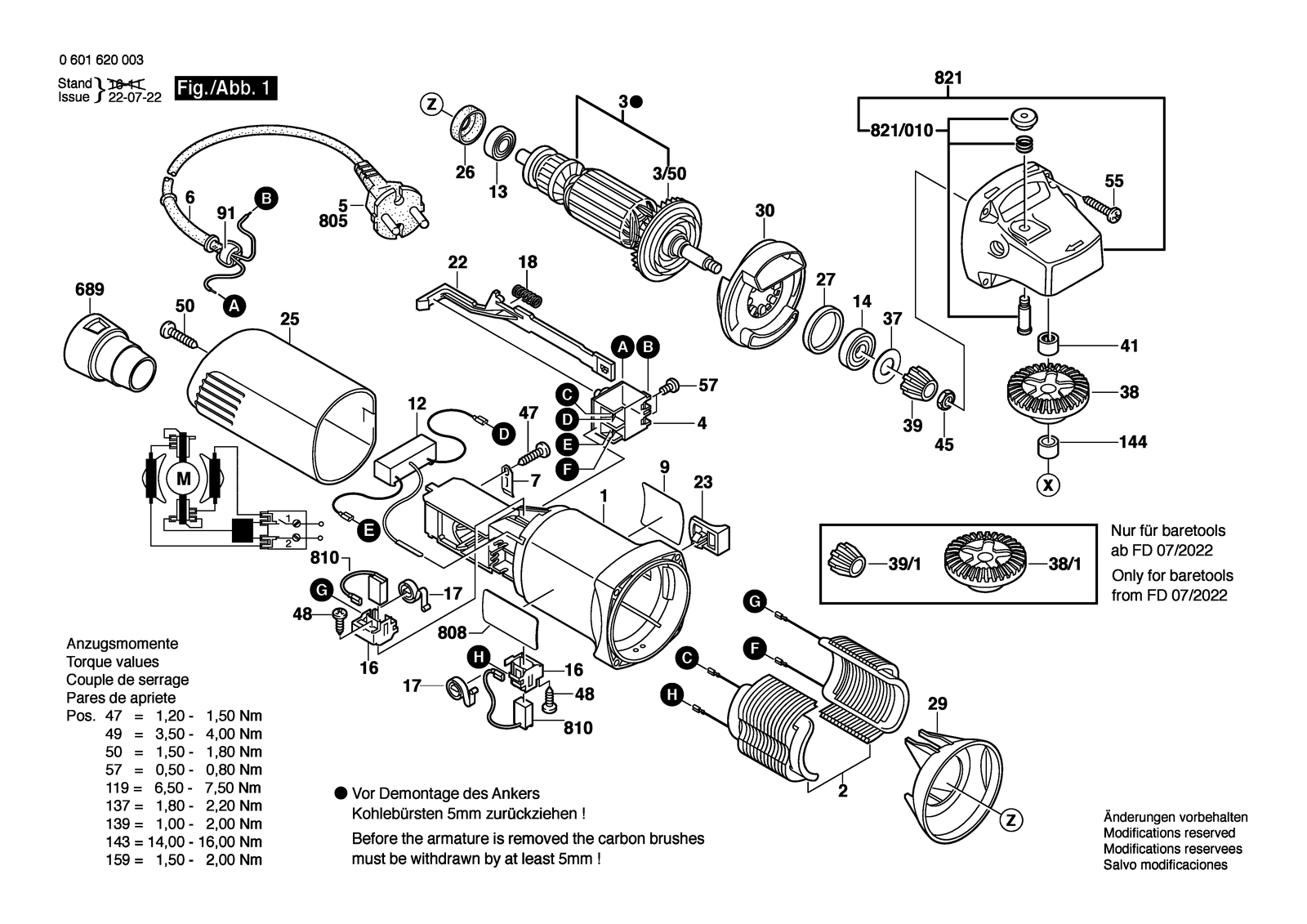

All parts of Bosch GFF 22 A: 124 positions on 4 sheets
Bosch GFF 22 A parts list (4 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P09772 | Motor Housing |
| 119 | 2910135289 | Hex Socket Head Cap Screw DIN 7984-M10X20 |
| 12 | 1607328039 | Suppression Filter |
| 12 | 1607328042 | Suppression Filter |
| 120 | 3602025015 | Handle Black |
| 125 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 126 | 160090003C | Groove ball bearing |
| 128 | 3609202C01 | Straight Pin |
| 129 | 2910281196 | Round-Head Bolt M6X15 DIN 603 |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 130 | 3609202C19 | Frame |
| 131 | 3609202376 | Straight Pin |
| 132 | 3609202C15 | O-Ring |
| 133 | 3609202378 | Extension Spring |
| 134 | 3609202379 | Compression Spring |
| 135 | 3609202380 | Ball |
| 136 | 2916190012 | Shim ring DIN 988-6X12X0,5 |
| 137 | 3603300018 | Hex Nut M 6X13, SW10 |
| 138 | 3601923020 | Tensioning Lever |
| 139 | 2910641191 | Oval-Head Screw DIN 7985-M6X10-4.8 |
| 14 | 1600905016 | Groove ball bearing 8X22X7 |
| 140 | 3609202C03 | Rubber Plug |
| 141 | 3609202382 | Spring retaining ring |
| 143 | 3603376009 | Round Nut |
| 144 | 3600200047 | Ring Piece |
| 145 | 3605700154 | Clamping-Flange Ø 22 MM |
| 146 | 3609202384 | Leaf Spring |
| 147 | 3609202C05 | Screw Plug |
| 148 | 3609202386 | O-Ring |
| 149 | 3609202387 | Vacuum Connection |
| 158 | 3609202C06 | Upper Housing |
| 159 | 3609202C07 | Socket head cap screw |
| 16 | 1619P01811 | Brush Holder |
| 160 | 3609202C08 | Stopper |
| 166 | 3609202C17 | Adjustment aid |
| 17 | 1604652013 | Spiral Spring |
| 173 | 3609202C18 | Hex Nut |
| 175 | 3609202C14 | Set screw |
| 176 | 3609202C16 | Cover |
| 18 | 1604611031 | Compression Spring |
| 180 | 2916190013 | Shim ring 1,0 MM |
| 181 | 2911051197 | Hex Screw DIN 933-M6X16-5.6-A |
| 182 | 3609202C09 | Angle Frame |
| 183 | 3609202C10 | Knurled Thumbscrew |
| 184 | 3609202C11 | Leaf Spring |
| 185 | 3609202394 | Toothed Gear |
| 187 | 3609202C12 | Scale |
| 188 | 3609202C13 | Clamping Piece |
| 192 | 1600100631 | Shim Thick 0,5 MM |
| 195 | 3600905123 | Plain bearing |
| 2 | 1604220330 | Field 110-115V |
| 2 | 2609160011 | Field 220-240V |
| 22 | 1602319009 | Adjusting Slide |
| 23 | 1602026068 | Switch Handle Black |
| 25 | 1605500194 | Housing Cover Blue |
| 26 | 1600502024 | Intermediate Ring |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600591023 | Air-Deflector Ring |
| 3 | 1604010626 | Armature 220-240V |
| 3 | 1604010628 | Armature 110-115V |
| 3/50 | 1606610141 | Fan |
| 30 | 1600591024 | Air-Deflector Ring |
| 32 | 3606120040 | Spindle M10 |
| 33 | 3600210136 | O-Ring 42,0X1,0 MM |
| 35 | 1600136016 | Shim Thick 0,1 MM |
| 35 | 1600136017 | Shim Thick 0,2 MM |
| 37 | 1600100033 | Cover Disc |
| 38 | 2609110150 | Conversion Gear |
| 38/1 | 1619P15035 | Crown Gear |
| 39 | 2609110149 | Pinion |
| 39/1 | 1619P15034 | Pinion |
| 4 | 1607200146 | Switch |
| 41 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 45 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 47 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 48 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 5 | 1604460332 | Power supply cord |
| 5 | 1604460333 | Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460334 | Power supply cord It/br 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460431 | Power supply cord |
| 5 | 2604460223 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 50 | 2912401420 | Tapping Screw DIN7981-ST3,9X19-F-Z |
| 55 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 57 | 2910641081 | Oval-Head Screw DIN7985-M3,5X5-4.8-H |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 657 | 3609202397 | Intermediate Plate |
| 689 | 1600A00B8V | Adapter |
| 7 | 1601302017 | Fastening Clamp |
| 750 | 3605438043 | Carrying Case |
| 750 | 3605438044 | Carrying Case |
| 754 | 1607950043 | Pin-Type Face-Wrench |
| 755 | 3608641013 | Side-Milling Cutter Ø 105X22X4 Mm, Z=8-HM |
| 756 | 3605411003 | Dust Bag |
| 758 | 2607000837 | Air Hose Ø35MM,3M,1 |
| 759 | 1609202230 | Air Hose Ø 35 Mm, L=5 M |
| 760 | 2607000796 | Flat Key 50 ST.,GR.0 |
| 761 | 2607000797 | Flat Key 50 ST.,GR.10 |
| 762 | 2607000103 | Flat Key 50 Piece |
| 763 | 2607000147 | Flat Key 1000 Piece Gr. 0 |
| 764 | 2607000148 | Flat Key 1000 Piece GR.10 |
| 765 | 2607000149 | Flat Key 1000 Piece GR.20 |
| 768 | 1600499005 | Fitting Ø 25X35 MM |
| 769 | 3608641002 | Side-Milling Cutter Ø 105X20X2,8 Mm, Z=22 |
| 770 | 3605700155 | Clamping-Flange Ø 20 MM |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 808 | 3601110451 | Nameplate |
| 810 | 1607000483 | Carbon-Brush Set 10 X 1 607 014 145 |
| 810 | 1607014144 | Carbon-Brush Set |
| 810 | 1607014145 | Carbon-Brush Set |
| 821 | 1605806466 | Gear Housing |
| 821/010 | 1607000298 | Push-Button Black |
| 828 | 3607031855 | Intermediate Flange |
| 829 | 3607031856 | Housing Base |
| 840 | 3609202381 | Rubber Bar |
| 858 | 3609202431 | Upper Housing |
| 860 | 3607031857 | Stopper |
| 866 | 3603410021 | Adjusting Screw |
| 873 | 3603376005 | Round Nut |
| 890 | 3607031514 | Intermediate Flange |
| 891 | 3609202374 | Straight Pin |
| 9 | 3601110610 | Manufacturer's nameplate |
| 91 | 3602317039 | Ferrite Core |
