Bosch GFF 18V-22
Bosch GFF 18V-22 biscuit jointer: exploded parts diagram, 3 sheets, 74 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

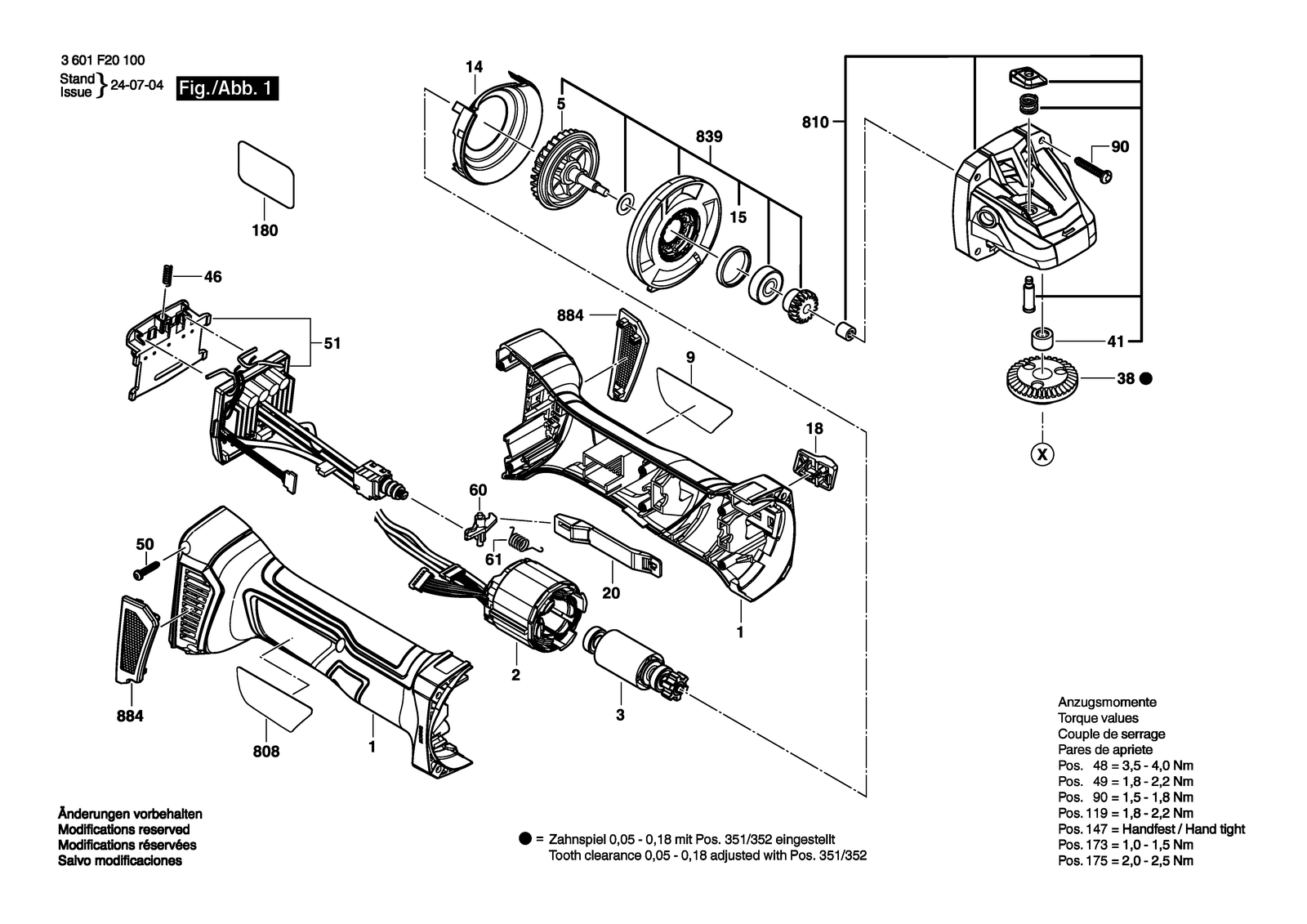

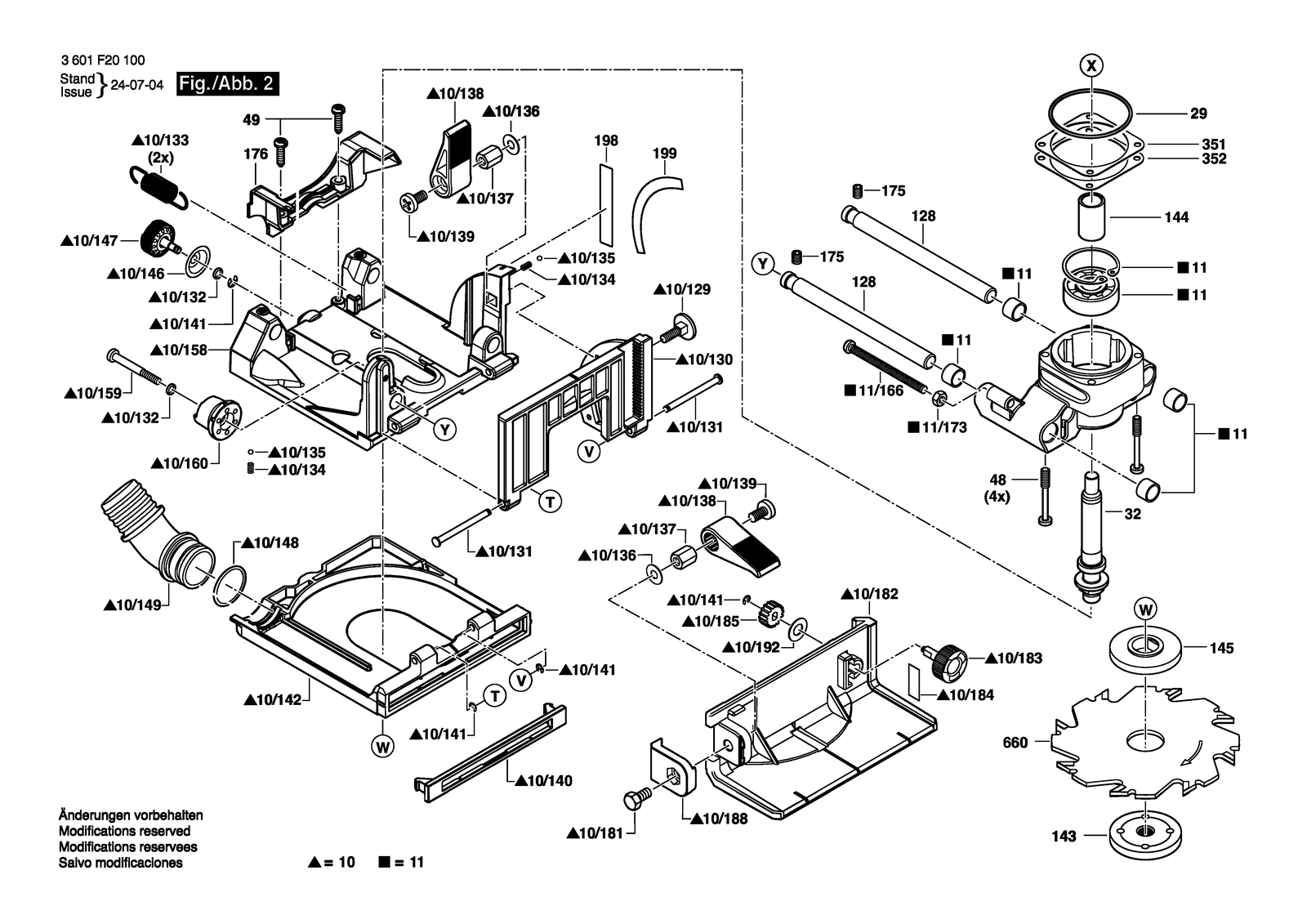

All parts of Bosch GFF 18V-22: 74 positions on 3 sheets
Bosch GFF 18V-22 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P15044 | Motor Housing |
| 10 | 1600A02LT3 | Face milling cutter |
| 10/129 | 1600A02LP5 | Round-Head Bolt |
| 10/130 | 1600A02LM8 | Frame |
| 10/131 | 1600A02LN7 | Straight Pin |
| 10/132 | 1610210043 | O-Ring 4,0X1,5 MM |
| 10/133 | 1600A02LP9 | Extension Spring |
| 10/134 | 160461205E | Compression Spring |
| 10/135 | 1600A02LN8 | Ball |
| 10/136 | 1600A02LP4 | Shim ring |
| 10/138 | 1600A02LP0 | Tensioning Lever |
| 10/139 | 1600A02LP6 | Oval-Head Screw |
| 10/140 | 1600A02LN4 | Rubber stop |
| 10/141 | 1600150047 | Spring retaining ring |
| 10/142 | 1600A02LN0 | Housing Base |
| 10/146 | 1600A02LP1 | Sealing washer |
| 10/147 | 1600A02LP2 | Screw Plug |
| 10/148 | 16002100B9 | O-Ring |
| 10/149 | 1600A02LN5 | Vacuum Connection |
| 10/158 | 1600A02LM9 | Upper Housing |
| 10/159 | 160341001U | Socket head cap screw |
| 10/160 | 1600A02LN6 | Depth-Gauge |
| 10/181 | 16034350A8 | Hex Screw |
| 10/182 | 1600A02LN1 | Workpiece stop |
| 10/183 | 1600A02LP3 | Knurled Thumbscrew |
| 10/184 | 160120000N | Leaf Spring |
| 10/185 | 160630001N | Toothed Gear |
| 10/188 | 1600A02LN2 | Clamping Piece |
| 10/192 | 1600100631 | Shim Thick 0,5 MM |
| 11 | 1600A02LT4 | Intermediate Flange |
| 11/166 | 1600A02LM5 | Stop Screw |
| 11/173 | 1600A02LM6 | Hex Nut |
| 119 | 1619P07611 | Hex Screw |
| 120 | 16051321AE | Handle |
| 128 | 1600A02LP7 | Straight Pin |
| 14 | 1600591065 | Air-Deflector Ring |
| 143 | 1600A027JS | Round Nut |
| 144 | 1600A02LR2 | Spacer Sleeve |
| 145 | 3605700154 | Clamping-Flange Ø 22 MM |
| 15 | 1600206025 | Rubber Ring |
| 175 | 2610924685 | Adjusting Screw |
| 176 | 1600A02LR0 | Cover |
| 18 | 1619P15338 | Switch Handle |
| 199 | 160111C5CT | Sticker |
| 2 | 1600A01A6N | Stator |
| 20 | 1619P15050 | Adjusting Slide |
| 29 | 1619P02820 | O-Ring 44,0X1,0 MM |
| 3 | 1600A01A6S | Rotor |
| 32 | 1600A02N5H | Spindle |
| 351 | 1619P02821 | Shim 0,1 MM |
| 352 | 1619P02822 | Shim 0,2 MM |
| 38 | 1619P15331 | Crown Gear |
| 41 | 1600200029 | Plain bearing |
| 46 | 1609280477 | Compression Spring |
| 48 | 3603435055 | Torx Oval-Head Screw |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 5 | 1619P15054 | Fan |
| 50 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 51 | 1600A01NC3 | Electronics Module |
| 60 | 1619P15795 | Reverse-Transfer Lever |
| 61 | 1619P15806 | Torsion Spring |
| 657 | 1600A02LR1 | Intermediate Plate |
| 658 | 1600A02UW6 | Dust Bag |
| 659 | 1607950052 | Pin-Type Face-Wrench |
| 660 | 3608641013 | Side-Milling Cutter Ø 105X22X4 Mm, Z=8-HM |
| 808 | 160111AD37 | Nameplate |
| 808 | 160111AD38 | Nameplate |
| 810 | 1619P16238 | Gear Housing |
| 839 | 1619P16235 | Bevel Gear Shaft |
| 884 | 1607000CA9 | Filter Unit |
| 894 | 1615430020 | Grease Tube 225 Ml |
| 895 | 1605430003 | Grease Tube 225 Ml |
| 9 | 160111C5ET | Manufacturer's nameplate |
| 90 | 2603490024 | Torx Oval-Head Screw 4X25 |
