Bosch GEX 34-150

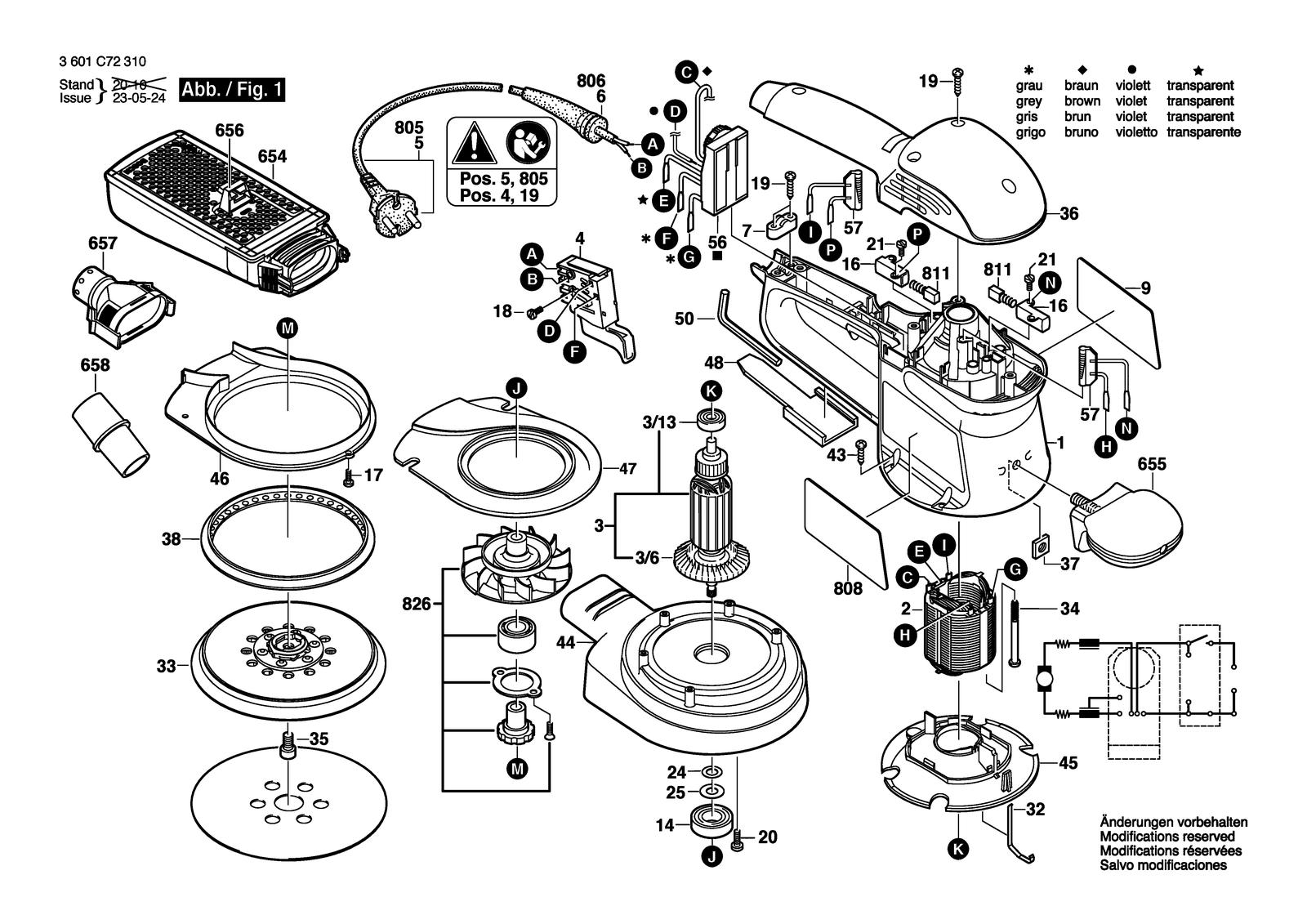

Bosch GEX 34-150 random orbital sander: exploded parts diagram, 1 sheet, 85 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GEX 34-150: 85 positions on 1 sheet
Bosch GEX 34-150 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104410 | Housing Section Blue |
| 1 | 2605104410 | Housing Section Blue |
| 14 | 2600905034 | Groove ball bearing |
| 14 | 2600905034 | Groove ball bearing |
| 16 | 2604337016 | Brush Holder |
| 16 | 2604337016 | Brush Holder |
| 17 | 2603435089 | Torx Oval-Head Screw M3X8 |
| 17 | 2603435089 | Torx Oval-Head Screw M3X8 |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220663 | Field 220-240V |
| 2 | 2604220663 | Field 220-240V |
| 20 | 1600A00RD6 | Special Screw |
| 20 | 1600A00RD6 | Special Screw |
| 21 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 21 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 24 | 2600101047 | Shim 0,3 MM |
| 24 | 2600101047 | Shim 0,3 MM |
| 25 | 2600100041 | Plain Washer DIN 315-M8-GT-C |
| 25 | 2600100041 | Plain Washer DIN 315-M8-GT-C |
| 3 | 2604011240 | Armature 110-127V |
| 3 | 2604011240 | Armature 110-127V |
| 3/13 | 2600905086 | Groove ball bearing 7X19X6 |
| 3/13 | 2600905086 | Groove ball bearing 7X19X6 |
| 3/6 | 2606610076 | Fan |
| 32 | 2601329053 | Contact Strap |
| 32 | 2601329053 | Contact Strap |
| 33 | 2608614078 | Backing Pad Ø125 |
| 33 | 2608614075 | Backing Pad Ø150 |
| 34 | 2603435086 | Tapping Screw |
| 34 | 2603435086 | Tapping Screw |
| 35 | 1600A015G7 | Hex Socket Head Cap Screw |
| 35 | 1600A015G7 | Hex Socket Head Cap Screw |
| 36 | 2605500124 | Housing Cover Blue |
| 36 | 2605500124 | Housing Cover Blue |
| 37 | 2915121006 | Square Nut DIN 562-M6-04 |
| 37 | 2915121006 | Square Nut DIN 562-M6-04 |
| 38 | 1600A00JE7 | Friction Ring |
| 38 | 1600A00JE7 | Friction Ring |
| 4 | 2607200260 | Switch |
| 4 | 2607200260 | Switch |
| 43 | 2603435042 | Thread-forming tap. Screw |
| 43 | 2603435042 | Thread-forming tap. Screw |
| 44 | 2600282015 | Suction Hood |
| 44 | 2600282015 | Suction Hood |
| 45 | 2601328047 | Air-Deflector Ring |
| 45 | 2601328047 | Air-Deflector Ring |
| 46 | 2601328048 | Suction Piece |
| 46 | 2601328048 | Suction Piece |
| 47 | 2601328049 | Suction Piece |
| 47 | 2601328049 | Suction Piece |
| 48 | 2601035002 | Pusher |
| 48 | 2601035002 | Pusher |
| 5 | 2604460229 | Power supply cord SAM 2,68M 2 X 082MM SJ 18/2 |
| 5 | 2604460229 | Power supply cord SAM 2,68M 2 X 082MM SJ 18/2 |
| 50 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 50 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 56 | 2607230118 | Speed governor 100-120V |
| 56 | 2607230118 | Speed governor 100-120V |
| 57 | 2604448100 | Connecting Cable White L=68 MM |
| 57 | 2604448100 | Connecting Cable White L=68 MM |
| 654 | 2605411193 | Dust Chamber |
| 654 | 2605411193 | Dust Chamber |
| 655 | 2602026069 | Auxiliary Handle Black |
| 655 | 2602026069 | Auxiliary Handle Black |
| 656 | 2605702039 | Adapter |
| 656 | 2605702039 | Adapter |
| 657 | 2600306012 | Adapter |
| 657 | 2600306012 | Adapter |
| 658 | 2610907746 | Adapter |
| 658 | 2610907746 | Adapter |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 806 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 806 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 808 | 160111A82R | Nameplate |
| 808 | 160111A82M | Nameplate |
| 811 | 1607014117 | Carbon Brush |
| 811 | 1607014117 | Carbon Brush |
| 826 | 1600A0231M | Fan |
| 826 | 1600A0230T | Fan |
| 9 | 160111C3VD | Manufacturer's nameplate GEXAC33-5 |
| 9 | 160111C3VB | Manufacturer's nameplate GEXAC33-6 |
