Bosch GEX 270 AE

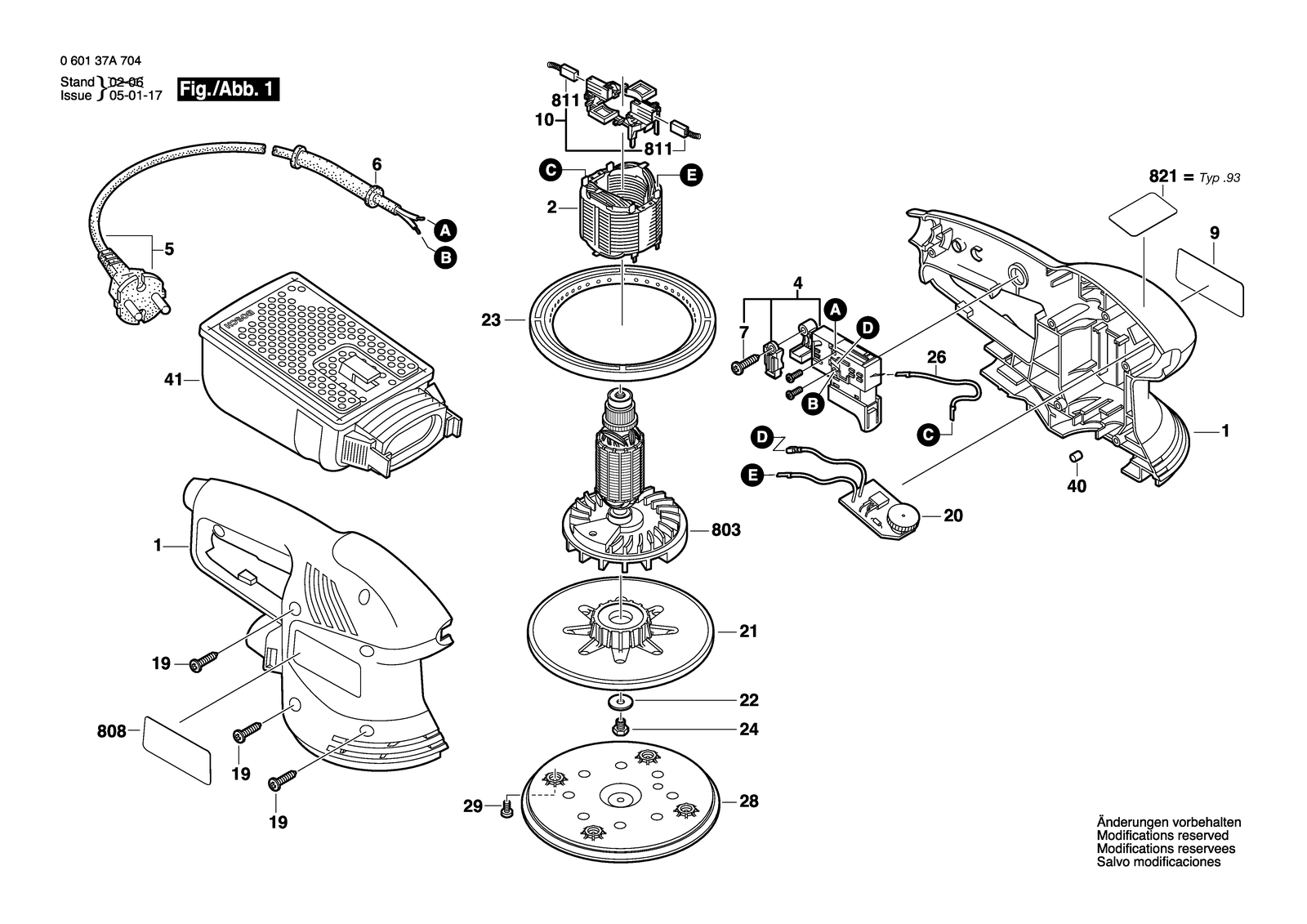

Bosch GEX 270 AE delta sander: exploded parts diagram, 1 sheet, 67 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GEX 270 AE: 67 positions on 1 sheet
Bosch GEX 270 AE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105022 | Housing Section |
| 1 | 2605105022 | Housing Section |
| 10 | 2604337088 | Brush Plate |
| 10 | 2604337088 | Brush Plate |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220649 | Field 115V |
| 2 | 2609005423 | Field |
| 2 | 2604220649 | Field 115V |
| 2 | 2609005423 | Field |
| 20 | 2607233047 | Rpm Actuator 115-120V |
| 20 | 2607233048 | Rpm Actuator 230-240V |
| 20 | 2607233047 | Rpm Actuator 115-120V |
| 20 | 2607233048 | Rpm Actuator 230-240V |
| 21 | 2608601161 | Tool Holding Fixture |
| 21 | 2608601161 | Tool Holding Fixture |
| 22 | 2916011895 | Plain Washer DIN 9021-B 8,4-ST |
| 22 | 2916011895 | Plain Washer DIN 9021-B 8,4-ST |
| 23 | 2600206021 | Friction Ring |
| 23 | 2600206021 | Friction Ring |
| 24 | 2911061232 | Hex Screw M8X10-8.8-A M31A |
| 24 | 2911061232 | Hex Screw M8X10-8.8-A M31A |
| 26 | 3604440527 | Connecting Cable White L=63 MM |
| 26 | 3604440527 | Connecting Cable White L=63 MM |
| 28 | 2608601172 | Backing Pad |
| 28 | 2608601172 | Backing Pad |
| 29 | 2603413035 | Oval-Head Screw M4X8 |
| 29 | 2603413035 | Oval-Head Screw M4X8 |
| 4 | 2607200526 | Switch |
| 4 | 2607200526 | Switch |
| 40 | 2603100056 | Damping rubber |
| 40 | 2609000549 | Rubber Buffer |
| 41 | 2605411121 | Dust container 1 Piece |
| 41 | 2605411121 | Dust container 1 Piece |
| 5 | 2604460153 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460243 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460245 | Power supply cord CN 220V 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460259 | Power supply cord EU 230V 2,7M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460153 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460243 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460245 | Power supply cord CN 220V 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460259 | Power supply cord EU 230V 2,7M 2 X 0,75MM H05 Vv-F |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 6 | 2609002019 | Grommet |
| 7 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 7 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 803 | 2604010984 | Armature 115V |
| 803 | 2604010985 | Armature 230-240V |
| 803 | 2604010984 | Armature 115V |
| 803 | 2604010985 | Armature 230-240V |
| 808 | 2601116026 | Nameplate |
| 808 | 2601116027 | Nameplate |
| 808 | 2601116028 | Nameplate |
| 808 | 2601116029 | Nameplate |
| 808 | 2601116030 | Nameplate |
| 808 | 2601116628 | Nameplate |
| 808 | 2601116629 | Nameplate |
| 808 | 2601116630 | Nameplate |
| 808 | 2601116631 | Nameplate |
| 808 | 2601116632 | Nameplate |
| 811 | 2604321925 | Carbon-Brush Set |
| 811 | 2604321925 | Carbon-Brush Set |
| 821 | 1601110G86 | Reference Plate |
| 9 | 2601116041 | Manufacturer's nameplate |
| 9 | 2601116041 | Manufacturer's nameplate |
