Bosch GEX 18V-150-3

Bosch GEX 18V-150-3 random orbital sander: exploded parts diagram, 1 sheet, 26 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GEX 18V-150-3: 26 positions on 1 sheet

Bosch GEX 18V-150-3 parts list (1 sheet)

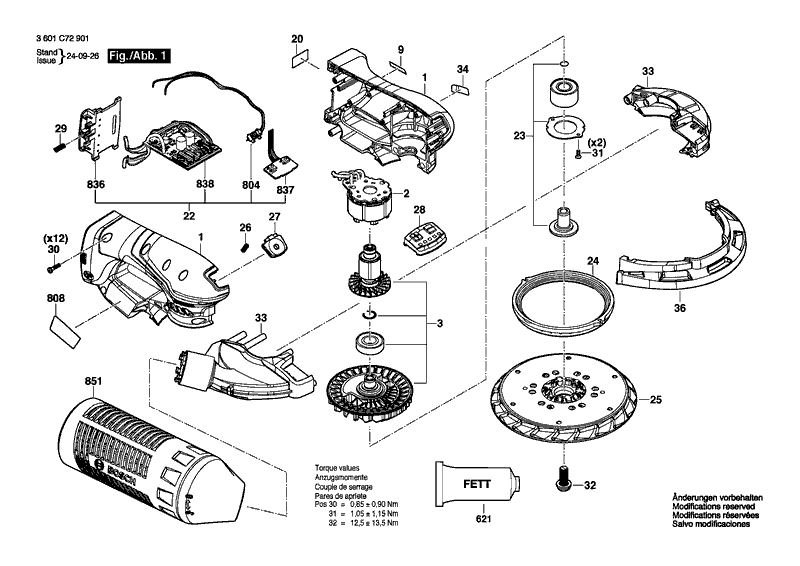

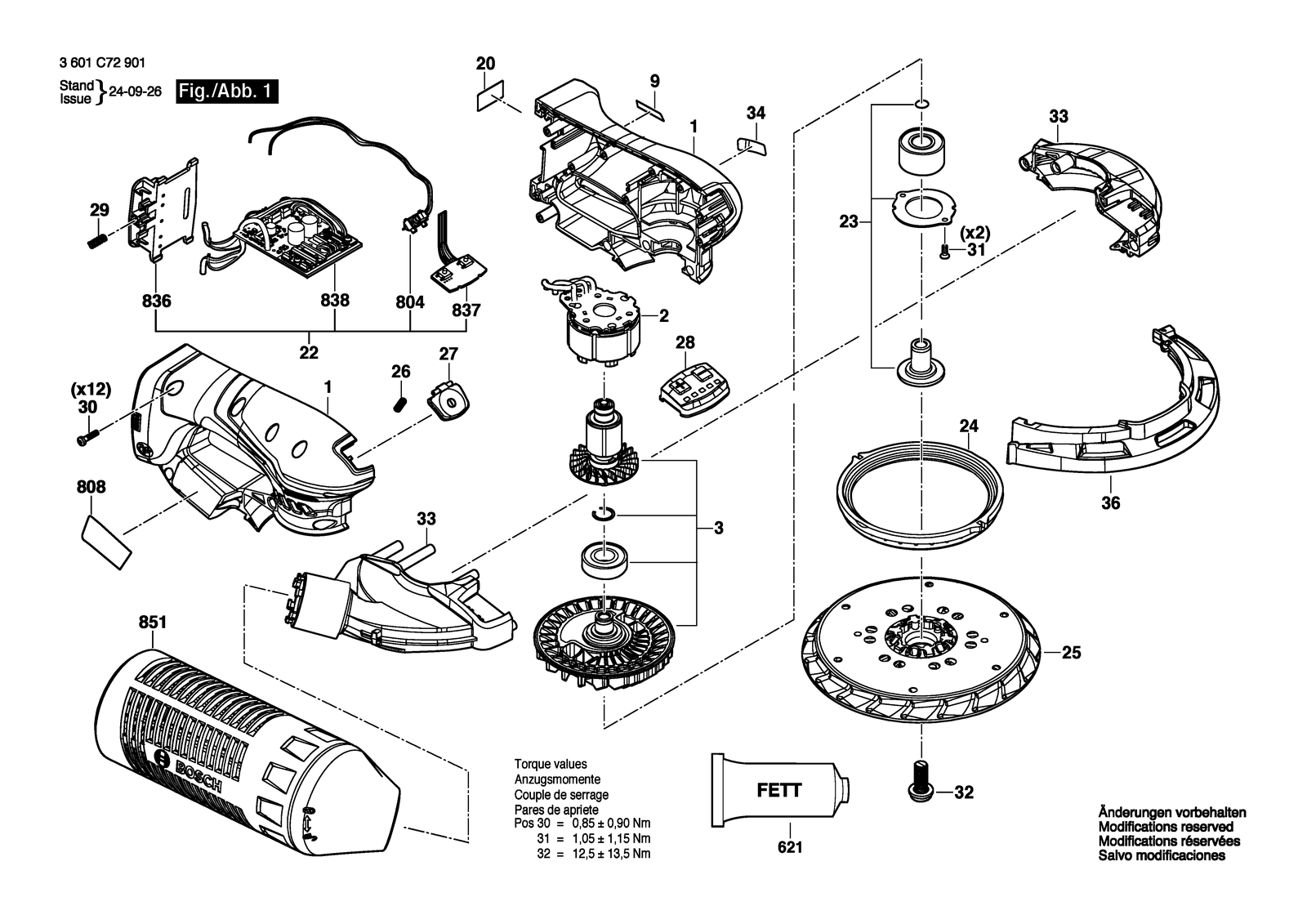

Bosch GEX 18V-150-3 parts diagram, sheet 1
No.Part numberPart name
11619PS1147Housing Assembly
21619PS1148Stator
201619PS1152Type Label
221619PS1153Electronic Assembly
231619PS1154Bearing Flange
241619PB5547Friction Ring
251619PS1155Backing Pad
261619PB5557Compression Spring
271619PB5558Switch Button
281619PS1158Cover
291619PB5556Compression Spring
31619PS1149Armature
301619PS1628Screw
311619PS1161Screw
321619PS1162Screw
331619PS1163Housing Assembly
341619PS1164Label
361619PS1168Corner Protection
6211615430015Grease Tube 225 Ml
8042607202753Switch
8081619PS1150Nameplate
8361600A023LUContact retainer
8371619PS1170Operating column
8381619PS1358Electronic Module
8511619PS1167Dust container
91619PS1151Manufacturer's nameplate
