Bosch GEX 150 TURBO

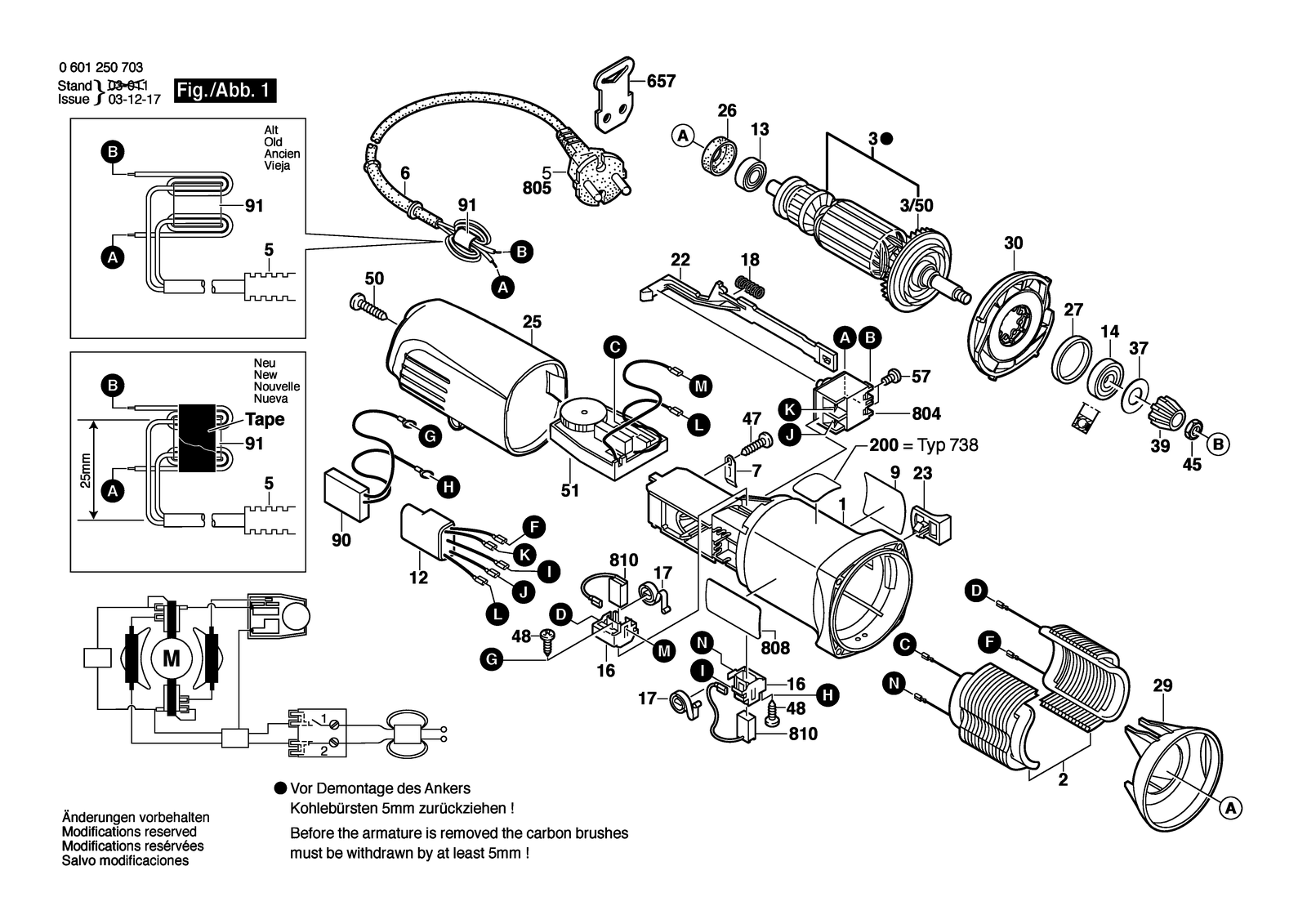

Bosch GEX 150 TURBO assembly drawing: exploded parts diagram, 2 sheets, 86 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GEX 150 TURBO: 86 positions on 2 sheets
Bosch GEX 150 TURBO parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P09772 | Motor Housing |
| 110 | 2601119008 | Reference Plate |
| 111 | 3600210136 | O-Ring 42,0X1,0 MM |
| 112 | 1600136016 | Shim Thick 0,1 MM |
| 112 | 1600136017 | Shim Thick 0,2 MM |
| 114 | 2601990030 | Changeover Lever |
| 115 | 2604601089 | Compression Spring |
| 12 | 1619P00810 | Suppression Capacitor |
| 12 | 2609120008 | Suppression Filter |
| 124 | 2600206019 | Friction Ring |
| 125 | 2608601106 | Backing Pad Ø150 |
| 127 | 2910130240 | Hex Socket Head Cap Screw DIN 7984-M8X18-8.8 |
| 128 | 2601015087 | Seal |
| 129 | 2603435042 | Thread-forming tap. Screw |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 130 | 2603435083 | Thread-forming tap. Screw |
| 131 | 2601328072 | Suction Tube |
| 133 | 2910141203 | Hex Socket Head Cap Screw DIN 912-M6X25-8.8 |
| 135 | 2604421013 | Torx Flat-Head Screw |
| 136 | 2600015008 | Seal Ring |
| 137 | 3600210101 | O-Ring 5,0X1,0 MM |
| 14 | 1619P11240 | Groove ball bearing |
| 140 | 2603102010 | Crank Rod |
| 142 | 2608012010 | Counterweight |
| 143 | 2602026115 | Control Lever Red |
| 16 | 1619P01811 | Brush Holder |
| 17 | 1604652013 | Spiral Spring |
| 18 | 1604611031 | Compression Spring |
| 2 | 1604220328 | Field 220-240V |
| 2 | 1604220329 | Field 100-120V |
| 200 | 3601119137 | Warning Plate Caution |
| 21 | 2605806438 | Gear Housing |
| 22 | 1602319009 | Adjusting Slide |
| 23 | 1602026068 | Switch Handle Black |
| 25 | 2605500167 | Housing Cover |
| 26 | 1600502024 | Intermediate Ring |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600591023 | Air-Deflector Ring |
| 3 | 1604010626 | Armature 220-240V |
| 3 | 1604010627 | Armature 100-120V |
| 3/50 | 1606610141 | Fan |
| 30 | 2601328071 | Air-Deflector Ring |
| 37 | 1600100033 | Cover Disc |
| 39 | 2609110149 | Pinion |
| 41 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 45 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 47 | 2609110052 | Special Screw |
| 48 | 1619P02537 | Screw and washer assembly |
| 5 | 1604460196 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1604460290 | Power supply cord GB 110V 4,15M 2X1 H05 Rn-F |
| 5 | 1604460293 | Power supply cord |
| 5 | 1604460294 | Power supply cord |
| 5 | 1604460402 | Power supply cord CH 4,15M 2 X 1,0MM H05 Rn-F |
| 50 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 51 | 1607233167 | Speed governor 230-240V |
| 51 | 1607233168 | Speed governor |
| 55 | 2910611022 | Tapping Screw DIN 7981-ST3,9X25-C-H |
| 57 | 2910641081 | Oval-Head Screw DIN7985-M3,5X5-4.8-H |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 655 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 656 | 160202509T | Auxiliary Handle |
| 657 | 3602311050 | Key Holder |
| 7 | 1601302017 | Fastening Clamp |
| 7 | 1619P00499 | Fastening Clamp |
| 804 | 1607200146 | Switch |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 808 | 2601116001 | Nameplate |
| 808 | 2601116294 | Nameplate |
| 808 | 2601116296 | Nameplate |
| 808 | 2601116297 | Nameplate |
| 808 | 2601116299 | Nameplate |
| 808 | 2601116300 | Nameplate |
| 810 | 1607014144 | Carbon-Brush Set |
| 810 | 1607014145 | Carbon-Brush Set |
| 810 | 1619P01869 | Carbon-Brush Set |
| 819 | 2606316902 | Pinion |
| 821 | 2606319903 | Toothed Belt Wheel |
| 832 | 3607031724 | Cover Disc |
| 838 | 2605806890 | Gear Housing |
| 840 | 2603102012 | Crank Rod |
| 844 | 2602026106 | Cap-Handle |
| 9 | 3601110612 | Manufacturer's nameplate |
| 90 | 2607329147 | Suppression Filter |
| 91 | 3602317039 | Ferrite Core |
