Bosch GEX 150 ACE

Bosch GEX 150 ACE random orbital sander: exploded parts diagram, 2 sheets, 93 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GEX 150 ACE: 93 positions on 2 sheets

Bosch GEX 150 ACE parts list (2 sheets)

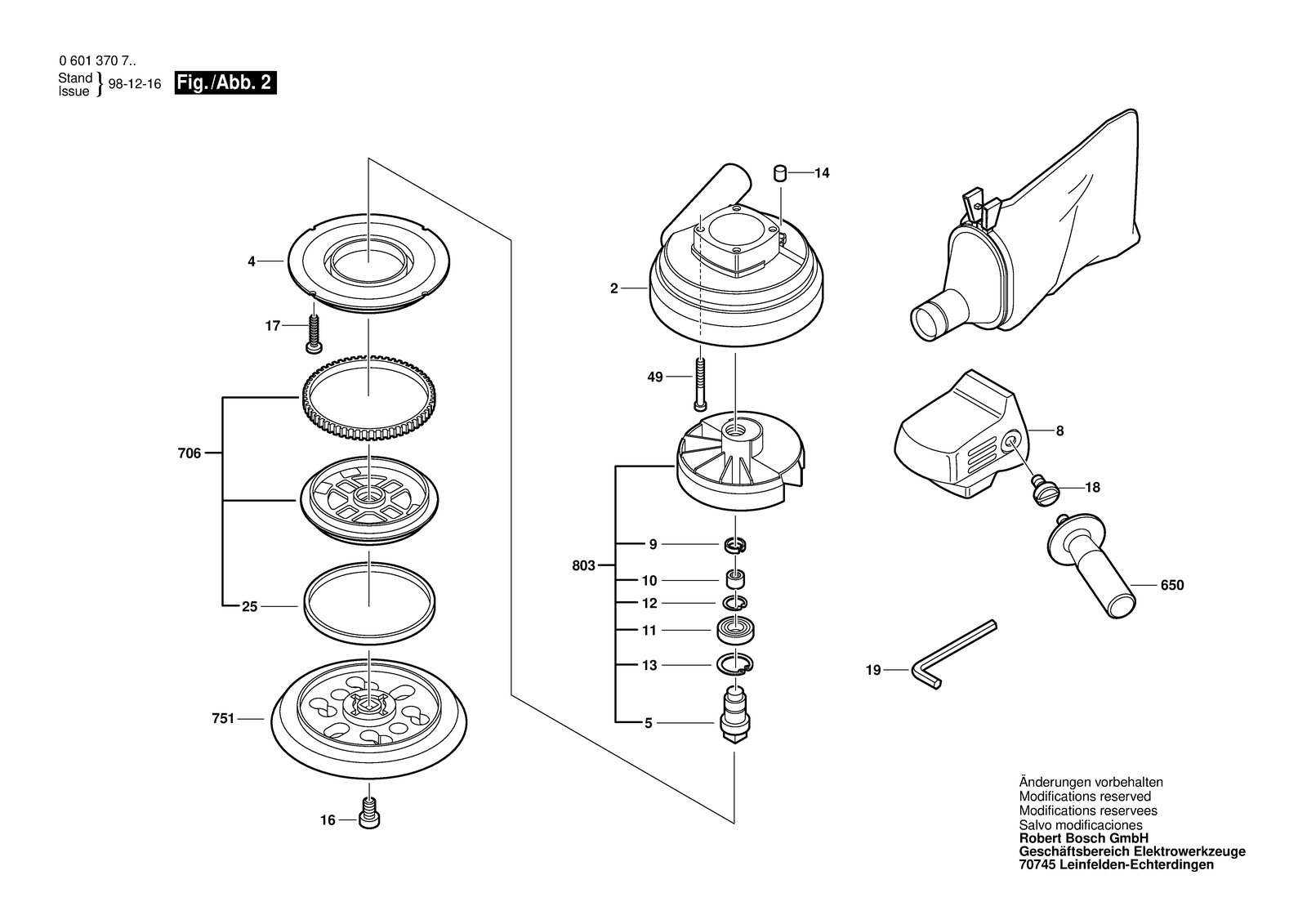

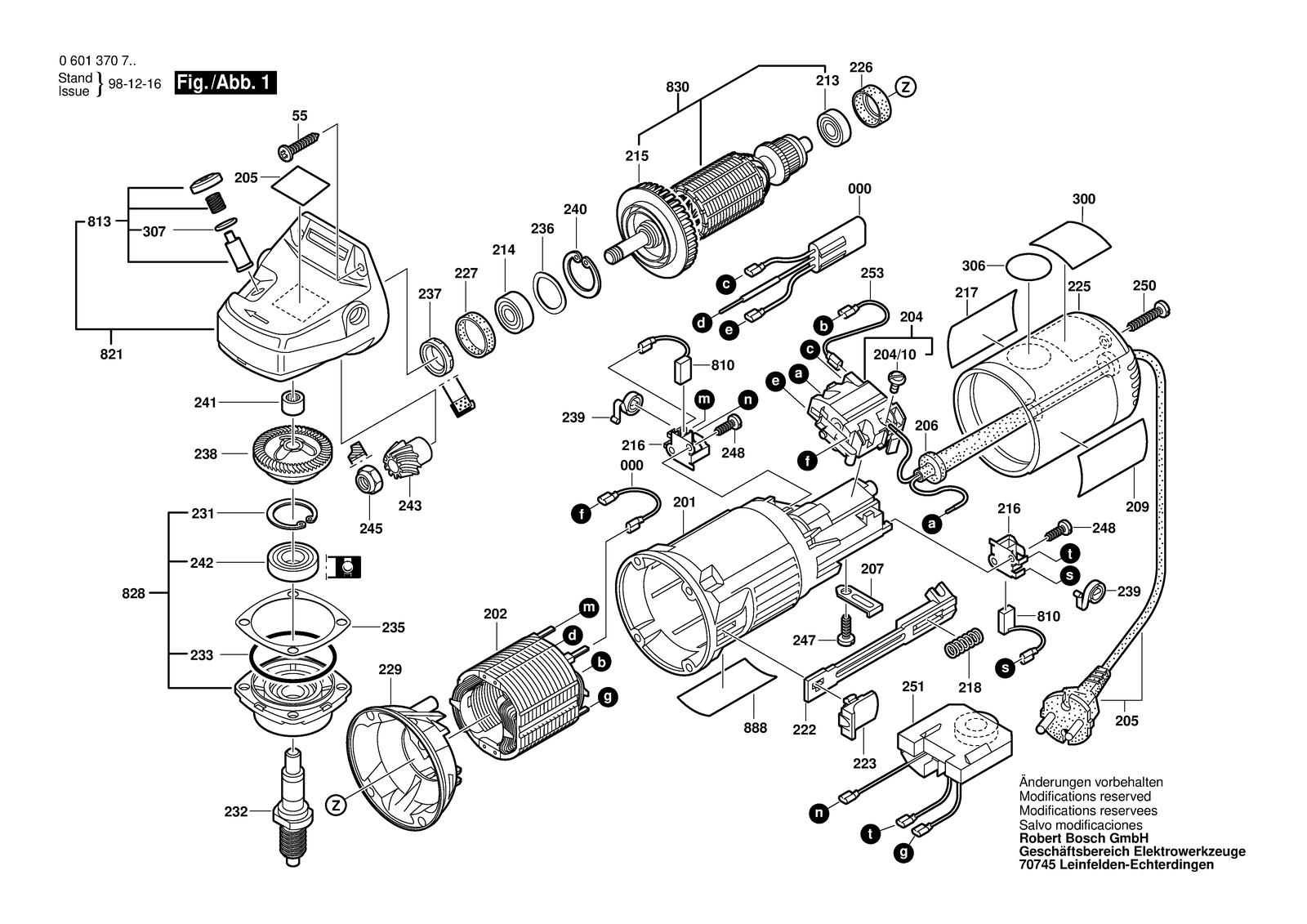

Bosch GEX 150 ACE parts diagram, sheet 1Bosch GEX 150 ACE parts diagram, sheet 2
No.Part numberPart name
102600905032Ball Bearing 7X19X6
111600905031Groove ball bearing 12X28X8
122916600007Retaining ring 12 DIN 9045
132916660011Spring retaining ring DIN 472-28X1,2 MM
143603100019Plug 8,0X9 MM
163603414017Hex Socket Head Cap Screw
172910211011Tapping Screw DIN 7971-BZ3,5X13
183603490015Pan head screw M 10X12 MM
1803601119137Warning Plate Caution
191907950007Offset Screwdriver DIN 911;SW6
23605500076Fan Housing
2010601370703Random orbital sander
2021604220224Field 230-240V
2021604220225Field 100V
2021604220226Field 110-120V
2021604220227Field 240V
2041607200086On-Off Switch
204/102910110048Pan head screw DIN 85-AM3X6-CUZN
2051604460137Power supply cord AUS 2,65M 2 X 1,0MM Pvc
2051604460138Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2
2051604460139Power supply cord
2051604460152Power supply cord I 2,65M 2 X 1,0MM H05VV-F
2051604460156Power supply cord GB 240V 4,15M 2 X 1,0MM H05VV-F
2051604460160Power supply cord CH 4,15M 2 X 1,0MM H07RN-F
2053604460078Power supply cord GB 4,15M 2 X 1,00MM H05 Vv-F
2062600703011Grommet Ø8,3-Ø9,4X95 MM
2062600703013Grommet Ø7,6-Ø8,2X95 MM
2071601302017Fastening Clamp
2091601110731Manufacturer's nameplate
2091601118309Manufacturer's nameplate
2122607329124Suppression Filter
2132600905032Ball Bearing 7X19X6
2141600905011Groove ball bearing 8X22X7
2151606610121Fan
2161600A003G4Brush Holder
2171601118310Manufacturer's nameplate
2181604611026Compression Spring
2221602319002Adjusting Slide
2231602026057Switch Handle Black
2251600508011Housing Cover Blue
2261600502020Rubber Bushing
2271600206025Rubber Ring
2291601328005Air-Deflector Ring
2312916660013Retaining clip DIN 472-32X1,2 MM
2323603523014Grinding Spindle M14, SW17
2333600210124O-Ring Red 46,0X1,1 MM
2351600136010Shim Thick 0,2 MM
2351600136011Shim Thick 0,3 MM
2351600136012Shim Thick 0,1 MM
2361600150011Spring Washer
2371600290016Rotary shaft lip seal
2381606333601Crown Gear Z=36
2391604652013Spiral Spring
2402916660009Spring retaining ring DIN 472-25X1,2MM
2411600910018Needle bearing Ø8XØ12X8 MM
2423600905069Groove ball bearing
2431606333242Bevel Gear Z=11
2451603300016Hex Nut M7, SW10
2472910211018Tapping Screw DIN 7971-ST3,9X13-F
2481613435034Lens Head Screw 3X10 St
2491603435026Thread-forming tap. Screw
253600290034Ring Ø 88X5,7 MM
2502910211021Tapping Screw DIN 7971-ST3,9X22-F
2511607233033Speed governor 220-240V
2511607233037Speed governor 100V
2511607233038Speed governor 115V
2531604448005Connecting Cable White L=95 MM
2541604448006Connecting Cable White L=40 MM
2552914201508Torx Oval-Head Screw
3041601008003Insulating Plate
43608601004Washer
492910141136Hex Socket Head Cap Screw DIN 912-M 4X35-8.8
53606110006Eccentric Shaft
650160202509TAuxiliary Handle
654/102605411046Dust Bag
654/202605702009Fitting
654/301610210075O-Ring 20,0X1,5 MM
7063607031211Driver Disc
7512608601026Backing Pad
83605132047Handle Cover
8033607031209Assembly Of Service Parts
8101607014116Carbon-Brush Set
8101607014128Carbon Brush
8131607000253Push-Button Black
8211605806480Gear Housing
8281607000938Assembly Of Service Parts
8301604010259Armature With Fan 230-240V
8301604010260Armature With Fan 100V
8301604010261Armature With Fan 115-120V
8301604010262Armature With Fan 240V
8351607000227Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F
888160111A3H3Nameplate
93600290033Tolerance Ring
