Bosch GEX 125-1 AE

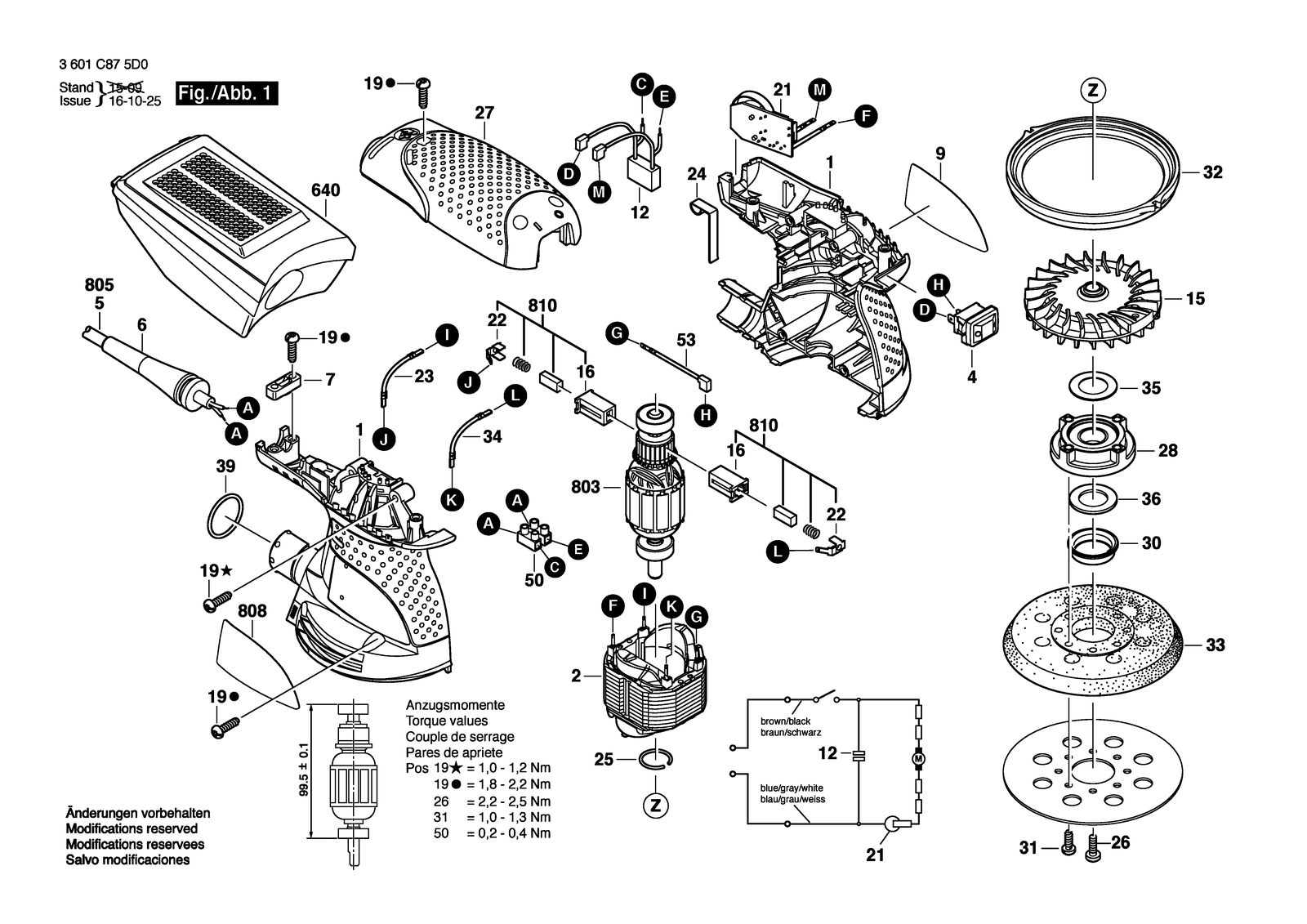

Bosch GEX 125-1 AE random orbital sander: exploded parts diagram, 1 sheet, 77 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GEX 125-1 AE: 77 positions on 1 sheet
Bosch GEX 125-1 AE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609100613 | Housing |
| 1 | 2609100539 | Housing |
| 12 | 2609120298 | Suppression Filter |
| 12 | 2609120282 | Suppression Filter |
| 15 | 2609110637 | Fan |
| 15 | 2609110637 | Fan |
| 16 | 2610320548 | Brush Holder |
| 16 | 2610320548 | Brush Holder |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2609120299 | Stator 230V |
| 2 | 2609120195 | Stator 120V |
| 2 | 2609120299 | Stator 230V |
| 21 | 2609120266 | Speed governor |
| 21 | 2609120268 | Speed governor |
| 21 | 2609120335 | Speed governor |
| 22 | 2610329896 | Connecting terminal |
| 22 | 2610329896 | Connecting terminal |
| 23 | 2609120396 | Connecting Cable |
| 23 | 2609120396 | Connecting Cable |
| 24 | 2601329043 | Contact Strap |
| 24 | 2601329043 | Contact Strap |
| 25 | 2916540005 | Retaining ring DIN 7993-A8 |
| 25 | 2916540005 | Retaining ring DIN 7993-A8 |
| 26 | 2610918116 | Torx Oval-Head Screw |
| 26 | 2610918116 | Torx Oval-Head Screw |
| 27 | 2609100616 | Housing Cover |
| 27 | 2609100538 | Housing Cover |
| 28 | 2609100862 | Bearing Flange |
| 28 | 2609100862 | Bearing Flange |
| 30 | 2609100633 | Cover |
| 30 | 2609100633 | Cover |
| 31 | 2610915161 | Screw |
| 31 | 2610915161 | Screw |
| 32 | 2609170077 | Friction Ring |
| 32 | 2609170077 | Friction Ring |
| 33 | 1600A01CU1 | Rubber Backing Pad |
| 33 | 1600A01CU1 | Rubber Backing Pad |
| 34 | 2609120396 | Connecting Cable |
| 34 | 2609120396 | Connecting Cable |
| 35 | 2609110724 | Washer |
| 35 | 2609110724 | Washer |
| 36 | 2609170084 | Felt |
| 36 | 2609170084 | Felt |
| 39 | 1610210045 | O-Ring 23,0X3,0 MM |
| 39 | 1610210045 | O-Ring 23,0X3,0 MM |
| 4 | 1607200190 | Switch |
| 4 | 1607200190 | Switch |
| 5 | 1604460182 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460182 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460235 | Power supply cord ARG 2,7M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460227 | Power supply cord SAM 2,65M 2 X 082MM SJ 18/2 |
| 5 | 2604460281 | Power supply cord I / BR 2,65M 2 X 1,0MM H05VV-F |
| 50 | 2610910009 | Connection Block |
| 50 | 2610910009 | Connection Block |
| 53 | 2609120284 | Connecting Cable |
| 53 | 2609120284 | Connecting Cable |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 640 | 2609199176 | Dust container |
| 640 | 2609199176 | Dust container |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 803 | 2609199164 | Armature 230V |
| 803 | 2609199164 | Armature 230V |
| 803 | 2609199166 | Armature 120V |
| 808 | 2609131546 | Nameplate |
| 808 | 2609131535 | Nameplate |
| 808 | 2609131540 | Type Label |
| 808 | 2609131541 | Type Label |
| 808 | 2609131542 | Type Label |
| 808 | 2609131543 | Type Label |
| 810 | 2609120199 | Carbon-Brush Set |
| 810 | 2609120199 | Carbon-Brush Set |
| 9 | 2609131501 | Manufacturer's nameplate GEX 125-1 A |
| 9 | 2609131502 | Manufacturer's nameplate GEX 125-1 Ae |
