Bosch GEX 125-1 AE

Bosch GEX 125-1 AE random orbital sander: exploded parts diagram, 1 sheet, 94 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GEX 125-1 AE: 94 positions on 1 sheet

Bosch GEX 125-1 AE parts list (1 sheet)

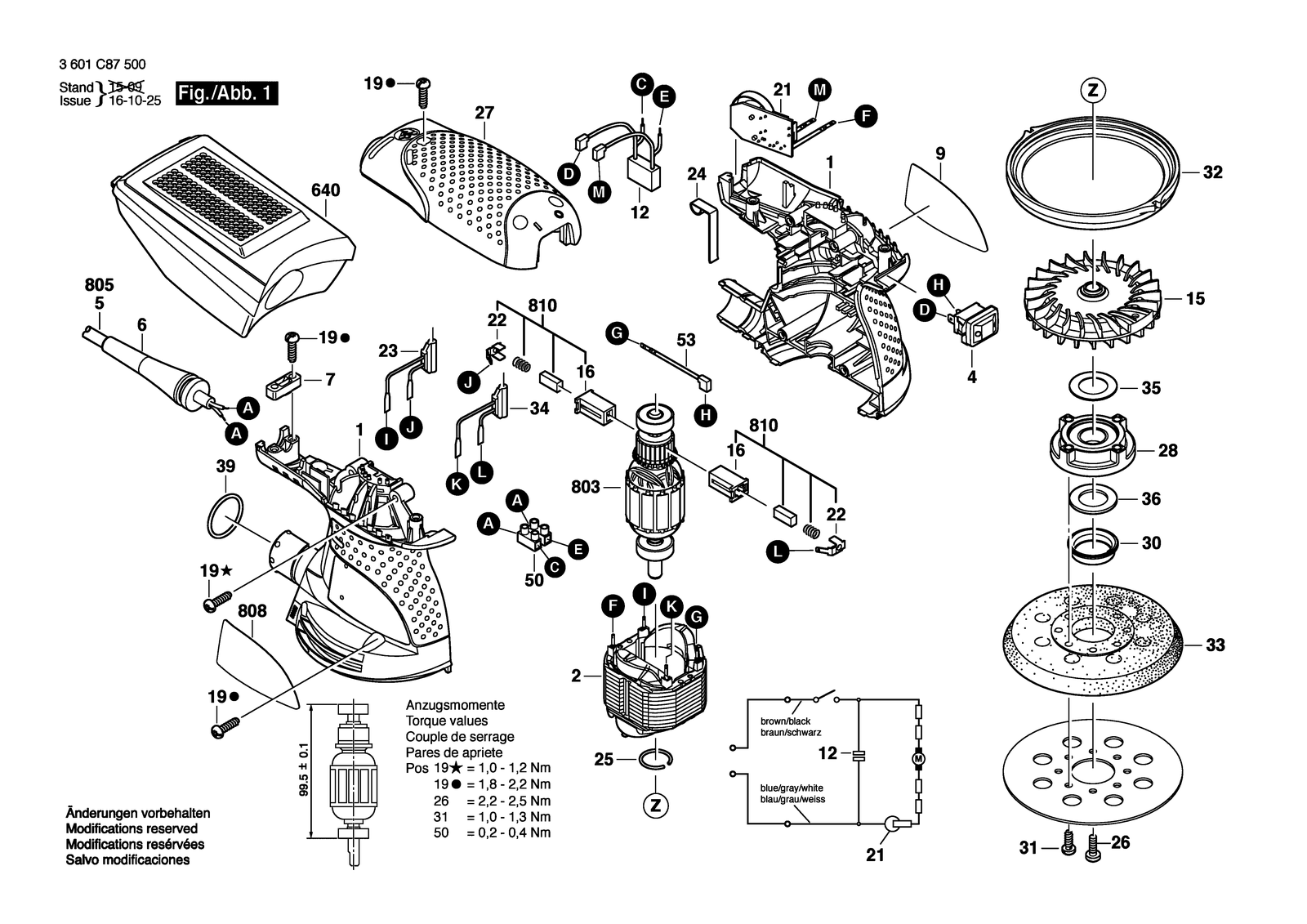

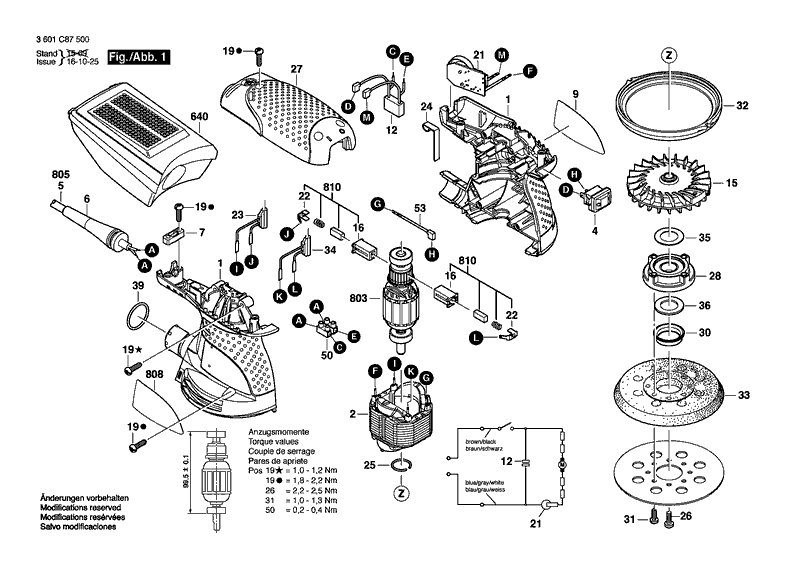

Bosch GEX 125-1 AE parts diagram, sheet 1
No.Part numberPart name
12609100613Housing
12609100539Housing
122609120298Suppression Filter
122609120282Suppression Filter
152609110637Fan
152609110637Fan
162610320548Brush Holder
162610320548Brush Holder
192603490022Screw 4X16
192603490022Screw 4X16
22609120299Stator 230V
21619P18225Field
22609120195Stator 120V
22609120299Stator 230V
212609120266Speed governor
212609120268Speed governor
212609120269Speed governor
212609120335Speed governor
222610329896Connecting terminal
222610329896Connecting terminal
232609120290Suppression Filter
232609120290Suppression Filter
242601329043Contact Strap
242601329043Contact Strap
252916540005Retaining ring DIN 7993-A8
252916540005Retaining ring DIN 7993-A8
262610918116Torx Oval-Head Screw
262610918116Torx Oval-Head Screw
272609100616Housing Cover
272609100538Housing Cover
282609100862Bearing Flange
282609100862Bearing Flange
302609100633Cover
302609100633Cover
312610915161Screw
312610915161Screw
322609170077Friction Ring
322609170077Friction Ring
331600A01CU1Rubber Backing Pad
331600A01CU1Rubber Backing Pad
342609120291Suppression Filter
342609120291Suppression Filter
352609110724Washer
352609110724Washer
362609170084Felt
362609170084Felt
391610210045O-Ring 23,0X3,0 MM
391610210045O-Ring 23,0X3,0 MM
41607200190Switch
41607200190Switch
52609120103Power supply cord CN 2,65M 2 X 0,75MM H05VV-F
51604460185Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F
51604460317Power supply cord J 2,5M 2 X 0,75MM Vct F
51604460400Power supply cord CH 4,15M 2 X 1,0MM H05 Rn-F
52604460227Power supply cord SAM 2,65M 2 X 082MM SJ 18/2
52604460281Power supply cord I / BR 2,65M 2 X 1,0MM H05VV-F
52604460295Power supply cord AUS 2,6M 2 X 0,75MM H05 Vv-F
52609120103Power supply cord CN 2,65M 2 X 0,75MM H05VV-F
52609120275Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F
502610910009Connection Block
502610910009Connection Block
532609120284Connecting Cable
532609120284Connecting Cable
62600703017Grommet Ø6,4-Ø7,2X76 MM
62600703017Grommet Ø6,4-Ø7,2X76 MM
62600703018Grommet Ø7,3-Ø8,6X76 MM
6402609199176Dust container
6402609199176Dust container
72601035001Cable Clip
71611035005Cable Clip
8032609199164Armature 230V
8032609199164Armature 230V
8032609199165Armature 100V
8032609199166Armature 120V
8051607000387Power supply cord CN 2,65M 2 X 0,75MM H05 W-f
8051607000386Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F
8051607000387Power supply cord CN 2,65M 2 X 0,75MM H05 W-f
8082609131544Nameplate
8082609131545Nameplate
8081600A00Y9YNameplate
8081600A00Y9ZNameplate
8081600A00YA2Nameplate
8081600A00YA3Nameplate
8081600A00YA4Nameplate
8081600A00YA6Nameplate
8082609131530Nameplate
8082609131531Nameplate
8082609131536Nameplate
8082609131538Nameplate
8082609131539Nameplate
8102609120199Carbon-Brush Set
8102609120199Carbon-Brush Set
92609131501Manufacturer's nameplate GEX 125-1 A
92609131502Manufacturer's nameplate GEX 125-1 Ae
