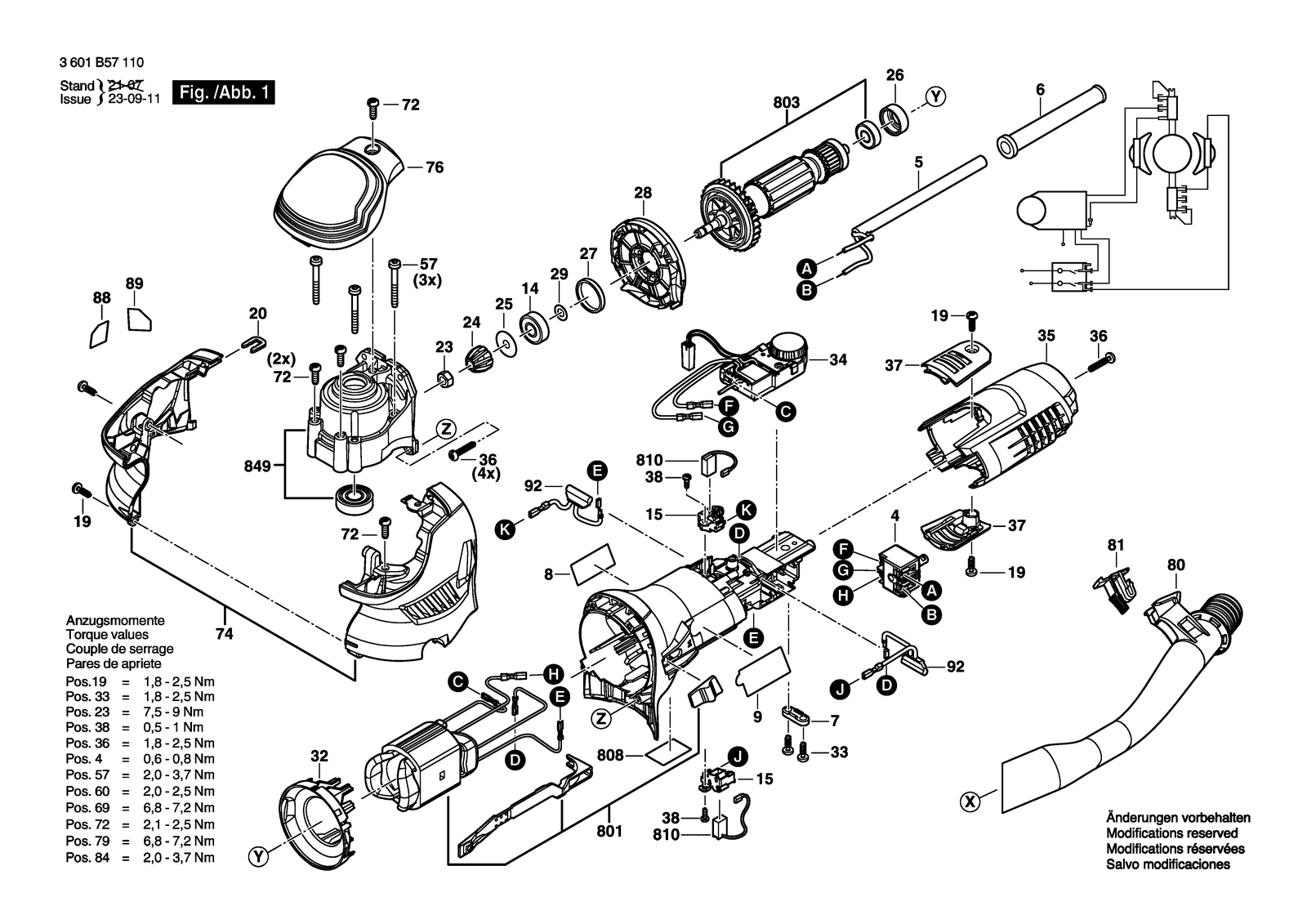

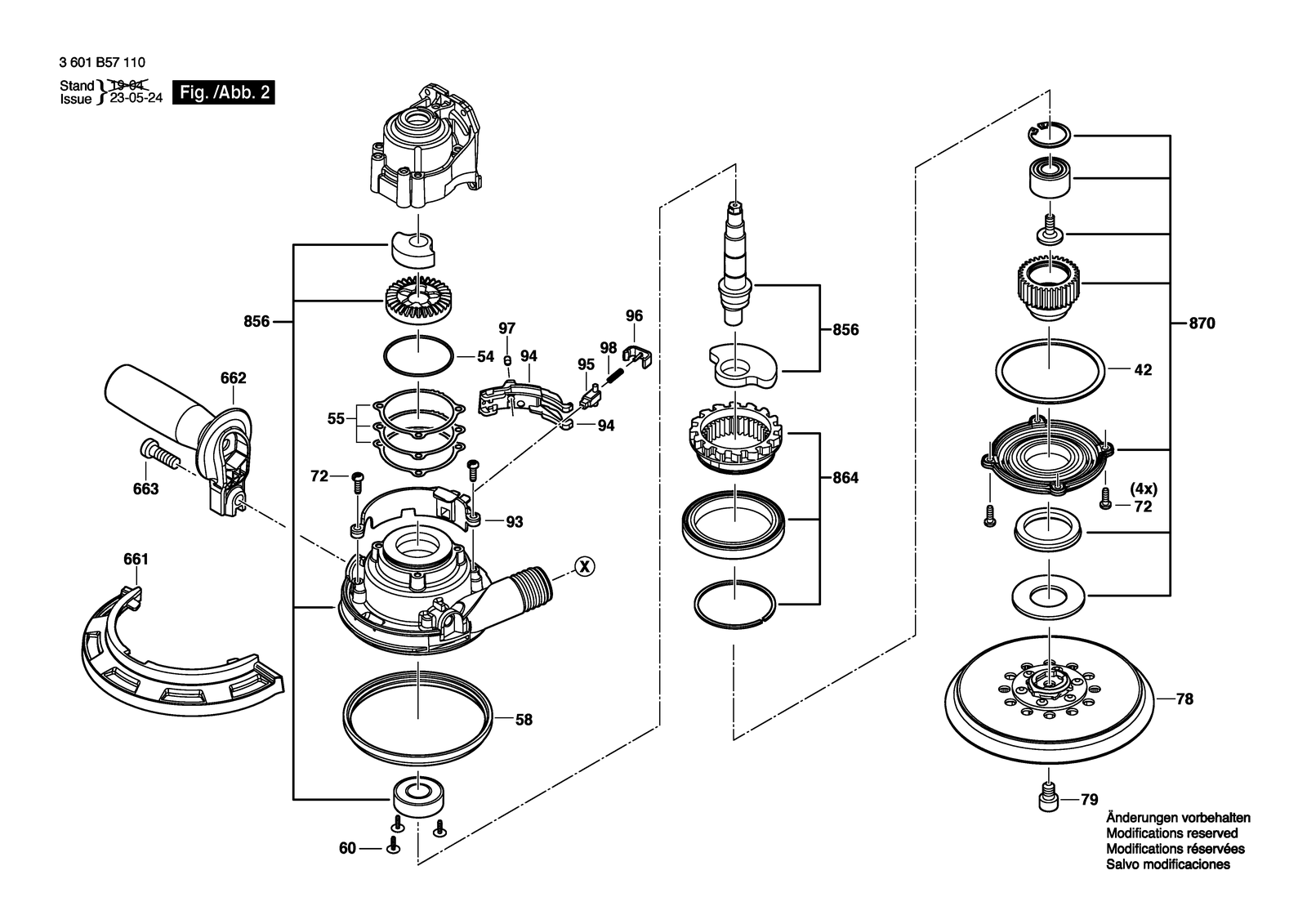

Bosch GET 75-6 random orbital sander: exploded parts diagram, 2 sheets, 59 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GET 75-6: 59 positions on 2 sheets
Bosch GET 75-6 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 14 | 1619P13103 | Groove ball bearing |
| 15 | 2604337120 | Brush Holder |
| 19 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 20 | 2609004706 | Clip |
| 23 | 2603300003 | Hex Nut Lefthand Threads M 6 |
| 24 | 2609110149 | Pinion |
| 25 | 1600100033 | Cover Disc |
| 26 | 1600A004Z5 | Rubber Ring |
| 27 | 1600206025 | Rubber Ring |
| 28 | 2606610147 | Air Distributor |
| 29 | 1619P00987 | Washer |
| 32 | 1619P02818 | Air-Deflector Ring |
| 33 | 2603490022 | Screw 4X16 |
| 34 | 16072335CP | Speed governor |
| 35 | 2605132083 | Housing Cover |
| 36 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 37 | 1619P02828 | Brush-Cover |
| 38 | 2603490016 | Torx Oval-Head Screw 3X8 |
| 4 | 2607200700 | Switch |
| 42 | 2600101131 | Washer |
| 5 | 1604460276 | Power supply cord Usa/cdn 4,15M 2 X 082MM SJ 18/2 |
| 54 | 2600210061 | O-Ring |
| 55 | 1600A00S5P | Shim Thick 0,1 MM |
| 55 | 1600A00S5R | Shim Thick 0,2 MM |
| 55 | 1600A00S5S | Shim Thick 0,3 MM |
| 57 | 1603430044 | Screw |
| 58 | 2600206033 | Friction Ring |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 60 | 1600A00RD6 | Special Screw |
| 661 | 2605191326 | Corner Protection |
| 662 | 2602025213 | Auxiliary Handle |
| 663 | 1600A015G7 | Hex Socket Head Cap Screw |
| 7 | 2601035004 | Cable Clip |
| 72 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 74 | 2605105219 | Housing Section |
| 76 | 2602026214 | Cap-Handle |
| 78 | 2608614075 | Backing Pad Ø150 |
| 79 | 2910131238 | Hex Socket Head Cap Screw DIN 7984-M8X16-8.8 |
| 8 | 160111C2JV | Warning Plate |
| 80 | 2605730079 | Suction Socket |
| 801 | 1607000DD4 | Housing Assembly |
| 803 | 1607000DD6 | Armature assembly 100-115V |
| 808 | 160111A5UJ | Nameplate |
| 81 | 2602033901 | Link Guide |
| 810 | 1619P02870 | Carbon-Brush Set |
| 849 | 1607000DC3 | Housing Assembly |
| 856 | 1607000DC4 | Suction Hood |
| 864 | 1607000DC5 | Gear |
| 870 | 1607000DC6 | Carrier |
| 88 | 160111C2K3 | Sticker |
| 89 | 160111C2K4 | Sticker |
| 9 | 160111C2R7 | Manufacturer's nameplate GET75-6 |
| 92 | 2604465116 | Suppressor Box Entstörglied Box |
| 93 | 2602033022 | Guide |
| 94 | 2601990060 | Pusher |
| 95 | 2603102014 | Detent Pin |
| 96 | 2605132082 | Cover |
| 97 | 2600590006 | Ratchet Cap |
| 98 | 2609996608 | Compression Spring |
