Bosch GEN 230V
Bosch GEN 230V power pack: exploded parts diagram, 2 sheets, 35 positions. Spare parts with part numbers, availability and prices.
—

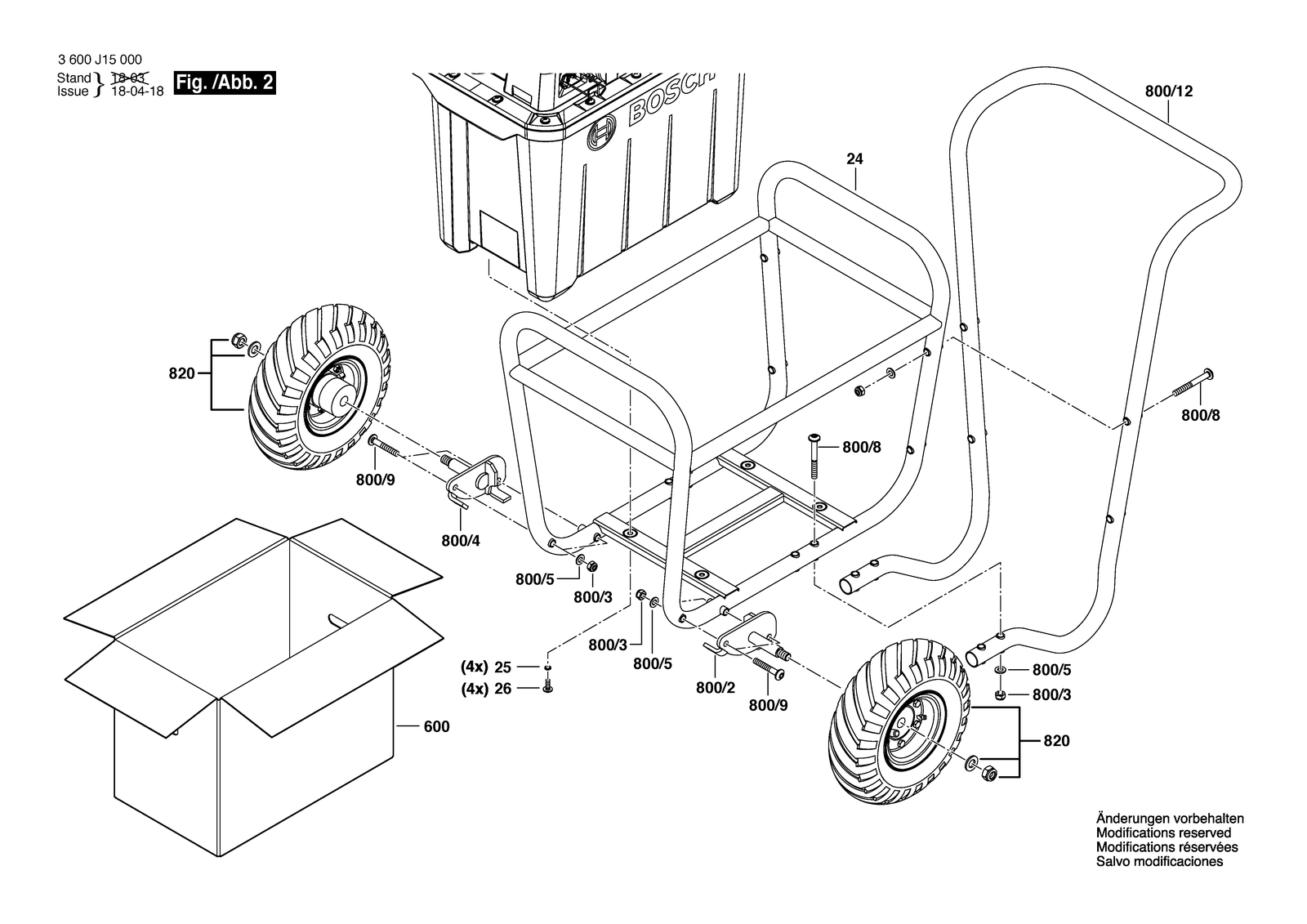

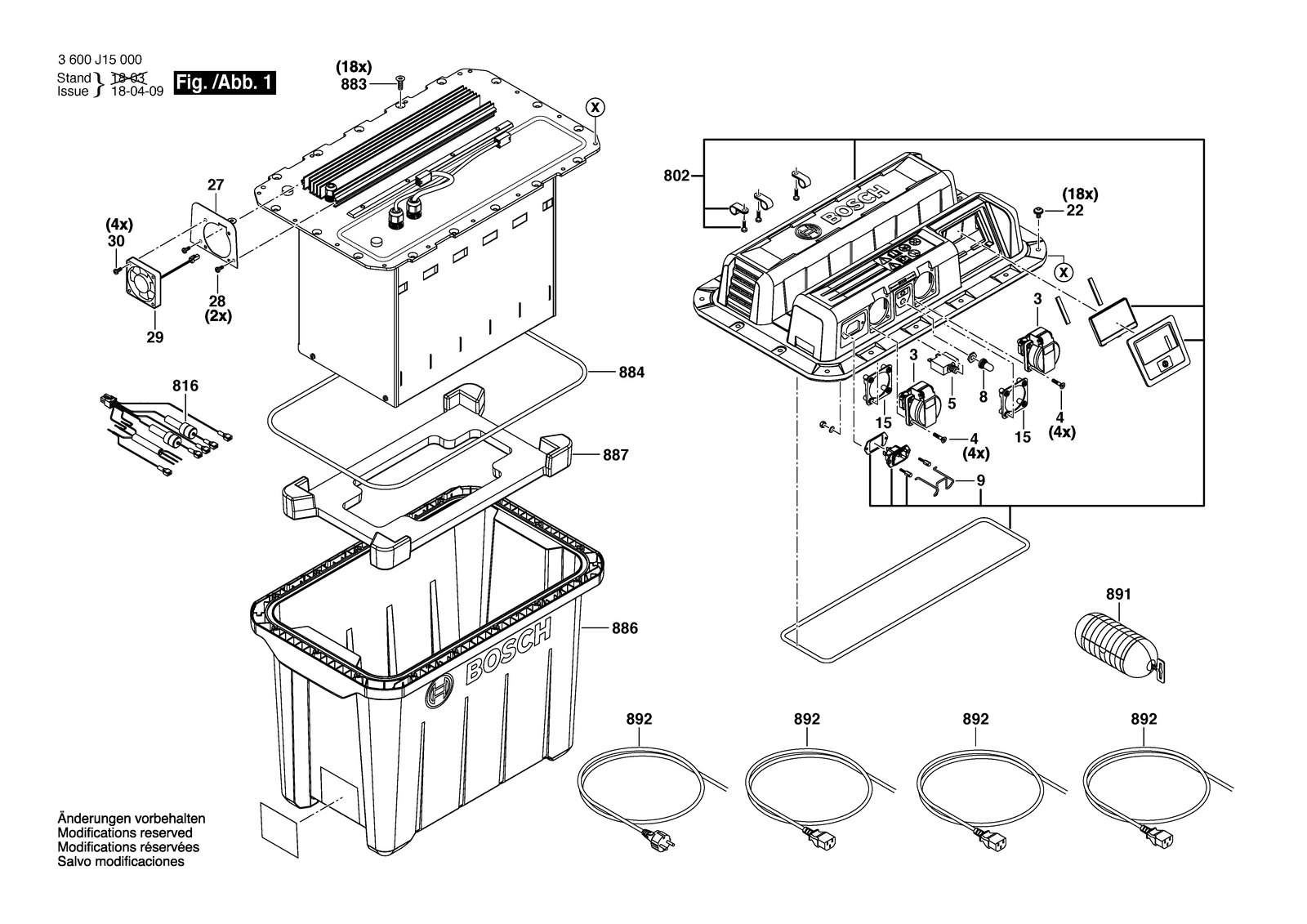

Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GEN 230V: 35 positions on 2 sheets
Bosch GEN 230V parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 15 | F016F04762 | Clamping Piece |
| 22 | F016F04768 | Screw |
| 24 | F016L77167 | Frame |
| 25 | F016L35389 | Locking washer |
| 26 | 2910149198 | Screw |
| 27 | F016F04770 | Mounting Bracket |
| 28 | 1603435068 | Thread-forming tap. Screw DIN 7500, M4X10, SR10.2 |
| 29 | F016L76915 | Fan |
| 3 | F016F04761 | Socket |
| 3 | F016L77359 | Socket |
| 30 | 1619P02848 | Torx Oval-Head Screw 4X12 |
| 4 | F016L77158 | Screw |
| 5 | F016F04766 | Circuit breaker |
| 600 | F016F04936 | Packaging |
| 8 | F016L77155 | Switch Cover |
| 800/12 | F016L77191 | Handle Bar |
| 800/2 | F016L77220 | Axle |
| 800/3 | F016L77022 | Nut M8 |
| 800/4 | F016L77221 | Axle |
| 800/5 | F016L77186 | Washer |
| 800/8 | F016L77187 | Screw |
| 800/9 | F016L77226 | Screw |
| 802 | F016L76901 | Console |
| 816 | F016F04765 | Fuse |
| 820 | F016F04935 | Wheel Set |
| 883 | F016L77229 | Screw |
| 884 | F016L77157 | Gasket |
| 886 | F016L76928 | Housing |
| 887 | F016L77349 | Foam Panel |
| 891 | F016L77446 | Splash Deflector |
| 892 | F016L77442 | Cable EU |
| 892 | F016L77443 | Cable Ch |
| 892 | F016L77444 | Cable UK |
| 892 | F016L77445 | Cable UK |
| 9 | F016F05067 | Clip |
