Bosch GEB 1000 CE

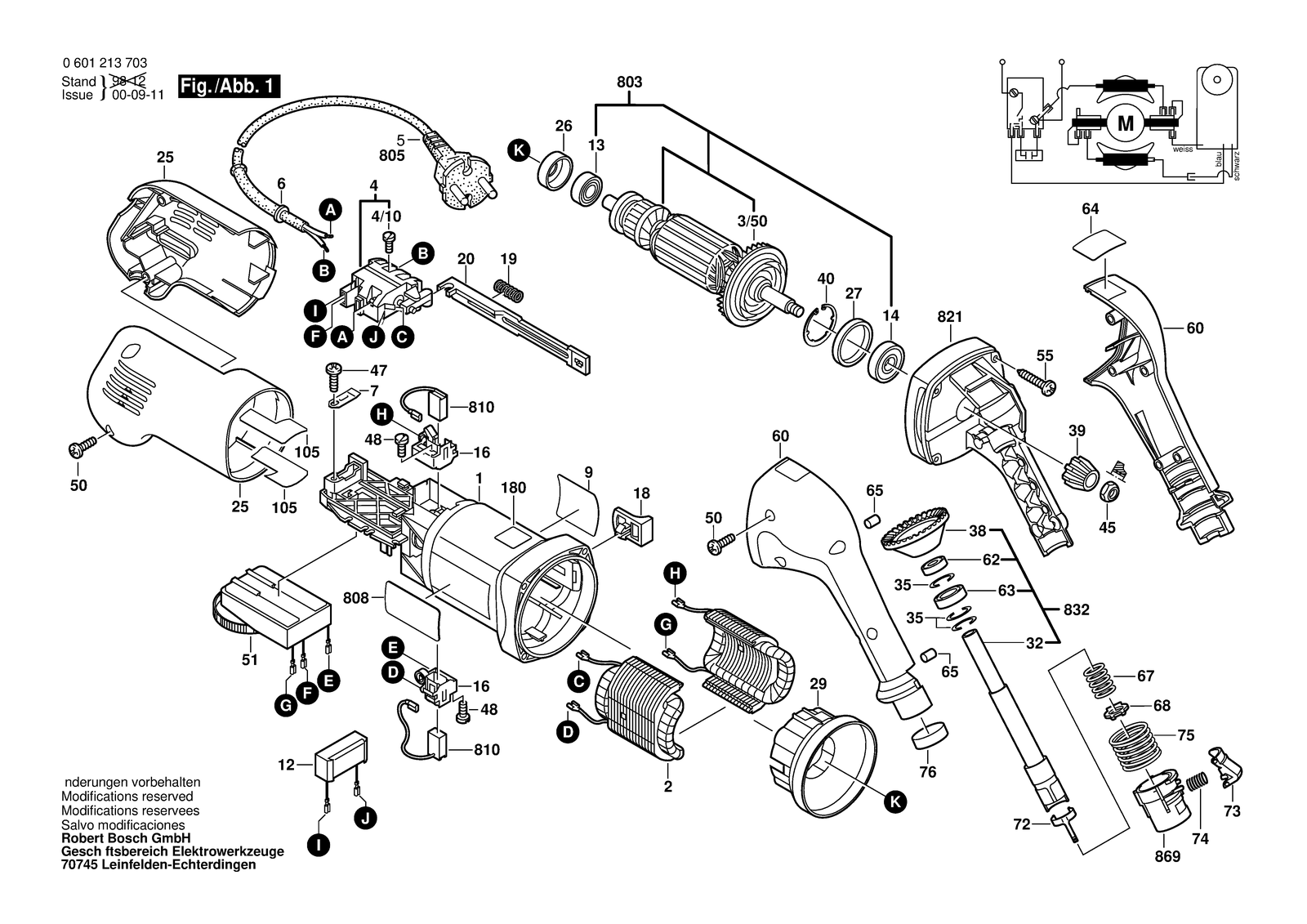

Bosch GEB 1000 CE electro-brush: exploded parts diagram, 1 sheet, 66 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GEB 1000 CE: 66 positions on 1 sheet
Bosch GEB 1000 CE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108213 | Motor Housing Blue |
| 105 | 1601008006 | Insulating Plate |
| 12 | 1607328042 | Suppression Filter |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1600905016 | Groove ball bearing 8X22X7 |
| 16 | 1601323025 | Brush Holder |
| 18 | 1602026057 | Switch Handle Black |
| 180 | 3601119137 | Warning Plate Caution |
| 19 | 1604611026 | Compression Spring |
| 2 | 1604220311 | Field 100-120V |
| 2 | 1607000F0P | Field |
| 20 | 1602319010 | Adjusting Slide Black |
| 25 | 1605190144 | Housing Cover Blue |
| 26 | 1600502023 | Intermediate Ring |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600591025 | Air-Deflector Ring |
| 3/50 | 1606610129 | Fan |
| 32 | 2603020028 | Drive Shaft |
| 35 | 2600101088 | Shim 0,2 MM |
| 35 | 2600101089 | Shim 0,3 MM |
| 35 | 2600101090 | Shim 0,4 MM |
| 35 | 2600101091 | Shim 0,5 MM |
| 38 | 2606100064 | Crown Gear Z=36 |
| 39 | 2606333034 | Pinion Z=10 |
| 4 | 1607200086 | On-Off Switch |
| 40 | 1600119011 | Retaining clip |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 2912401018 | Tapping Screw DIN7981-ST3,9X13-C-Z |
| 48 | 2912401005 | Tapping Screw DIN7981-ST2,9X9,5C-Z |
| 5 | 1604460401 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1614460052 | Power supply cord |
| 5 | 2604460199 | Power supply cord AUS 240V 4,15M 2 X 1,0MM Pvc |
| 5 | 2604460204 | Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460244 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460250 | Power supply cord Usa/can/ SMA 4,15M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460287 | Power supply cord I/br 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 50 | 1603435061 | Tapping Screw TORX-T20 |
| 51 | 1607233128 | Speed governor 100-110V |
| 51 | 1607233129 | Speed governor 120V |
| 51 | 1607233130 | Speed governor 230-240V |
| 55 | 1603435062 | Thread-forming tap. Screw |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 60 | 1605132133 | Housing Section Blue |
| 62 | 1600900042 | Groove ball bearing |
| 63 | 1900905121 | Groove ball bearing 12X28X8 |
| 64 | 1601118792 | Warning Plate |
| 65 | 2603100056 | Damping rubber |
| 67 | 2604616009 | Compression Spring |
| 68 | 2600190089 | Conical Spring Washer |
| 7 | 1601302017 | Fastening Clamp |
| 72 | 2601290022 | Holding Spring |
| 73 | 2602319016 | Switch Slide Red |
| 74 | 2604611046 | Compression Spring |
| 75 | 2604615013 | Compression Spring |
| 76 | 2600290038 | Clamping Ring |
| 803 | 1604010640 | Armature With Fan 220-240V |
| 803 | 1604010641 | Armature With Fan 100-110V |
| 803 | 1604010642 | Armature With Fan 115-120V |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607014176 | Carbon-Brush Set |
| 821 | 1605806485 | Gear Housing |
| 832 | 1607000861 | Drive Shaft |
| 869 | 2600499053 | Actuating Element |
| 9 | 1601118791 | Manufacturer's nameplate |
