Bosch GDX 18V-210 C

Bosch GDX 18V-210 C impact wrench: exploded parts diagram, 1 sheet, 45 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDX 18V-210 C: 45 positions on 1 sheet

Bosch GDX 18V-210 C parts list (1 sheet)

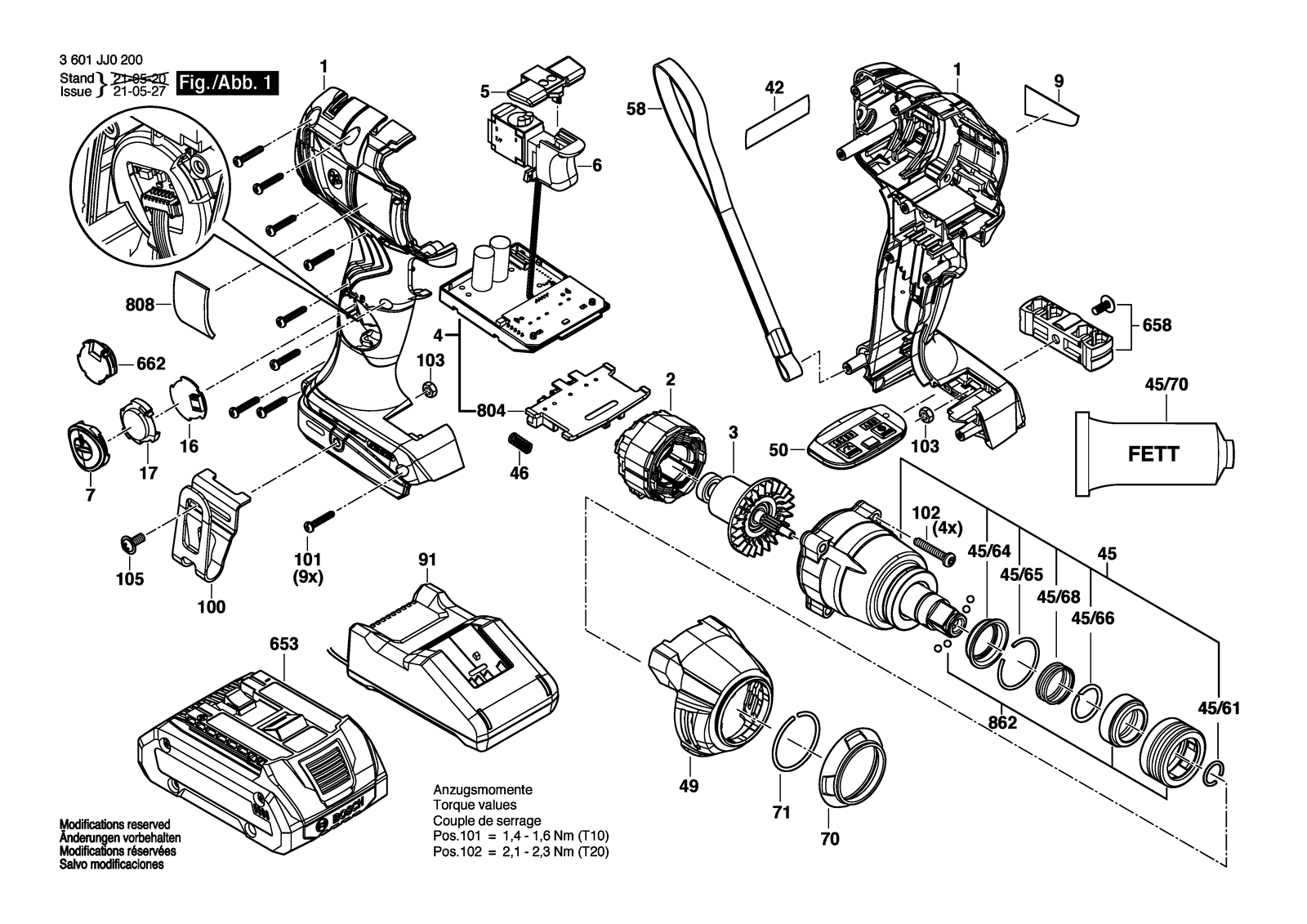

Bosch GDX 18V-210 C parts diagram, sheet 1
No.Part numberPart name
11600A0144CHousing
1002609111584Clip
1012609110201Torx Flat-Head Screw 3X16
102061880004WTorx Flat-Head Screw
1032609110835Nut
1052609110834Screw
161600A016CYElectronics Module
171600A02KY7Cover Panel
21619P15347Stator
31619P14405Rotor
416072335MKElectronics Module
42160111C441Sticker
451600A011PNGear Box
451600A01PG3Gear Box
45/610618800045Retaining ring
45/641600A00NR9Holding Jacket
45/651604601032Retaining ring
45/661604601031Retaining ring
45/680618800047Compression Spring
45/701600A002NEGrease Tube 45 Ml
461609280477Compression Spring
491600A01YF5Cover
51600A01YF1Changeover Lever
501600A01Z0MSeparator
582609100301Strap
62607202501Switch
6532607226251Fast Charger EU GAL 18V-40, 230V/10,8V – 18V
6532607226253Fast Charger Gb GAL 18V-40
6532607226261Fast Charger Jp GAL 18V-40
6532607226263Fast Charger Rok GAL 18V-40
6582609199748Bit holder
6621600A013WFElectronics Module
71600A020BXCover unit
701600A01YZ3Protective Cap
711604601037Retaining ring
8041609280820Contact retainer 18V
808160111A7YVNameplate
808160111A7YYNameplate
808160111A7Z1Nameplate
8621600A01N0VSleeve assembly
9160111C3VUManufacturer's nameplate
911607A350ANBattery Pack GBA 18V 4.0AH Procore Scm
912607337069Battery Pack Bbs Mr, 18V, 5,0 AH 48 S
912607337081Battery Pack Bbs Mr-Xl, 18V, 5AH
912607337085Battery Pack Bbs Mr-Xl, 18V, 5AH Korea
