Bosch GDX 18V-1600

Bosch GDX 18V-1600 impact wrench: exploded parts diagram, 2 sheets, 32 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDX 18V-1600: 32 positions on 2 sheets

Bosch GDX 18V-1600 parts list (2 sheets)

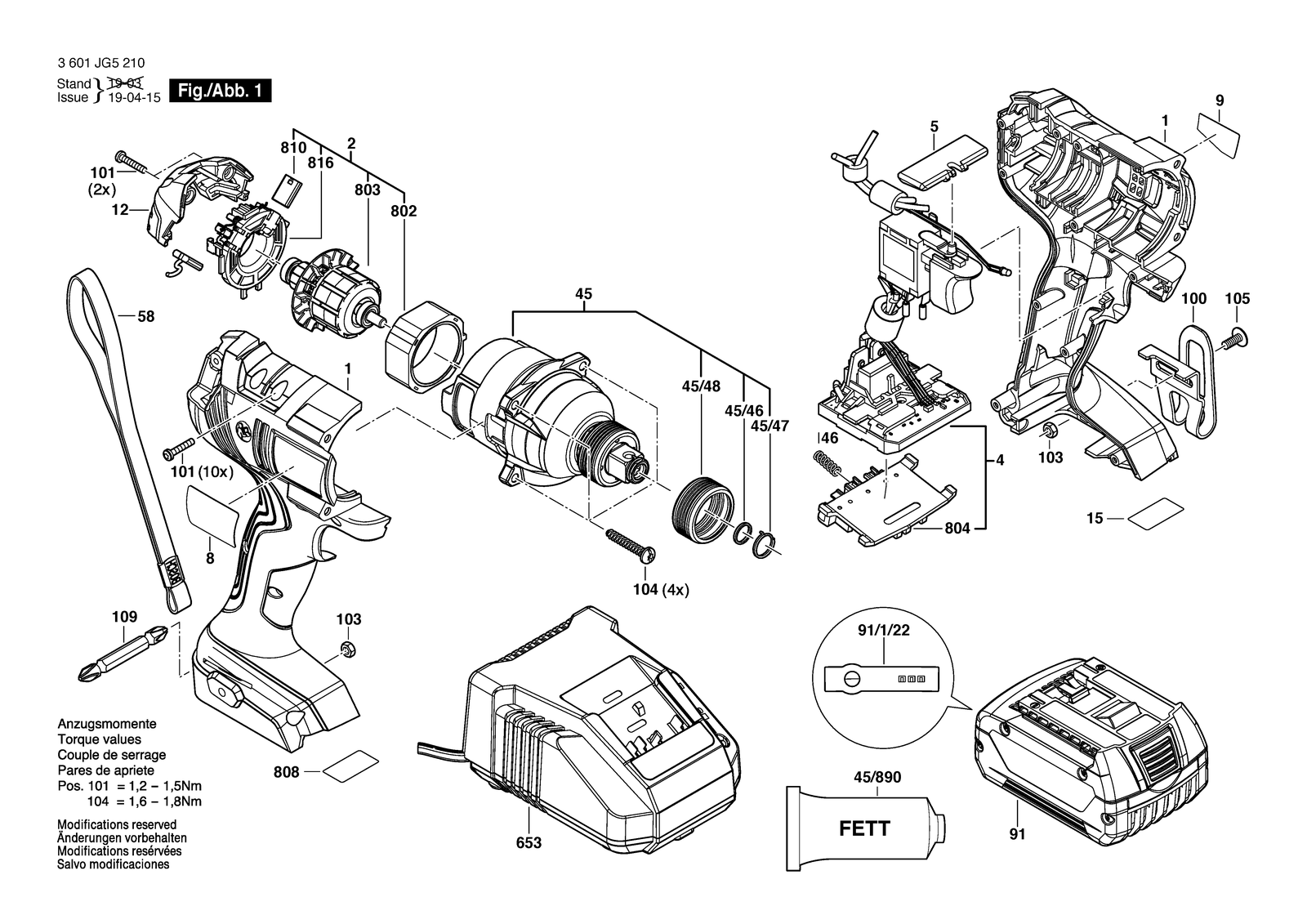

Bosch GDX 18V-1600 parts diagram, sheet 1Bosch GDX 18V-1600 parts diagram, sheet 2
No.Part numberPart name
12609101686Housing
1002609111584Clip
1012609110201Torx Flat-Head Screw 3X16
1032609110835Nut
1042603490023Torx Oval-Head Screw 4X20
1052609110834Screw
1092609110343Screwdriver Blade
122609101783Cover
152609134175Reference Plate
2160702267MDC motor
41600A0131FElectronics Module
451600A00N61Gear Box
45/462609170157Rubber Ring
45/472609111262Metal Ring
45/482609170185Sleeve
45/8901600A002NEGrease Tube 45 Ml
461609280477Compression Spring
52609100698Button
582609100301Strap
6532607225927Charger Usa BC 1880 CV 13,3-18V/120V
6532607226287Charger US GAL 18V-20 120V / 2A
81600A014AWWarning Label
8021600A003V5Stator
8031600A015UWRotor
8041609280478Contact retainer
808160111A5G0Nameplate
810160701418RCarbon-Brush Set
8161600A011KBBrush Holder
9160111C295Manufacturer's nameplate
911607A350BMBattery Pack BAT612 18V 2.0AH LI Scm
912607336819Battery Pack Usa BAT620 18V 4,0AH
91/1/222601115537Sticker
